TOP > Products > Accessories > RM-S
Status Model number Description
Available RM-SF Full-rack width tray
Available RM-SFL Full-rack width tray
Available RM-SH Harf-rack width tray
Available RM-SBP Blank panel
Show all products X

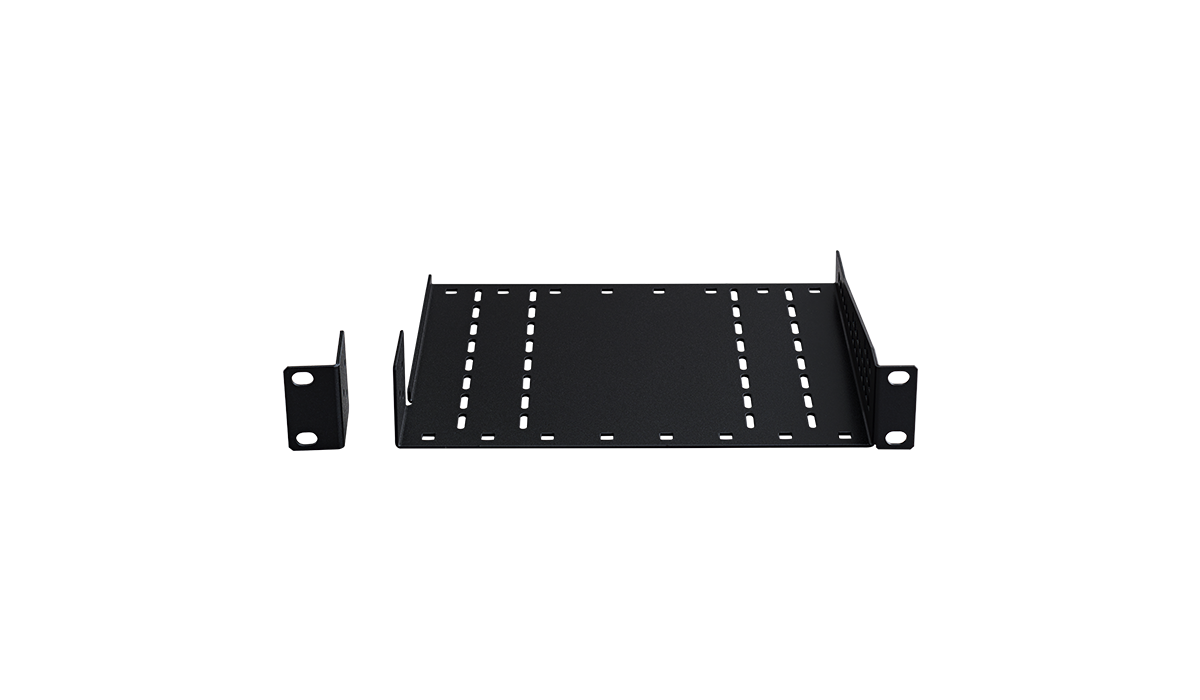

RM-SH is for combination of half-rack width and Thin type half-rack width or quarter-rack width.

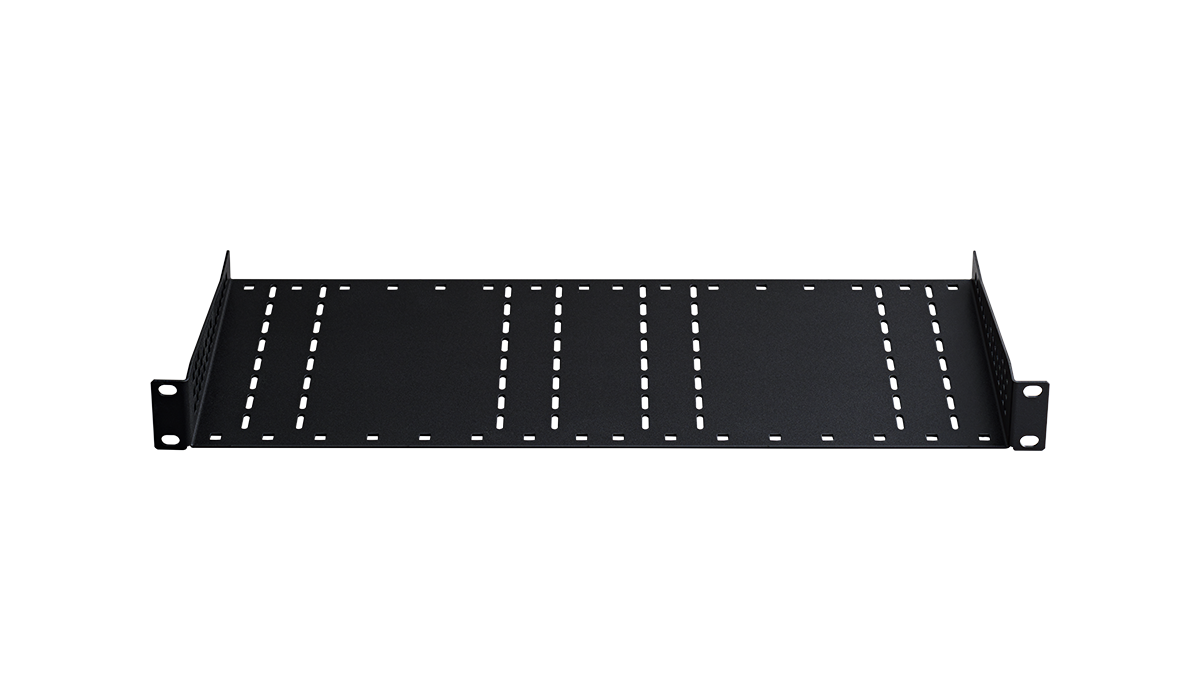

RM-SF is for 4 quarter-rack products, 2 thin type half-rack products with 7.1 in. (180 mm) depth.

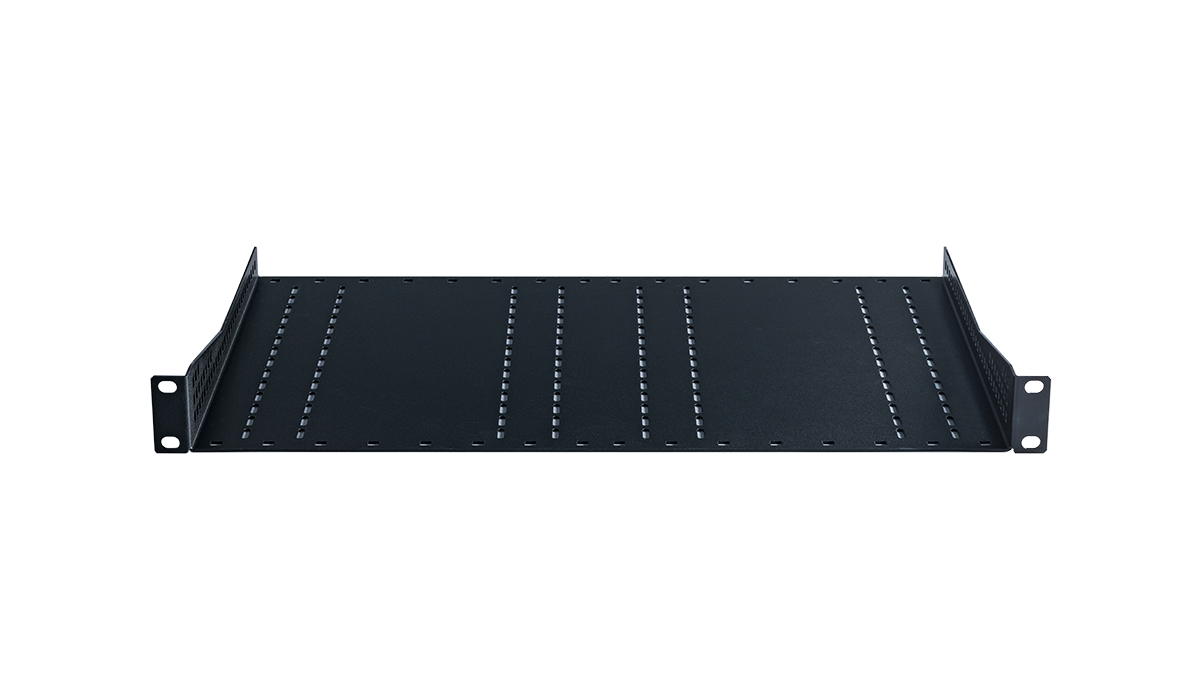

RM-SFL is for 4 quarter-rack products, 2 thin type half-rack products with 12.4 in. (315 mm) depth.

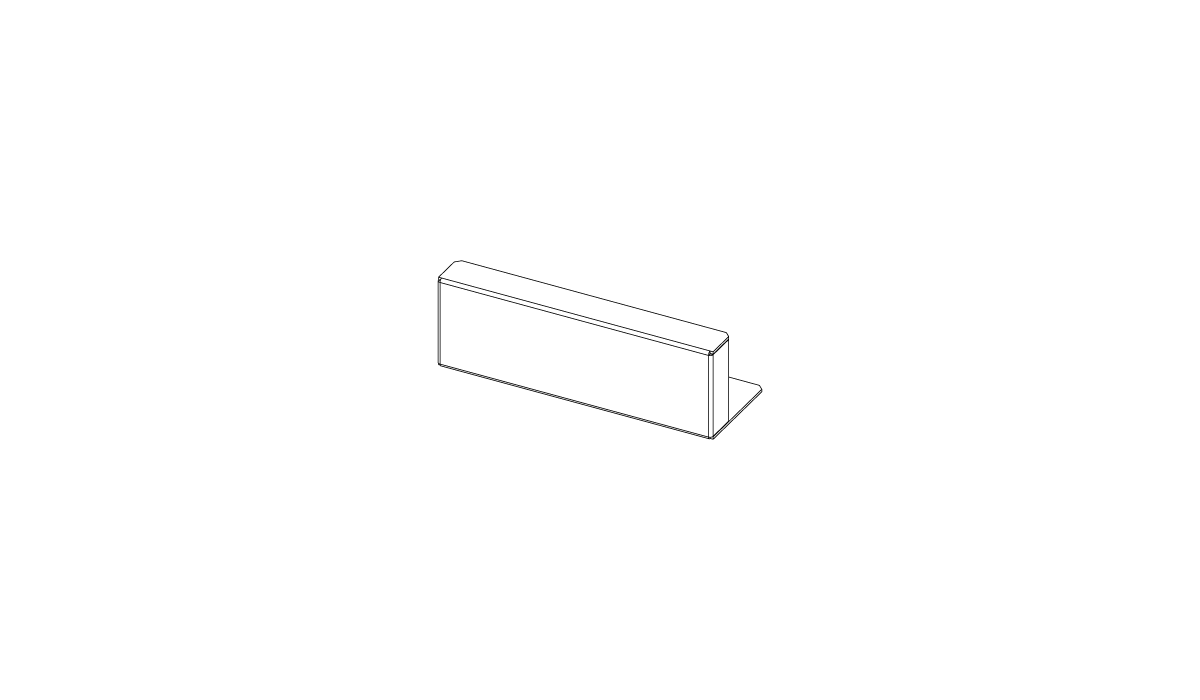

RM-SBP is quarter-rack blank panel.
Technical documents Version Size Format
User guide RM-S Ver.3.0.0 PDF
Dimensional outline drawing RM-SH 0.2 MB PDF
Dimensional outline drawing RM-SH 0.1 MB DXF
Dimensional outline drawing RM-SF 0.1 MB PDF
Dimensional outline drawing RM-SF 21.0 KB DXF
Dimensional outline drawing RM-SFL 0.1 MB PDF
Dimensional outline drawing RM-SFL 23.7 KB DXF
Dimensional outline drawing RM-SBP 0.2 MB PDF
Dimensional outline drawing RM-SBP 12.9 KB DXF
Series products
Description
RM-SH is for combination of half-rack width and Thin type half-rack width or quarter-rack width.

RM-SF is for 4 quarter-rack products, 2 thin type half-rack products with 7.1 in. (180 mm) depth.

RM-SFL is for 4 quarter-rack products, 2 thin type half-rack products with 12.4 in. (315 mm) depth.

RM-SBP is quarter-rack blank panel.
