Status Model number Description
Available RM-SV3 3U height
Available RM-SV3-BM 3U height, with brackets for HDC-H100/COS-100HD

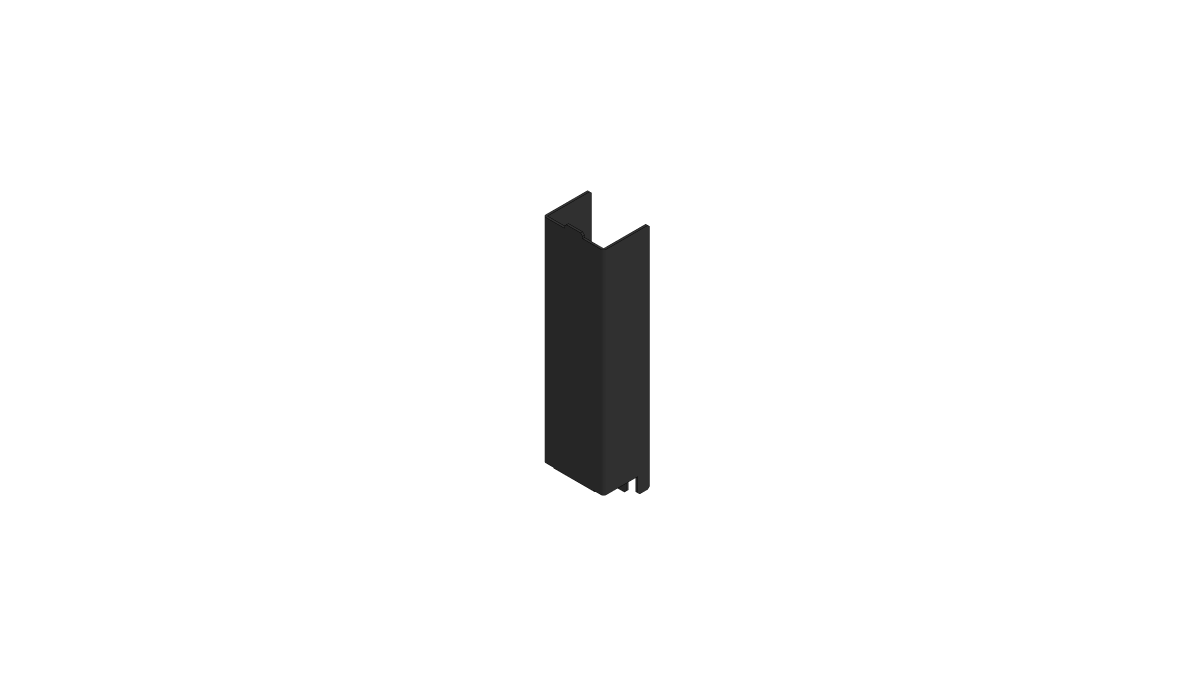

Available RM-SBP3 RM-SV3 Blank Panel

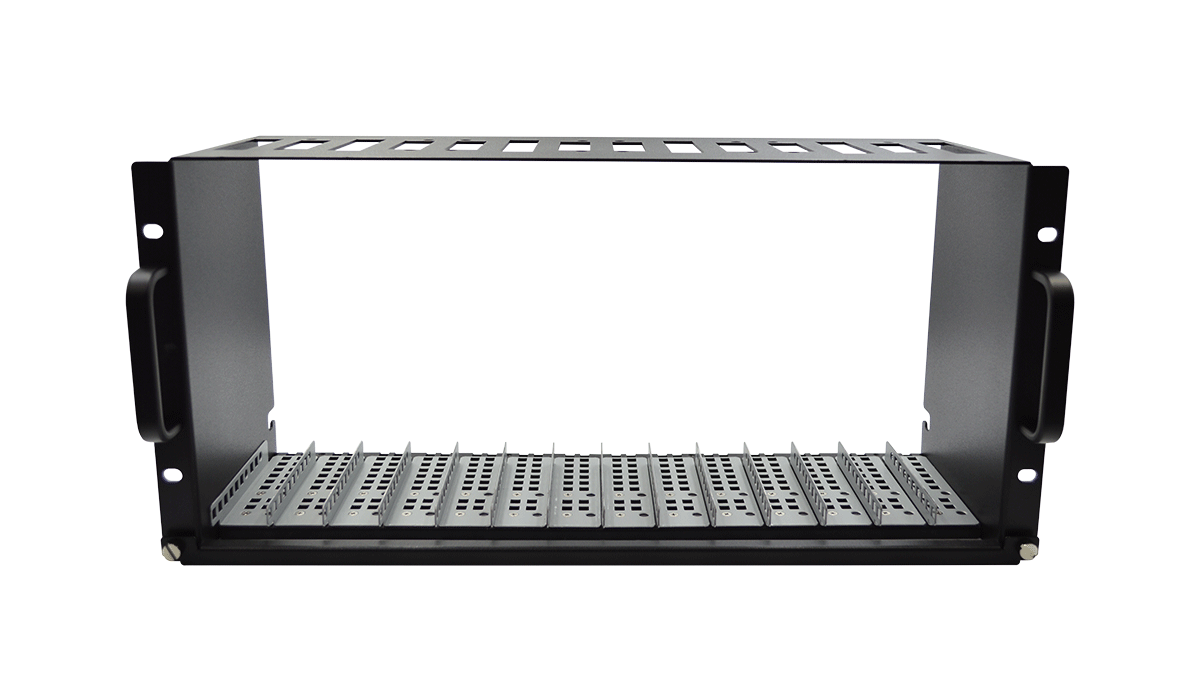

Available RM-SV5 5U height

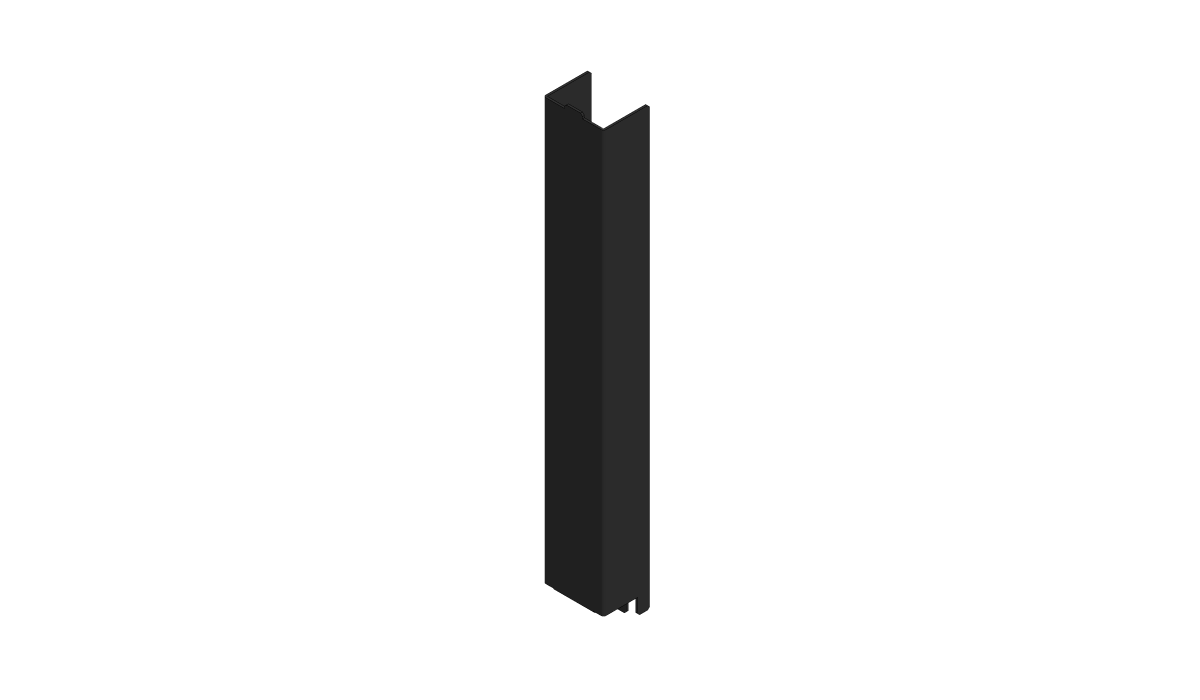

Available RM-SBP5 RM-SV5 Blank Panel
Available RM-TAB Standard bracket
Available RM-TAB-BM Bracket for HDC-H100/COS-100HD
Available RM-QSP Bracket for EIA 1/4 width products
Available RM-AP165 Rear space expansion tray
Show all products X

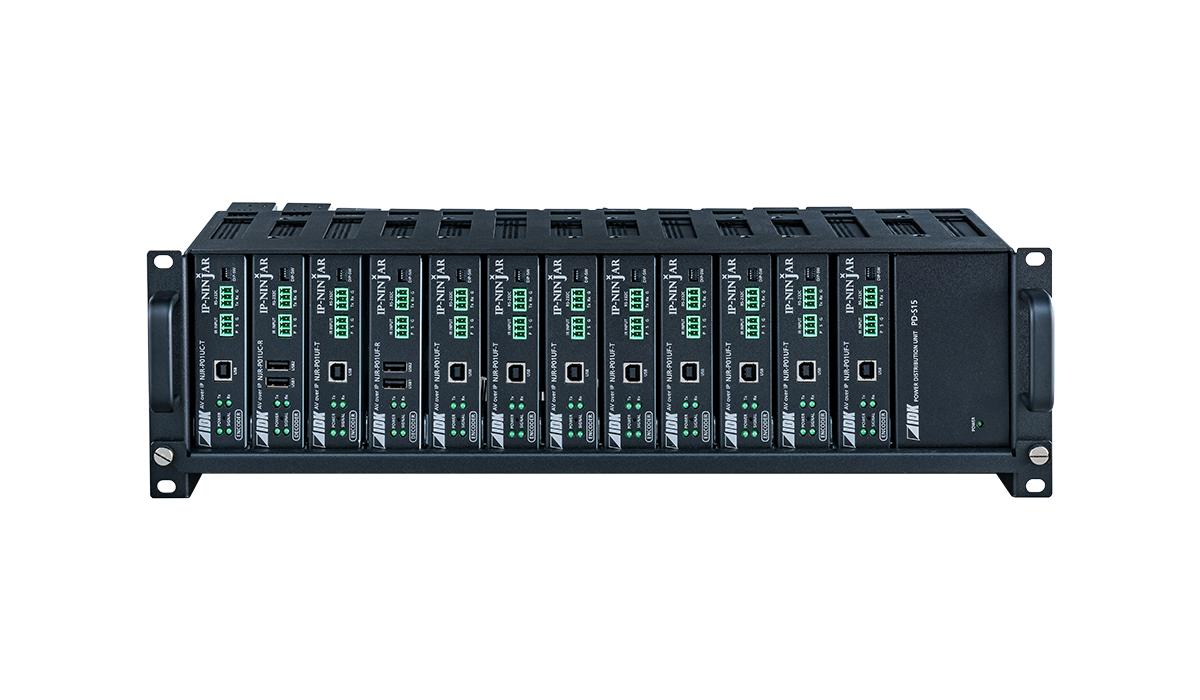

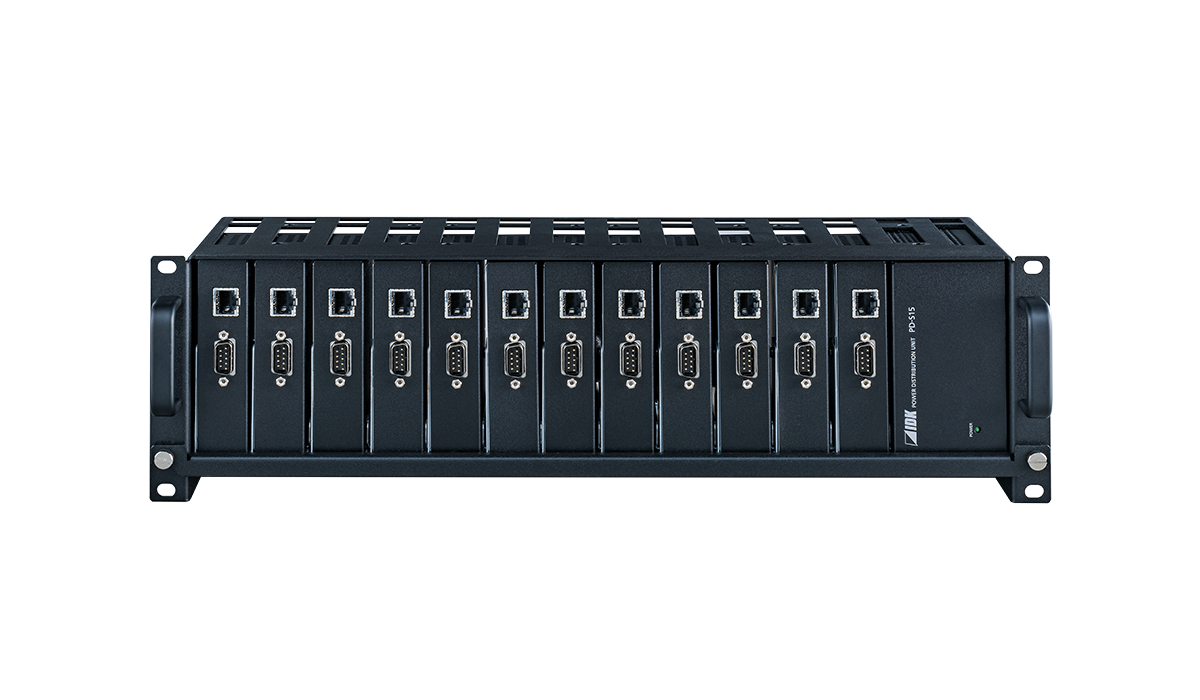

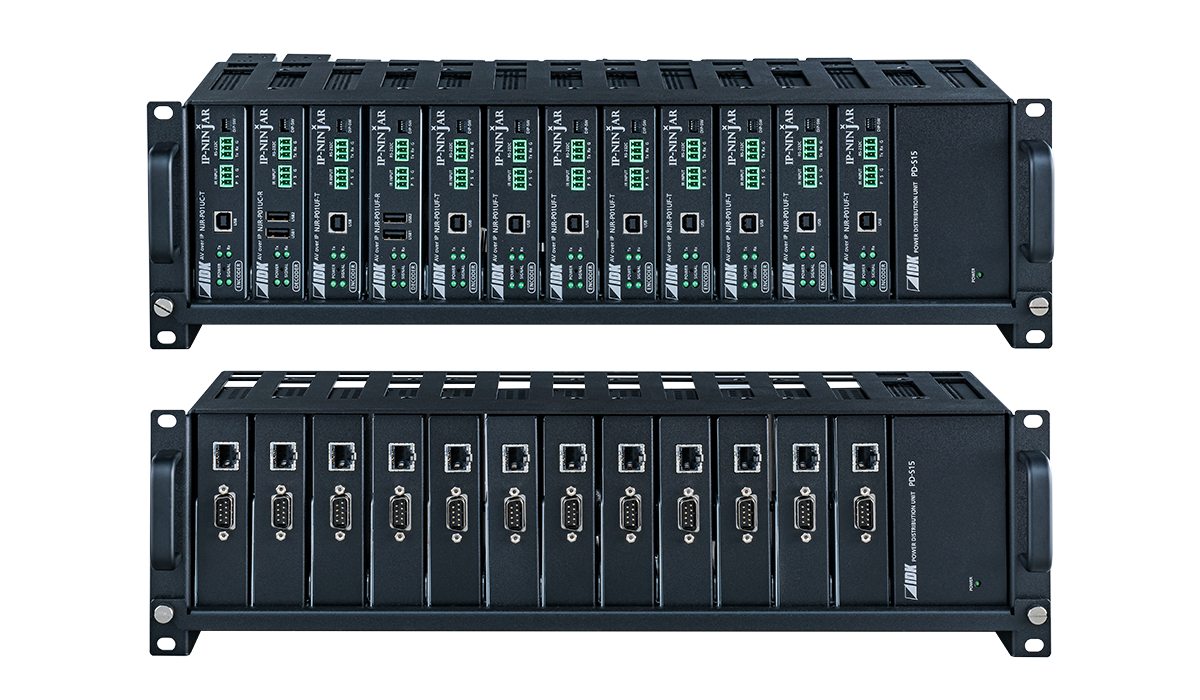

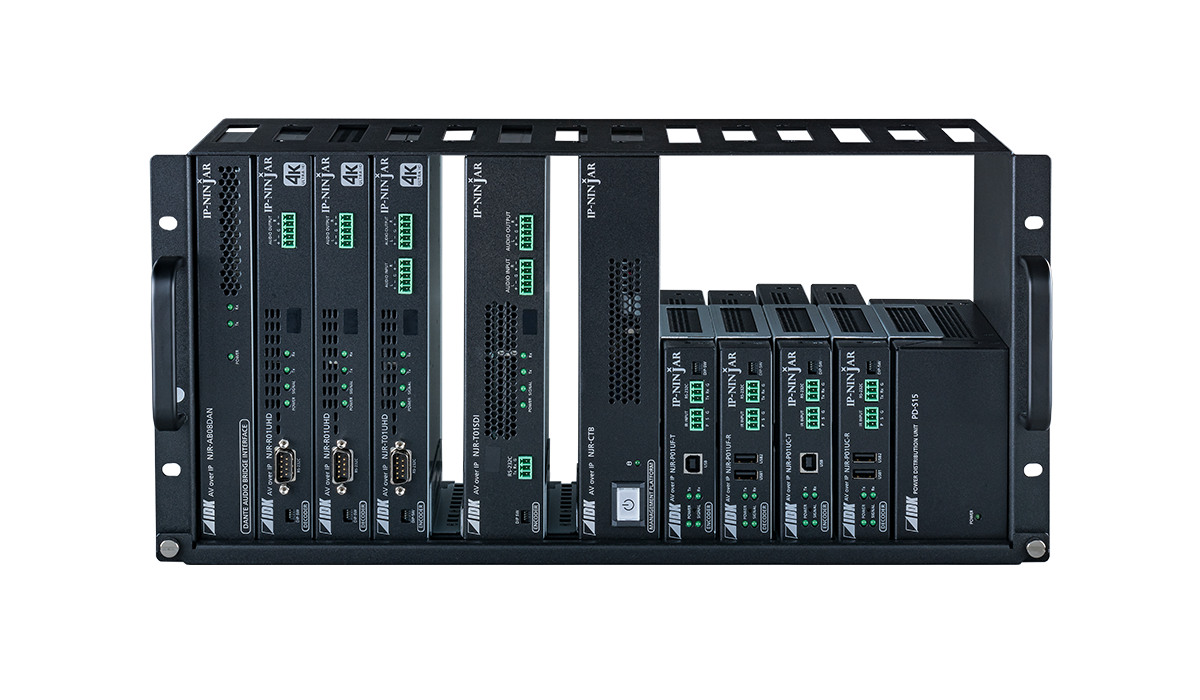

The RM-SV is a rackmount for accommodating a mix of thin type half-rack and standard half-rack units.
Up to 14 units can be mounted or removed separately.

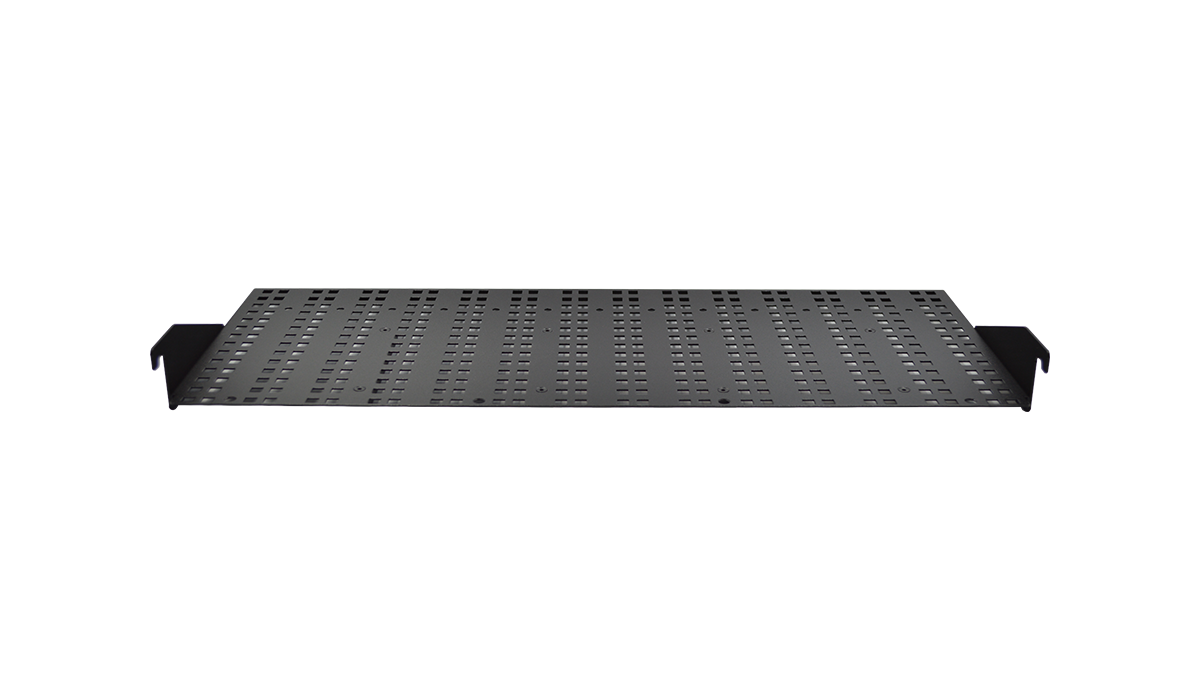

The RM-AP165 provides extra space in the rear side of the RM-SV series for placing objects by tying a zip-ties or the like to 6x6 mm square hole.
Technical documents Version Size Format
User guide RM-SV Ver.2.1.0 2.4 MB PDF
User guide RM-AP165 Ver.1.1.0 0.5 MB PDF
Dimensional outline drawing RM-SV3 0.5 MB PDF
Dimensional outline drawing RM-SV3 0.2 MB DXF
Dimensional outline drawing RM-SBP3 0.2 MB PDF
Dimensional outline drawing RM-SBP3 14.8 KB DXF
Dimensional outline drawing RM-SV5 0.6 MB PDF
Dimensional outline drawing RM-SV5 0.2 MB DXF
Dimensional outline drawing RM-SBP5 0.2 MB PDF
Dimensional outline drawing RM-SBP5 14.8 KB DXF
Dimensional outline drawing RM-TAB 0.2 MB PDF
Dimensional outline drawing RM-TAB 13.2 KB DXF
Dimensional outline drawing RM-TAB-BM 0.2 MB PDF
Dimensional outline drawing RM-TAB-BM 14.9 KB DXF
Dimensional outline drawing RM-QSP 0.6 MB PDF
Dimensional outline drawing RM-QSP 0.5 MB DXF
Dimensional outline drawing RM-AP165 1.1 MB PDF
Dimensional outline drawing RM-AP165 0.3 MB DXF
Series products
Description
The RM-SV is a rackmount for accommodating a mix of thin type half-rack and standard half-rack units.
Up to 14 units can be mounted or removed separately.

The RM-AP165 provides extra space in the rear side of the RM-SV series for placing objects by tying a zip-ties or the like to 6x6 mm square hole.
