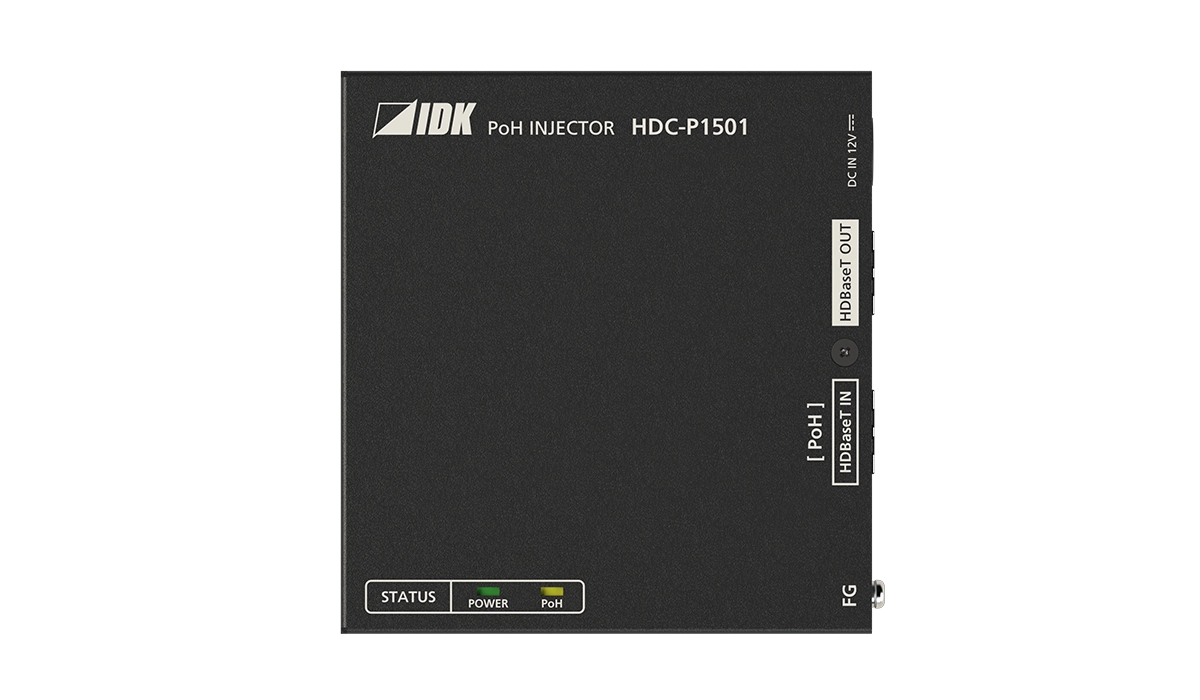

PoH Injector HDC-P1501
- PoH power injection
- Automatic status detection and remove power
- Powering the Tx
| Status | Model number | Description |
|---|---|---|
| Coming Soon | HDC-P1501 | PoH Injector |
The HDC-P1501 is a single port power injector that supplies power to a PoH (Power over HDBaseT) wall plate transmitter.
Since the injector provides power via the HDBaseT transmission line, it eliminates the need for a local power supply. The HDC-P1501 stops supplying power if PoH detects, the twisted pair cable shorts out, voltage overload, or overheating occurs.
The HDC-P1501 can be connected to a 4K@60 Wallplate HDBaseT transmitter (HDC-TH100WP).
Since the injector provides power via the HDBaseT transmission line, it eliminates the need for a local power supply. The HDC-P1501 stops supplying power if PoH detects, the twisted pair cable shorts out, voltage overload, or overheating occurs.
The HDC-P1501 can be connected to a 4K@60 Wallplate HDBaseT transmitter (HDC-TH100WP).
Description

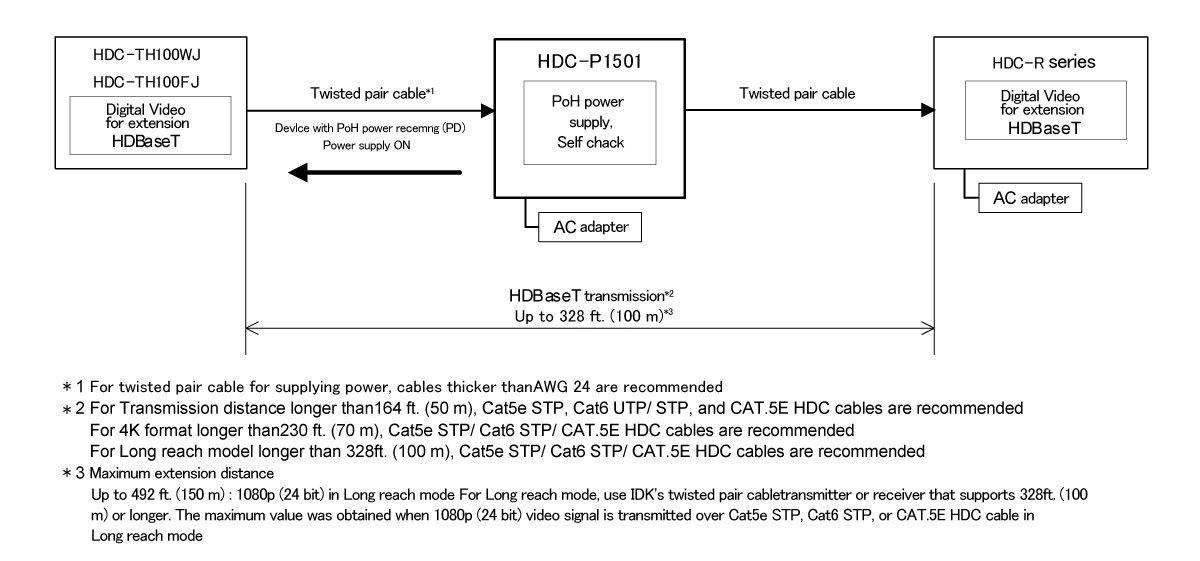

Diagrams
Series products
The HDC-P1501 is a single port power injector that supplies power to a PoH (Power over HDBaseT) wall plate transmitter.
Since the injector provides power via the HDBaseT transmission line, it eliminates the need for a local power supply. The HDC-P1501 stops supplying power if PoH detects, the twisted pair cable shorts out, voltage overload, or overheating occurs.
The HDC-P1501 can be connected to a 4K@60 Wallplate HDBaseT transmitter (HDC-TH100WP). Close
Since the injector provides power via the HDBaseT transmission line, it eliminates the need for a local power supply. The HDC-P1501 stops supplying power if PoH detects, the twisted pair cable shorts out, voltage overload, or overheating occurs.
The HDC-P1501 can be connected to a 4K@60 Wallplate HDBaseT transmitter (HDC-TH100WP). Close
