4K@60 HDMI Frame Synchronizer/Scaler DFS-01UHD

  • Up to 4K@60 (4:4:4)
  • HDCP 1.4/2.2
  • 180-degree video rotation
  • Synchronized video output between DFS
  • Registering and recalling preset
  • Easy Videowall pattern creation via PC app
Status Model number
EOL DFS-01UHD

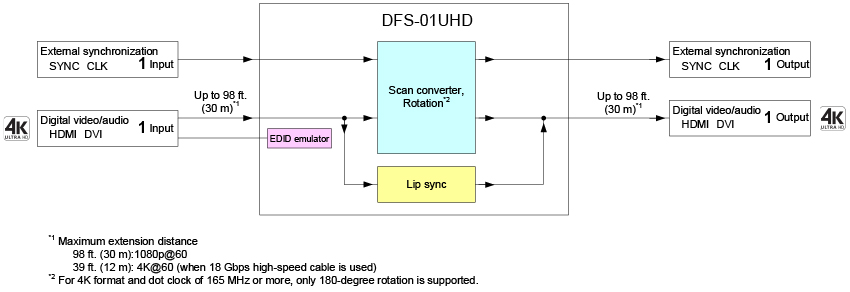

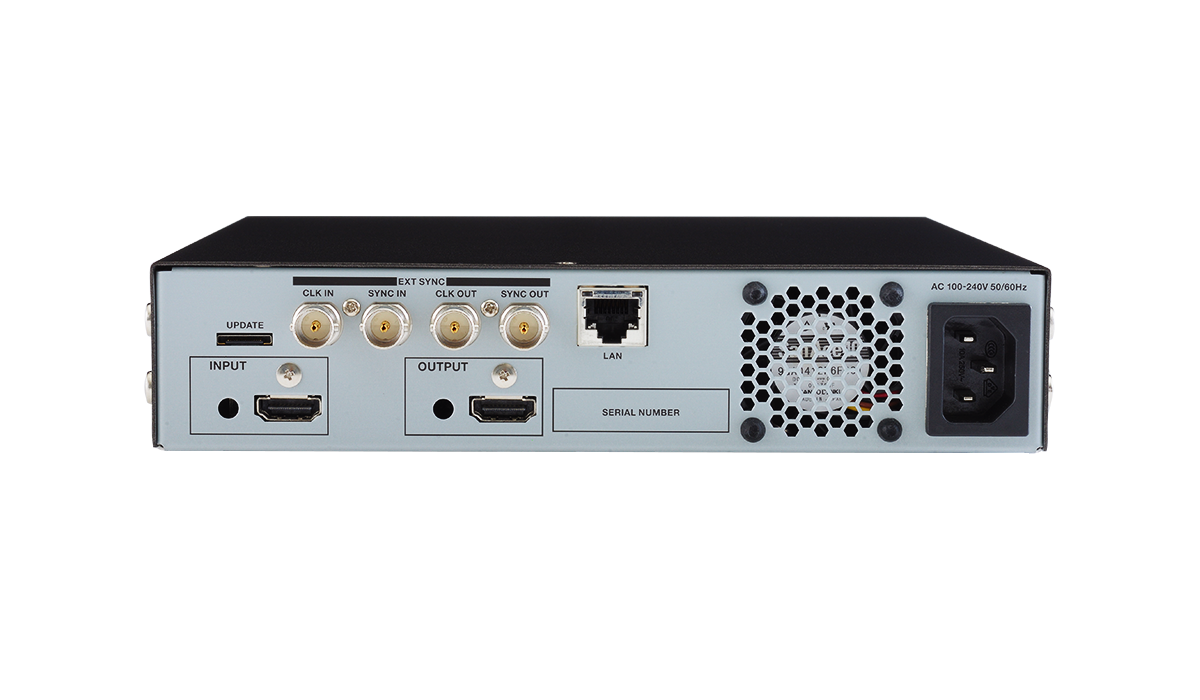

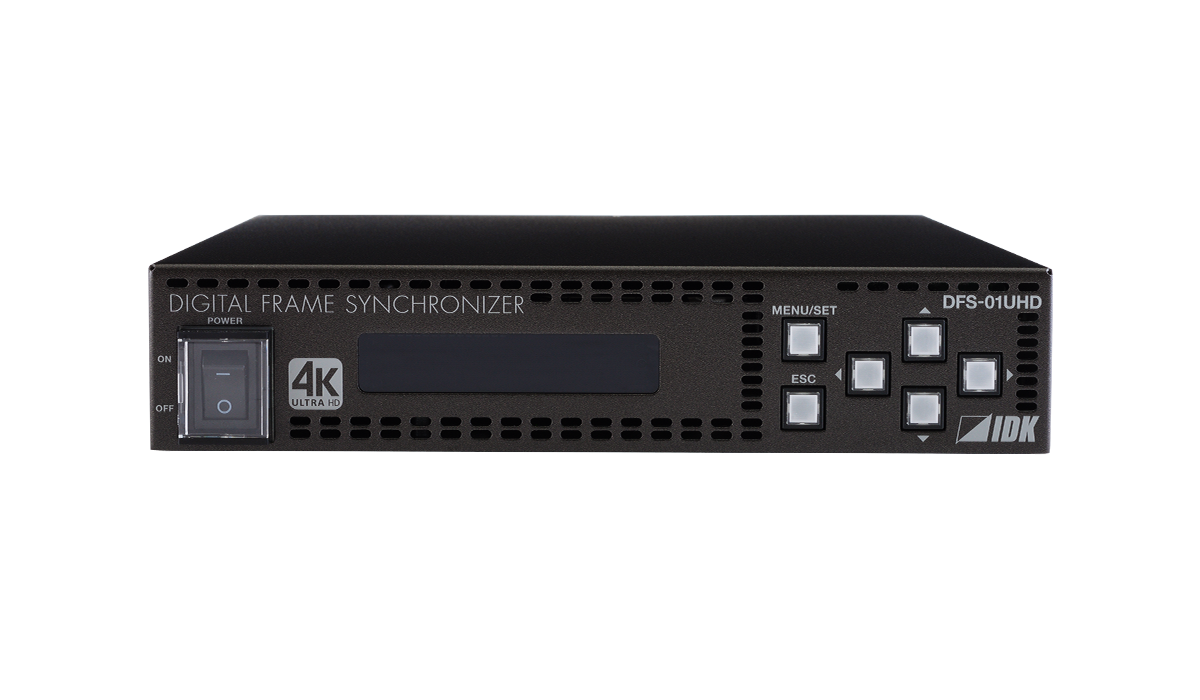

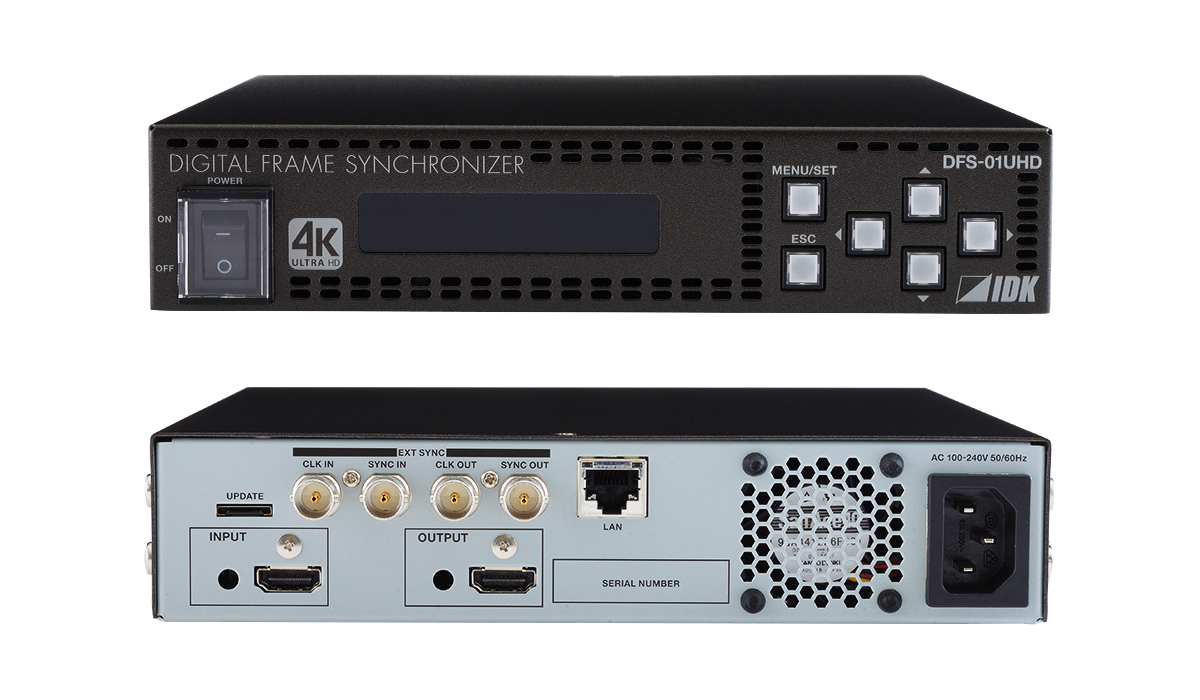

The IDK DFS-01UHD is a digital frame synchronizer with a scan converter 1 input and 1 output.
For video input, 1 digital input is included and HDMI or DVI signals can be input. Input video signals are converted to HDMI signals and output at a resolution up to 4K@60.
Audio volume can be controlled. The lip sync function corrects the gap between the video and audio.
This switcher also has a LAN port as communication ports for control to enable you to set menus remotely.
ItemDescription
Video inputHDMI / DVI1 input
HDMI Deep Color / DVI 1.0
TMDS single link, HDCP 1.4 / 2.2
TMDS clock: 25 MHz to 300 MHz, TMDS data rate: 0.75 Gbps to 18 Gbps
CEC (Pass through), EDID emulation
Connector: Female HDMI Type A (19-pin)
FormatVGA to WQXGA (Dot clock 25 MHz to 300 MHz)
480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4K (Up to 4K@60 (4:4:4))
Audio inputDigital1 input
Multi-channel LPCM up to 8 channels
Sampling frequency: 32 kHz to 192 kHz, Sample size: 16 bit to 24 bit
Connector: Female HDMI Type A (19-pin)
Video outputHDMI / DVI1 input
HDMI Deep Color / DVI 1.0
TMDS single link, HDCP 1.4 / 2.2
TMDS clock: 25.175 MHz to 296.703 MHz, TMDS data rate: 0.755 Gbps to 17.802 Gbps
CEC (Pass through)
Connector: Female HDMI Type A (19-pin)
FormatVGA / SVGA / XGA / WXGA (1280x768) / WXGA (1280x800) / Quad-VGA / SXGA /
WXGA (1360x768) / WXGA (1366x768) / SXGA+ / WXGA+ / WXGA++ / UXGA / WSXGA+ /
VESAHD / WUXGA / QWXGA / WQHD / WQXGA
*VESAHD / WUXGA / QWXGA / WQHD / WQXGA, only Reduced Blanking is supported.
480p / 576p / 720p / 1080i / 1080p / 4K (3840 x 2160) / 4K (4096 x 2160)
Audio outputDigital1 input
Multi-channel LPCM up to 8 channels
Sampling frequency: 32 kHz to 192 kHz, Sample size: 16 bit to 24 bit
Connector: Female HDMI Type A (19-pin)
External sync. I/O 1 input and output (SYNC, CLK)
Level: TTL
Connector: BNC
*For external synchronization, use this product together with another DFS-01UHD or DFS-01HD.
MaximumDigital Input1080p@60: 98 ft. (30 m), 4K@60: 39 ft. (12 m)
extension distanceDigital output1080p@60: 98 ft. (30 m), 4K@60: 39 ft. (12 m)
FunctionsScan ConverterMotion adaptive I/P conversion, Aspect Ratio Control, Video rotation (by 90 degrees) ,
Horizontal flip, Picture adjustment (brightness, contrast, display position, display size, etc.)
OthersAll function setting through browser, Volume adjustment, Lip Sync (Max. 16 frames),
Preset memory (16 settings), Last memory, Anti-Snow , Connection Reset , Security lock,
System check
External controlLAN1 port / RJ-45 10Base-T / 100Base-TX (Auto Negotiation), Auto MDI / MDI-X
GeneralPower100 - 240 VAC ± 10%, 50 Hz / 60 Hz ± 3 Hz
Power consumptionAbout 27 Watts
Dimensions8.3 (W) × 1.7 (H) × 9.8 (D)” (210 (W) × 44 (H) × 250 (D) mm)
(EIA 1U high, half rack wide) (Excluding connectors and the like)
Weight4.2 lbs. (1.9 kg)
TemperatureOperating: 32°F to 104°F (0°C to +40°C)
Storage: -4°F to +176°F (-20°C to +80°C)
HumidityOperating / Storage: 20% to 90% (Non Condensing)
* Specifications are subject to change without notice.
  For the latest specification, please see product specification in PDF format.
Technical documents Version Size Format
Spec sheet DFS-01UHD Ver.2.1.0 0.6 MB PDF
User guide DFS-01UHD Ver.3.6.0 1.5 MB PDF
Command guide DFS-01UHD Ver.3.4.0 0.6 MB PDF
Dimensional outline drawing DFS-01UHD 0.2 MB PDF
Dimensional outline drawing DFS-01UHD 0.2 MB DXF
Frame diagram DFS-01UHD 0.2 MB DXF/DWG
PDN DFS-01UHD 0.1 MB PDF
