Digital Video Analyzer GF-100

  • HDMI portable video tester
  • Up to 1080p/QWXGA(RB)
  • Source device test
  • Sink device test
  • Cable test
  • DDC monitoring
  • Test pattern output
Status Model number
EOL GF-100

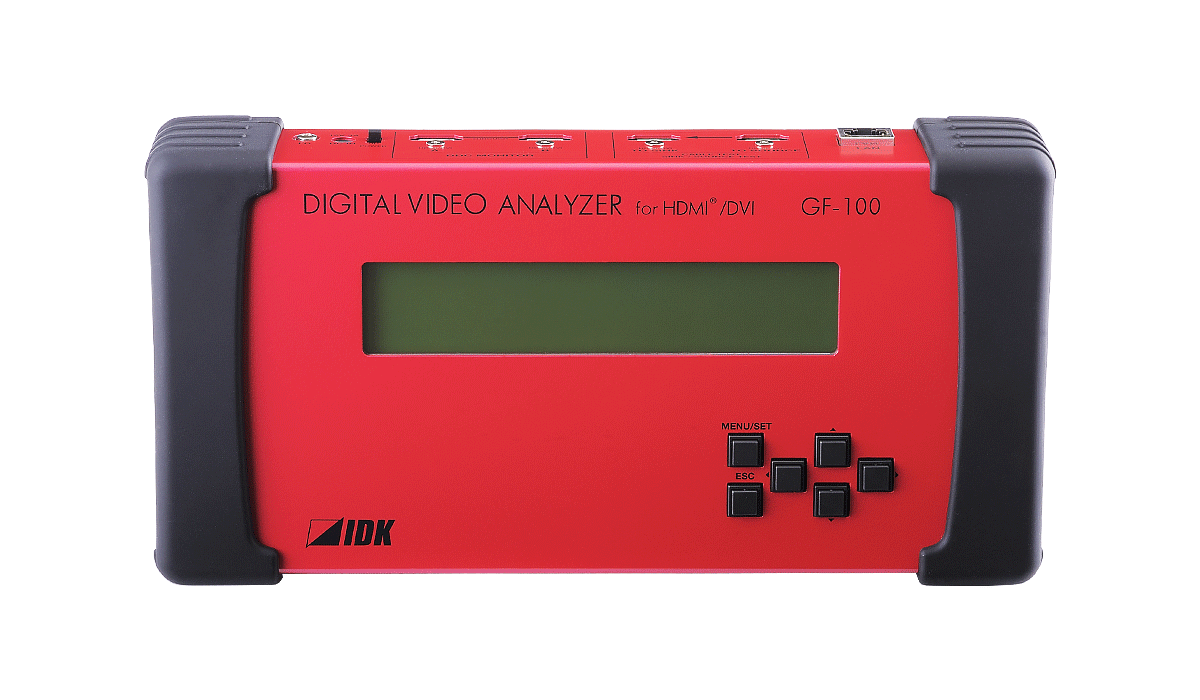

The IDK GF-100 is a handy video analyzer for HDMI/DVI devices.

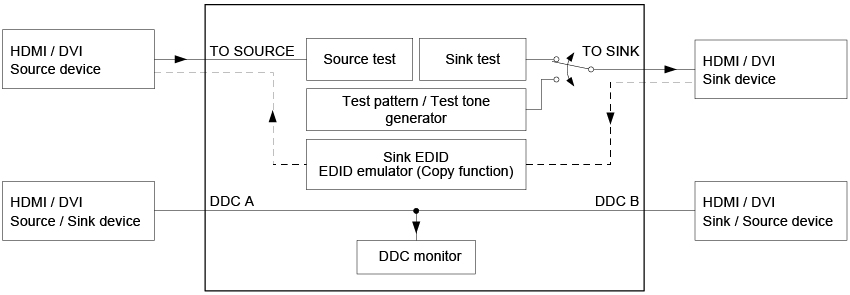

The GF-100 can be used for testing source/sink devices, monitoring DDC between source and sink devices, testing signal transmission, and so on.
ItemDescription
Source test / cable test / transmission test
VideoHDMI / DVI1 input / HDMI Deep Color / DVI 1.0 / HDCP 1.4
　- TMDS single link
　- TMDS clock: 25 MHz to 225 MHz
　- Dot clock 25 MHz to 165 MHz
Connector :
1 female HDMI Type A
AudioDigital Audio1 input / Multi-channel LPCM up to 8 channels
　- Sampling frequency: 32 kHz to 192 kHz
　- Sample size: 16 bit to 24 bit
　- Reference level: -20 dBFS
　- Max. input level: 0 dBFS
Connector1 female HDMI Type A
FunctionsVideo status display
　- Resolution / Frame rate / Aspect Ratio / HDMI signal status / DVI signal status /
HDCP status / Color space / color depth / DDC voltage status / Video timing /
Dot clock frequency / Info frame information / etc…
Audio status display
　- Audio format / number of audio channel / sampling frequency / sample size /
　speaker position / Info frame information / etc…
EDID emulation (with copy function)
Comparing transmitted signal and received signal by test signal
Source status is output to terminal software
Status log display and confirmation by web browser
Sink test / cable test / transmission test
VideoHDMI / DVI1 output / HDMI Deep Color / DVI 1.0 / HDCP 1.4
　- TMDS single link
　- TMDS clock: 25 MHz to 225 MHz
　- Dot clock 25 MHz to 165 MHz
Test pattern output FormatColor space: RGB 4:4:4 / YCbCr 4:2:2 / YCbCr 4:4:4
Color Depth: 24 bit, 30 bit, 36 bit Deep Color
Resolution:
480i / 480p / 576i / 576p / 720p / 1080i / 1080p
VGA / SVGA / XGA / WXGA (1280x768) / WXGA (1280x800) / Quad-VGA / SXGA /
WXGA (1360x768) / WXGA (1366x768) / SXGA+ / WXGA+ / WXGA++ / UXGA /
WSXGA+ / WUXGA / QWXGA
*WUXGA/QWXGA are output as Reduced Blanking
AudioDigital Audio1 output / Multi-channel LPCM up to 8 channels
　- Sampling frequency: 32 kHz to 192 kHz
　- Sample size: 16 bit to 24 bit
　- Reference level:-20 dBFS
　- Max. input level: 0 dBFS
Test tone output Format1 output / Multi-channel linear PCM up to 8 channels
　- Sampling frequency: 48 kHz
　- Sample size: 24 bit
　- Reference level:-20 dBFS
　- Max. input level: 0 dBFS
Connector1 female HDMI Type A
FunctionsSink device specification display
　- Supported resolution / HDMI signal support or not / HDCP support or not / Color space /
color depth / speaker position / EDID information / etc…
Test pattern output
　- Color bar / gray scale / crosshatch / stripe / raster / etc…
Test tone output
　- Test audio / speaker test by each audio channel (1000 Hz / 400 Hz / 80 Hz / 40 Hz)
Comparing transmitted signal and received signal by test signal
Status display by web browser / EDID information download
DDC Monitoring
OperationPass through

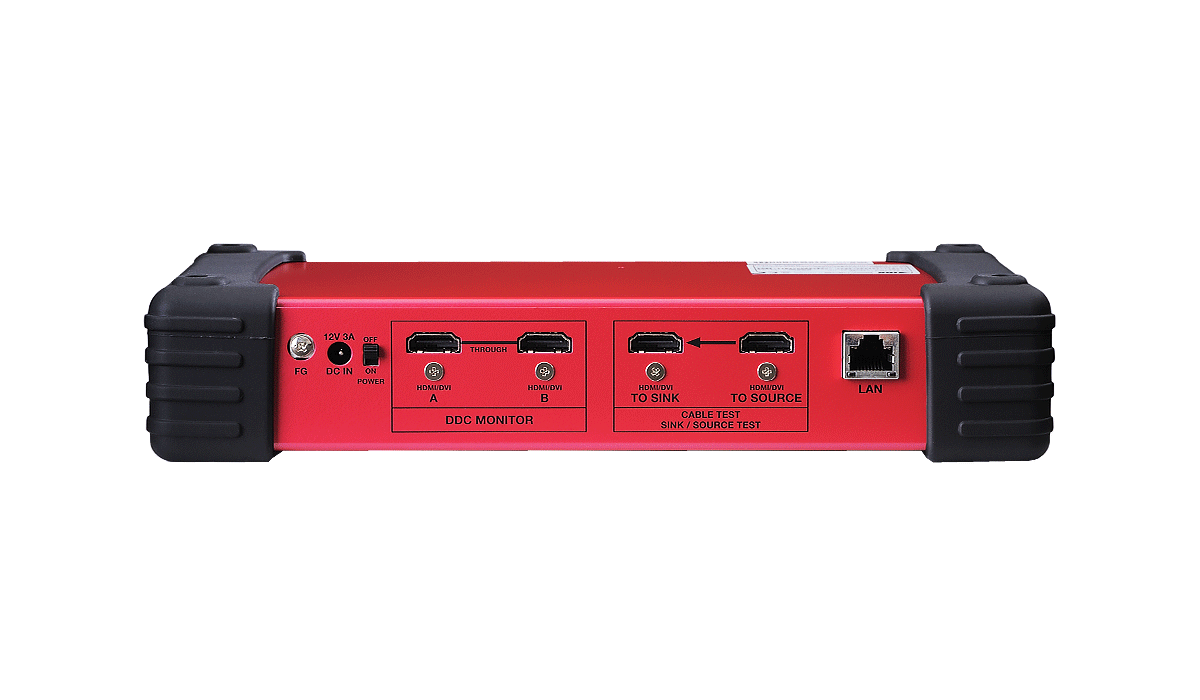

Connector2 female HDMI Type A
FunctionsDDC communication check and display between source device and sink device
　- Hot Plug voltage / DDC voltage / EDID / HDCP
Communication log is output to terminal software
Communication log display and confirmation by web browser
LAN
LAN1 port / 10Base-T (Auto Negotiation), 100Base-TX (Auto Negotiation), Auto MDI/MDI-X
Connector :
1 RJ-45
Others
AC adapterInput: 100 - 240 VAC ± 10%, 50 Hz / 60 Hz ± 3 Hz
Output: DC 12V 3A (AC adapter supplied)
Power consumptionAbout 11 Watts
Dimensions10.2 x 2.1 x 5.2” (260(W) x 53.5(H) x 133(D) mm)
Weight2 lbs. (0.9 kg)
TemperatureOperating: 32°F to 104°F (0°C to +40°C)
Storage: -4°F to +176°F (-20°C to +80°C)
HumidityOperating/Storage: 20% to 90% (Non Condensing)
* Specifications are subject to change without notice.
  For the latest specification, please see product specification in PDF format.
Technical documents Version Size Format
Spec sheet GF-100 Ver.1.6.0 0.2 MB PDF
User guide GF-100 Ver.1.6.0 1.8 MB PDF
Dimensional outline drawing GF-100 43.3 KB PDF
Dimensional outline drawing GF-100 0.1 MB DXF
Frame diagram GF-100 0.1 MB DXF/DWG
Description
The IDK GF-100 is a handy video analyzer for HDMI/DVI devices.
The GF-100 can be used for testing source/sink devices, monitoring DDC between source and sink devices, testing signal transmission, and so on.
