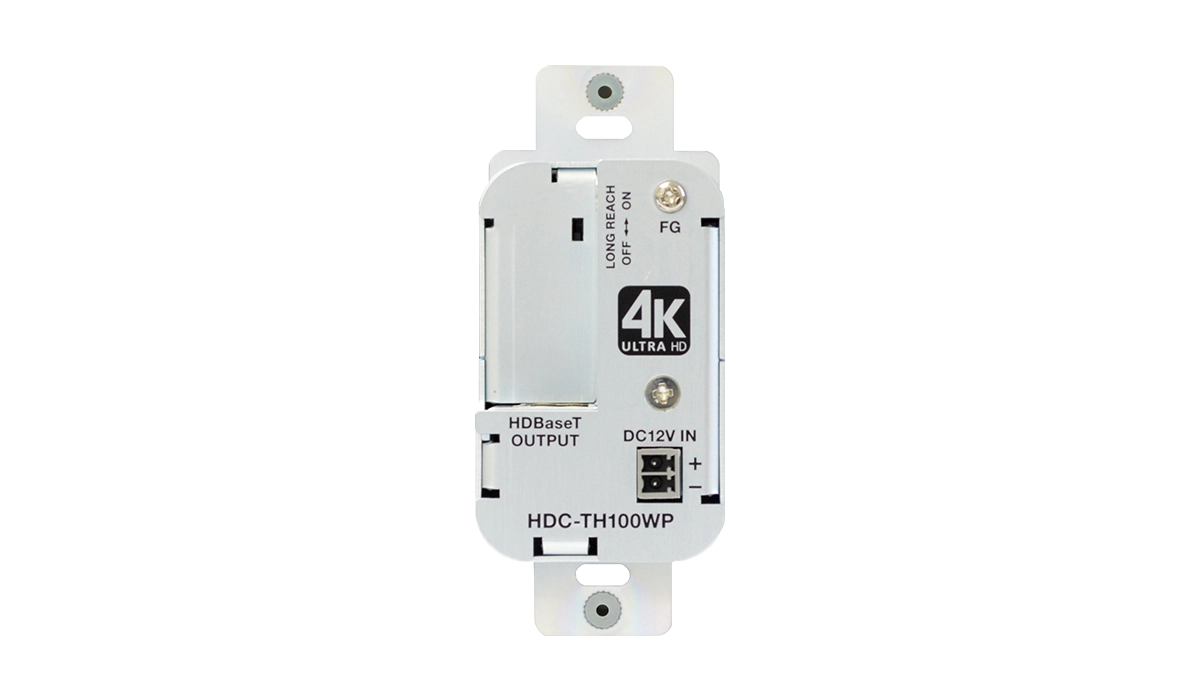

4K@60 Wallplate HDBaseT Transmitter HDC-TH100WP
- Japanese wall-box size
- No-compressed video transmission
- Up to 4K@30/4K@60 (4:2:0)
- HDCP 1.4/2.2 (pass-through)
- Up to 100 m (CAT5e/CAT6)
- Up to 150 m (Long Reach Mode)
- No substantive transmission delay
| Status | Model number | Description |
|---|---|---|
| Available | HDC-TH100WP | USA model |
The IDK HDC-TH100WP is a wall-mountable transmitter for a long-haul transmission of HDMI signal over one single twisted pair cable.
The image quality will not be deteriorated, since video signal is transmitted at a resolution up to 4K@60 without compression. Input video signal is converted to HDBaseT signal and sent up to 328 ft. (100 m).
PoH (Power over HDBaseT) is supported. Connecting a receiver supporting PoH power supply (PSE) function eliminates the need for a local power supply
The image quality will not be deteriorated, since video signal is transmitted at a resolution up to 4K@60 without compression. Input video signal is converted to HDBaseT signal and sent up to 328 ft. (100 m).
PoH (Power over HDBaseT) is supported. Connecting a receiver supporting PoH power supply (PSE) function eliminates the need for a local power supply
| Item | Description | |
|---|---|---|
| Input | 1 input HDMI / DVI 1.0 TMDS signal link HDCP 1.4 / 2.2 (Pass through) CEC (Pass through) Connector: Female HDMI Type A (19-pin) |
|
| Output | 1 output HDBaseT PoH power supplied (PD) (equivalent to IEEE802.3af) Connector: RJ-45 |
|
| Format | VGA to 4K 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4K |
|
| Color depth | 24 bit, 30 bit, 36 bit Deep Color | |
| Dot clock | 25 MHz to 600 MHz | |
| TMDS clock | 25 MHz to 340 MHz | |
| TMDS data rate | 0.75 Gbps to 10.2 Gbps | |
| Plug & Play | Pass through | |
| Digital audio input / output | Multi-channel linear PCM up to 8 channels Sampling frequency: 32 kHz to 192 kHz, Sample size: 16 bit to 24 bit |
|
| Cable for extension | Cable | Cat5e UTP / STP, Cat6 UTP / STP, CAT.5E HDC cable |
| Maximum | 328 ft. (100 m) (For 4K format, CAT.5E HDC, Cat5e STP, or Cat6 STP cable is used) 492 ft. (150 m) (Long reach mode is used) |
|
| extension distance | PoH power supplied (PD) (equivalent to IEEE 802.3af) , Connector: RJ-45 or DC 12 V 0.2 A, Connector: 2-pin terminal block |
|
| General | Power | PoH power supplied (PD): About 4 Watts DC 12 V power supplied: About 3 Watts |
| Power consumption | PoH power supplied (PD): About 4 Watts DC 12 V power supplied: About 3 Watts |
|
| Dimensions | 1.7 (W) × 4.2 (H) × 3.1 (D)” (43.2 (W) × 106.8 (H) × 78.9 (D) mm) (Excluding connectors and the like) |
|
| Weight | 0.4 lbs. (0.2 kg) | |
| Temperature | Operating: 32°F to 104°F (0°C to +40°C) Storage: -4°F to +176°F (-20°C to +80°C) |
|
| Humidity | Operating / Storage: 20% to 90% (Non Condensing) | |
| Switch Box | Eaton’s Crouse-Hinds TP218 1-Gang Steel Switch Box, 2-1/2 in. Deep Eaton’s Crouse-Hinds TP252 1-Gang Steel Switch Box, 3-1/2 in. Deep |
|
| Mounting Bracket | Arlington Industries LV1 Low Voltage Mounting Bracket | |
| Wallplate | Leviton Manufacturing 80401-W 1-Gang Decora Wallplate | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet HDC-TH100WP | Ver.1.0.0 | 0.3 MB | |
| User guide HDC-TH100WP | Ver.1.2.0 | 0.7 MB | |
| Dimensional outline drawing HDC-TH100WP | 0.8 MB | ||
| Dimensional outline drawing HDC-TH100WP | 0.2 MB | DXF |
Description
Specifications [PDF]

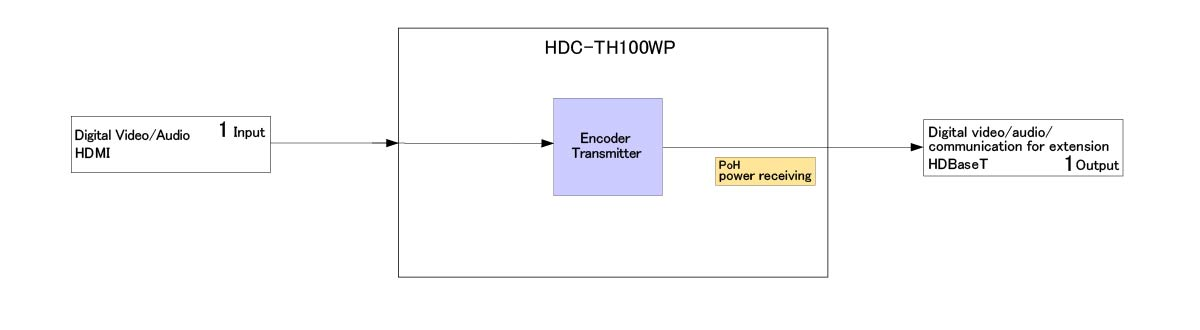

Diagrams
