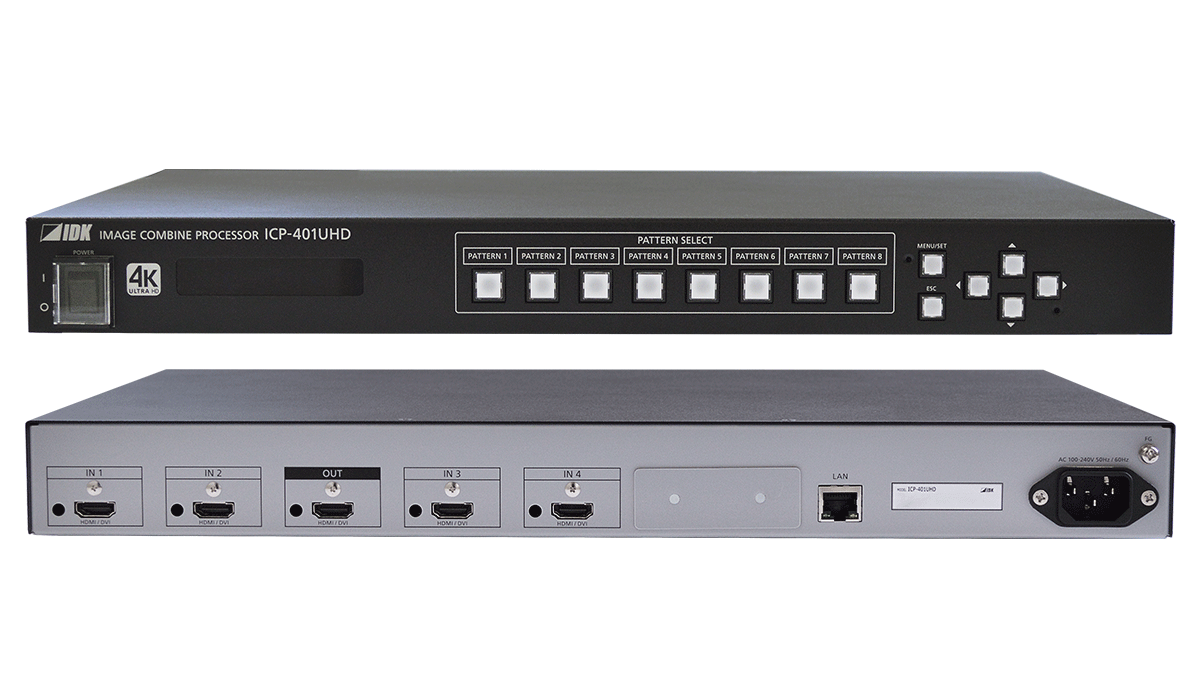

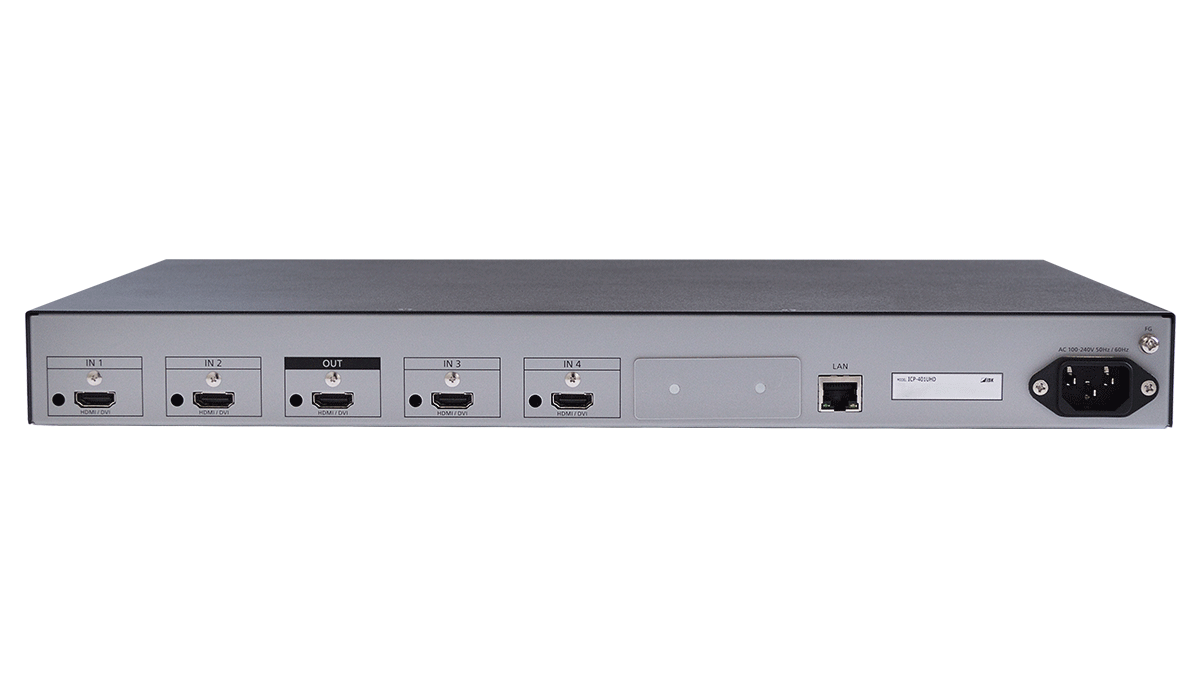

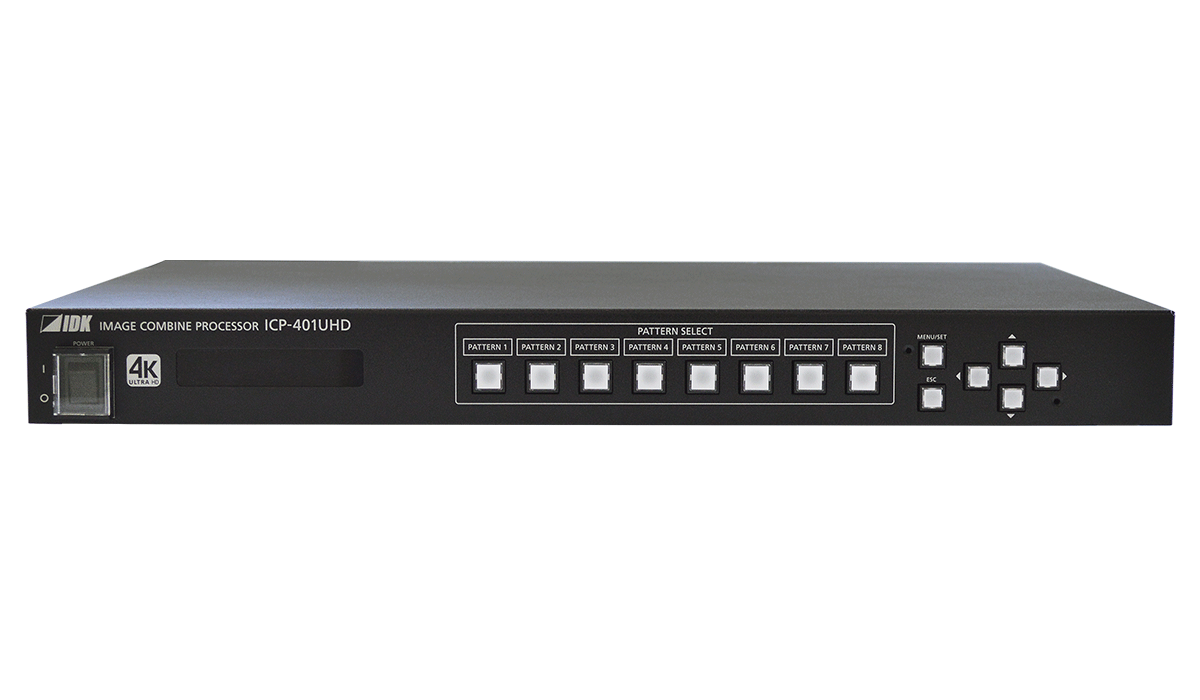

4K@60 Multi-Window Video Processor ICP-401UHD

  • 4 inputs and 1 output
  • Up to 4K@60 (4:4:4)
  • HDCP 1.4/2.2
  • 4-window multiviewing
  • Flexible multiview layout patterns
  • Registering and recalling layout pattern
  • Seamless switching (single-window)
Status Model number
EOL ICP-401UHD

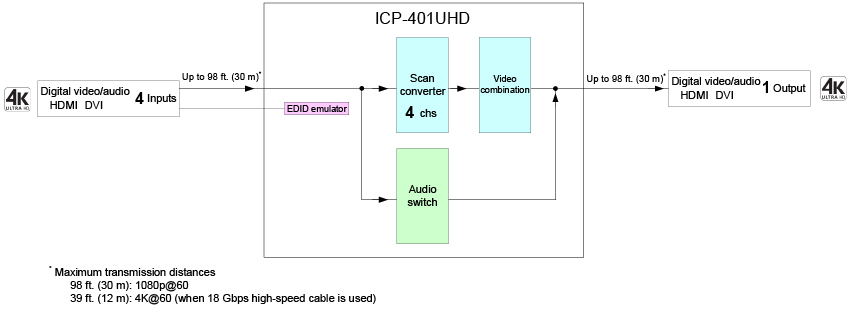

The ICP-401UHD 4K@60 is a multi-window processor that simultaneously displays up to four images on a single screen with any layout setup. Up to four input sources are supported via HDMI inputs.
The ICP-401UHD can be operated as a truly seamless switcher with four inputs and one output in single-window display mode.
The ICP-401UHD includes LAN ports as communication ports for remote control.
ItemDescription
Video inputHDMI/DVI4 inputs
HDMI Deep Color /DVI 1.0
TMDS single link, HDCP 1.4/2.2
TMDS clock: 25 MHz to 300 MHz, TMDS data rate: 0.75 Gbps to 18 Gbps
EDID emulation
Connector: Female HDMI Type A (19-pin)
FormatVGA to 4K (Dot clock: 25 MHz to 600 MHz)
480p / 720p / 1080i / 1080p / 4K (Up to 4K@60 (4:4:4))
Audio inputDigital4 inputs
2-channel LPCM
Sampling frequency: 32 kHz to 192 kHz, Sample size: 16 bit to 24 bit
Reference level: -20 dBFS, Max. input level: 0 dBFS
Connector: Female HDMI Type A (19-pin)
Video outputHDMI/DVI1 output
HDMI Deep Color /DVI 1.0
TMDS single link, HDCP 1.4/2.2
TMDS clock: 74.175 MHz to 296.703 MHz, TMDS data rate: 2.225 Gbps to 17.802 Gbps
Connector: Female HDMI Type A (19-pin)
FormatVESAHD / WUXGA
*VESAHD / WUXGA, only Reduced Blanking is supported.
1080i / 1080p / 4K (3840 x 2160) / 4K (4096 x 2160)
Audio outputDigital1 output
2-channel LPCM
Sampling frequency: 32 kHz to 192 kHz, Sample size: 16 bit to 24 bit
Reference level: -20 dBFS, Max. output level: 0 dBFS
Connector: Female HDMI Type A (19-pin)
Maximum transmission distancesDigital input98 ft. (30 m) (1080p@60), 39 ft. (12 m) (4K@60)
Digital output98 ft. (30 m) (1080p@60), 39 ft. (12 m) (4K@60)
FunctionsScan ConverterVideo combination, 32 window layout patterns, Motion adaptive interlaced/progressive conversion,
Aspect ratio control, Picture adjustment (brightness, contrast, display position, display size, etc.),
Truly seamless switching (single-window display mode), Seamless switching with one black frame (multi-window display mode)
OthersAll functions and configuration settings accessible through browser, Preset memory (32 settings),
Last memory, Anti-snow , Connection Reset , Front key function lock
External controlLAN1 port/RJ-45 10Base-T/100Base-TX (Auto Negotiation), Auto MDI/MDI-X
GeneralPower100 - 240 VAC ± 10%, 50 Hz/60 Hz ± 3 Hz
Power consumptionAbout 54 Watts
Dimensions16.9 (W) × 1.7 (H) × 11.8 (D)” (430 (W) × 44 (H) × 300 (D) mm)
(EIA 1U) (Excluding connectors and the like)
Weight8.6 lbs. (3.9 kg)
TemperatureOperating: 32°F to 104°F (0°C to +40°C)
Storage: -4°F to +176°F (-20°C to +80°C)
HumidityOperating/Storage: 20% to 90% (Non Condensing)
* Specifications are subject to change without notice.
  For the latest specification, please see product specification in PDF format.
Technical documents Version Size Format
Spec sheet ICP-401UHD Ver.2.0.0 1.0 MB PDF
User guide ICP-401UHD Ver.1.4.0 1.6 MB PDF
Command guide ICP-401UHD Ver.1.2.0 0.7 MB PDF
Dimensional outline drawing ICP-401UHD 0.2 MB PDF
Dimensional outline drawing ICP-401UHD 0.2 MB DXF
Frame diagram ICP-401UHD 0.2 MB DXF/DWG
PDN ICP-401UHD 0.1 MB PDF
