4K@60 HDMI Switcher IMP-400UHD
- 4 inputs and 1 output
- Up to 4K@60 (4:4:4)
- HDCP 1.4/2.2
- Automatic input detection and switching
- Sequential input switching
- Control from external controller
- De-embedding analog audio
| Status | Model number |
|---|---|
| EOL | IMP-400UHD |

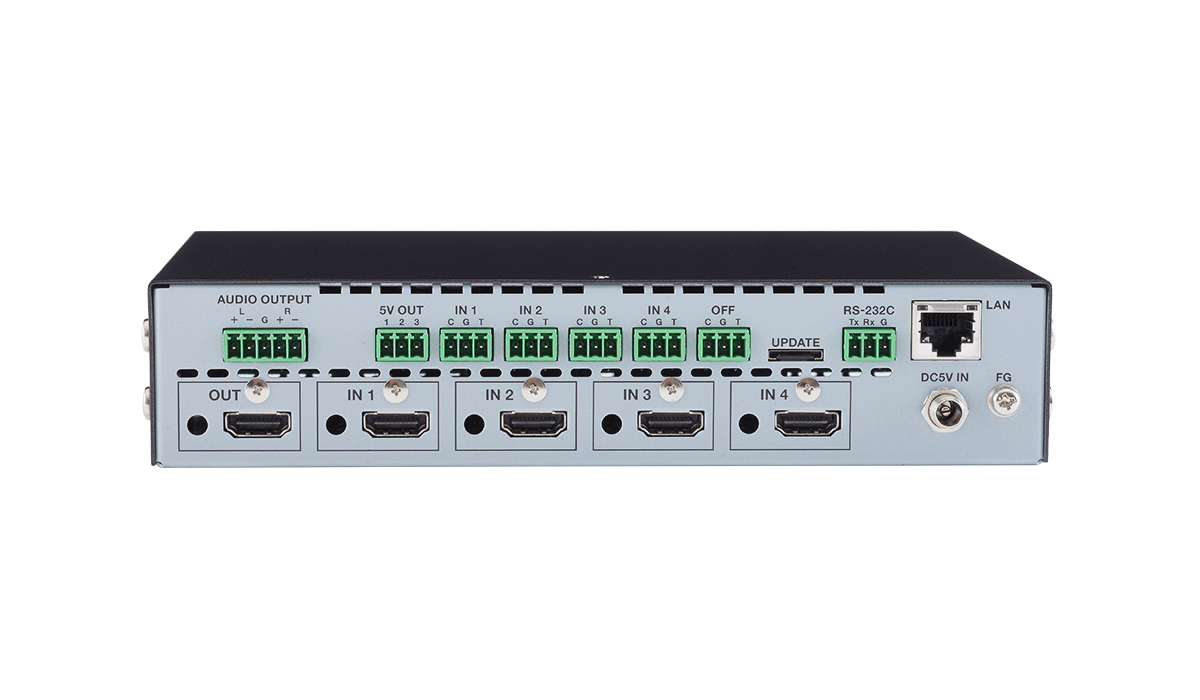

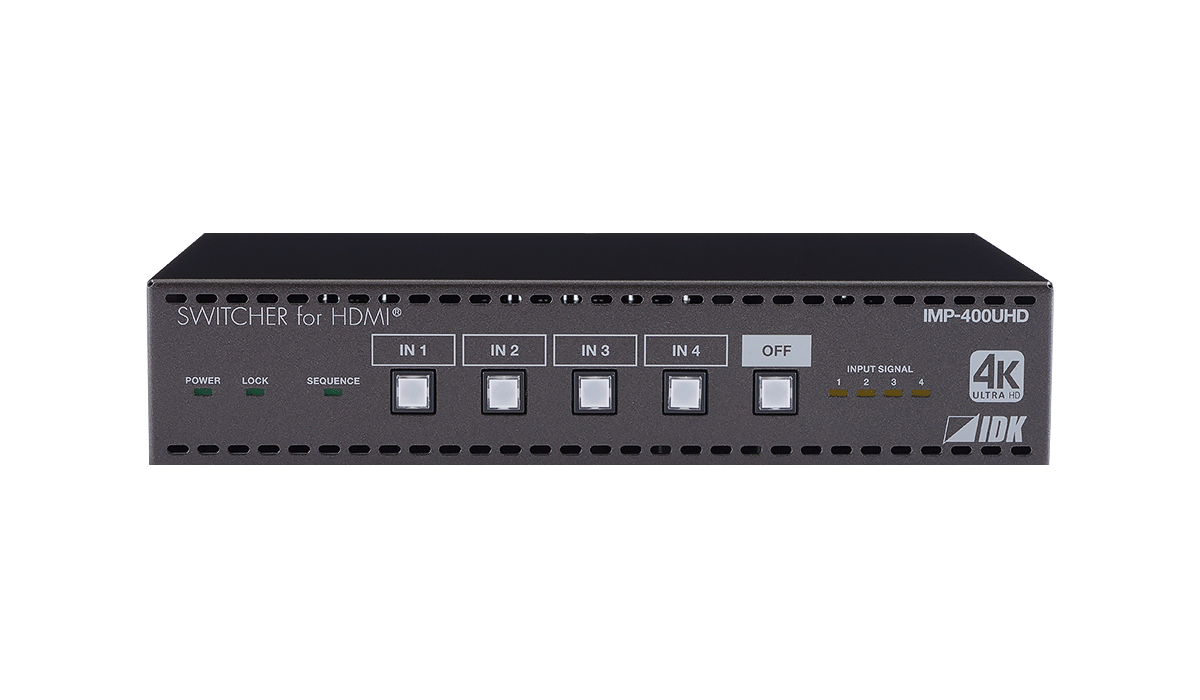

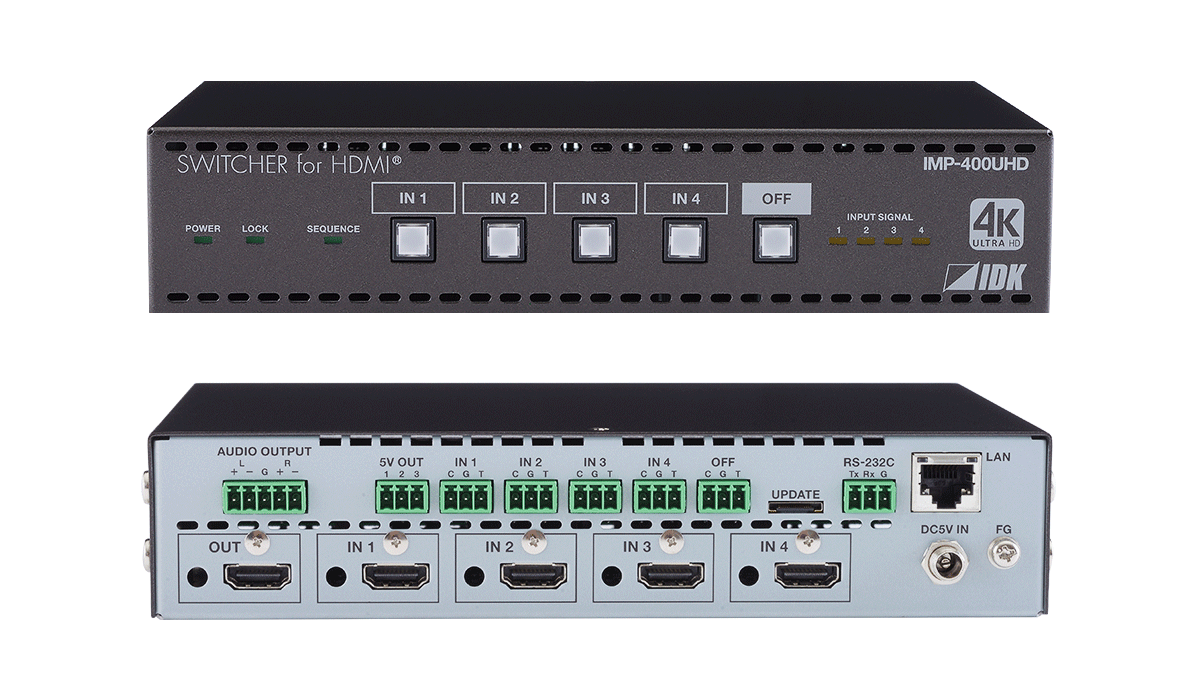

The IDK IMP-400UHD is a 4K@60 and HDCP2.2 supported 4 x 1 HDMI switcher.
The IMP-400UHD has analog audio de-embedded function. This switcher also includes RS-232C and LAN ports as communication ports to enable you to set menus remotely.
Contact inputs / tally outputs enable the IMP-400UHD to be controlled from the PC I/O board and a control box.
The IMP-400UHD has analog audio de-embedded function. This switcher also includes RS-232C and LAN ports as communication ports to enable you to set menus remotely.
Contact inputs / tally outputs enable the IMP-400UHD to be controlled from the PC I/O board and a control box.
| Item | Description | |
|---|---|---|
| Video input | HDMI / DVI | 4 inputs / HDMI Deep Color / DVI 1.0 (HDCP 1.4 / 2.2) - HDR - 3D - x.v.Color - TMDS single link - TMDS clocks: 25 MHz to 300 MHz - TMDS data rate: 0.75 Gbps to 18 Gbps |
| Connector : 4 19-pin HDMI Type A, female |
||
| EDID emulation | ||
| Format | Dot clock 25 MHz to 600 MHz VGA to 4K 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4K (up to 4K@60 (4:4:4)) |
|
| Color depth | 24 bit, 30 bit, 36 bit Deep Color | |
| Audio input | Digital | 4 inputs / Multi-channel linear PCM up to 8 channels - Sampling frequency: 32 kHz to 192 kHz - Sample size: 16 bit to 24 bit - Reference level:-20 dBFS - Max. input level: 0 dBFS |
| Connector : 4 19-pin HDMI Type A, female |
||
| Video output | HDMI / DVI | 1 output / HDMI Deep Color / DVI 1.0 (HDCP 1.4 / 2.2) - HDR - 3D - x.v.Color - TMDS single link - TMDS clocks: 25 MHz to 300 MHz - TMDS data rate: 0.75 Gbps to 18 Gbps |
| Connector : 1 19-pin HDMI Type A, female |
||
| Format | Dot clock 25 MHz to 600 MHz VGA to 4K 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4K (up to 4K@60 (4:4:4)) |
|
| Color depth | 24 bit, 30 bit, 36 bit Deep Color | |
| Audio output | Digital | 1 output / Multi-channel linear PCM up to 8 channels - Sampling frequency: 32 kHz to 192 kHz - Sample size: 16 bit to 24 bit - Reference level:-20 dBFS - Max. input level: 0 dBFS |
| Connector : 1 19-pin HDMI Type A, female |
||
| Analog | 1 output / Stereo LR balanced/unbalanced signal - Balanced signal Output impedance: 100 Ω Reference level: -4 dBu Max. output level: +16 dBu - Unbalanced signal Output impedance: 50 Ω Reference level: -10 dBu Max. output level: +10 dBu |
|
| Connector : 1 5-pin terminal blocks |
||
| Maximum cable distance | Digital Input | 1080p@60: 98.4 ft. (30 m) 4K@60: 39.4 ft. (12 m) |
| Digital output | 1080p@60: 98.4 ft. (30 m) 4K@60: 39.4 ft. (12 m) | |
| Plug & Play | DDC2B (can be selected from Built-in EDID, Copied EDID, and EDID of connected monitor) Note: For Built-in EDID, the maximum resolution can be selected |
|
| Functions | Built-in Web pages for all function settings Automatic input detection and switching DDC buffer Audio D/A conversion Last memory Anti-Snow Connection Reset Operation lock |
|
| External control | Serial control port | 1 port / RS-232C |
| Connector : 1 3-pin terminal block |
||
| LAN control port | 1 port / 10Base-T (Auto Negotiation), 100Base-TX (Auto Negotiation), Auto MDI/MDI-X | |
| Connector : 1 RJ-45 |
||
| Contact input port / Tally output port | 5 ports | |
| Connector : 5 3-pin terminal blocks Contact input: ･Non-voltage contact (make contact) input or voltage contact output (0 V to +5 V ± 5%) Tally output: Open collector output (Rated DC 48 V 1 A) |
||
| Power output | 1 3-pin terminal block Pin1: DC 5 V (300 Ω current limitation) Pin 2: DC 5 V (75 Ω current limitation) Pin 3: DC 5 V (Rated 500 mA) |
|
| General | Power supply | Input: 100 - 240 VAC ±10%, 50 Hz / 60 Hz±3 Hz Output: 5VDC 3A 15 Watts (AC adapter is provided) |
| Power consumption | About 7 Watts | |
| Dimensions | 8.27” (W) x 1.73” (H) x 5.51” (D) (210 mm x 44 mm x 140 mm) EIA half rack 1U size (projections are not included) |
|
| Weight | 2.4 lbs. (1.1 kg) | |
| Temperature | Operating: 32°F to 104°F (0°C to +40°C) Storage: -4°F to +176°F (-20°C to +80°C) |
|
| Humidity | Operating/Storage: 20% to 90% (Non Condensing) | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet IMP-400UHD | Ver.2.0.1 | ||
| User guide IMP-400UHD | Ver.2.2.0 | ||
| Dimensional outline drawing IMP-400UHD | |||
| Dimensional outline drawing IMP-400UHD | DXF | ||
| Dimensional outline drawing IMP-400UHD AC adapter | |||
| Frame diagram IMP-400UHD | DXF/DWG | ||
| PDN IMP-400UHD | |||
| PDN IMP-400UHD | 0.3 MB |
