Digital Multi Switcher MSD-804FD

Status Model number Description

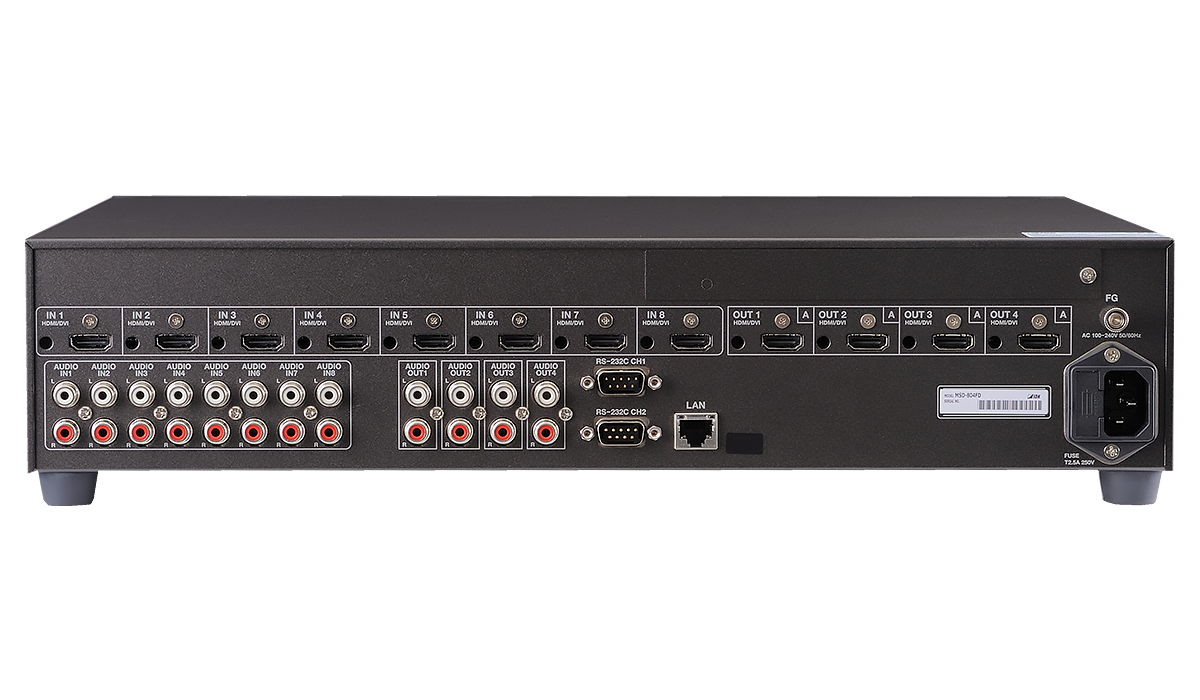

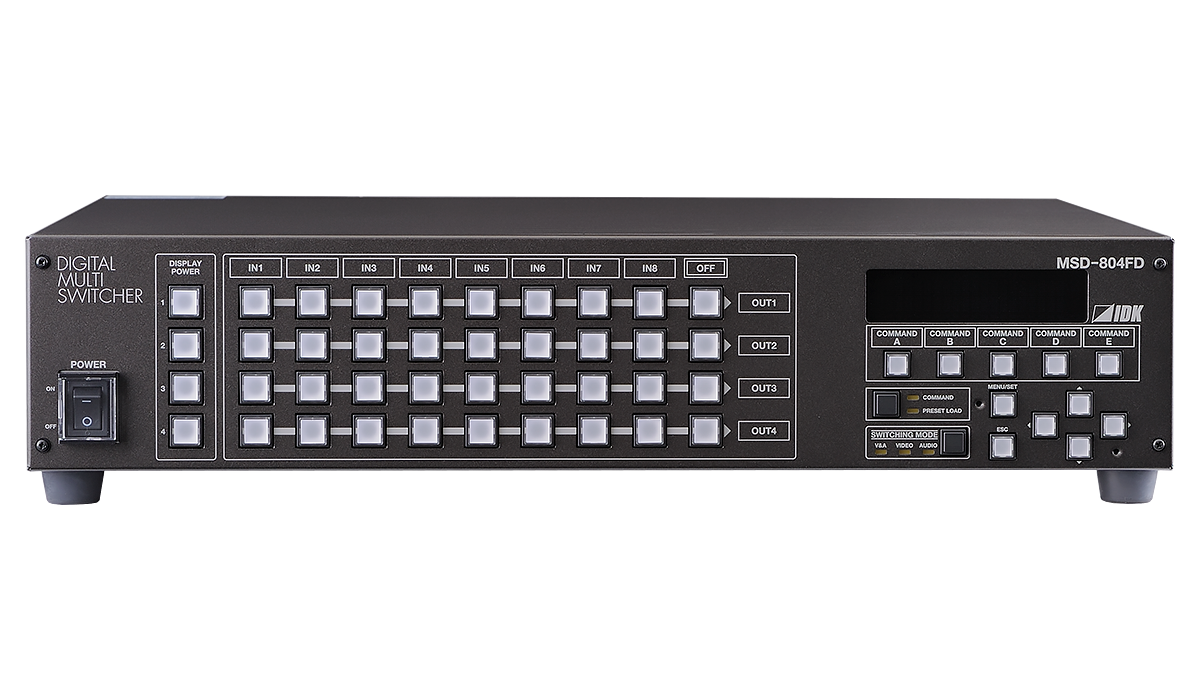

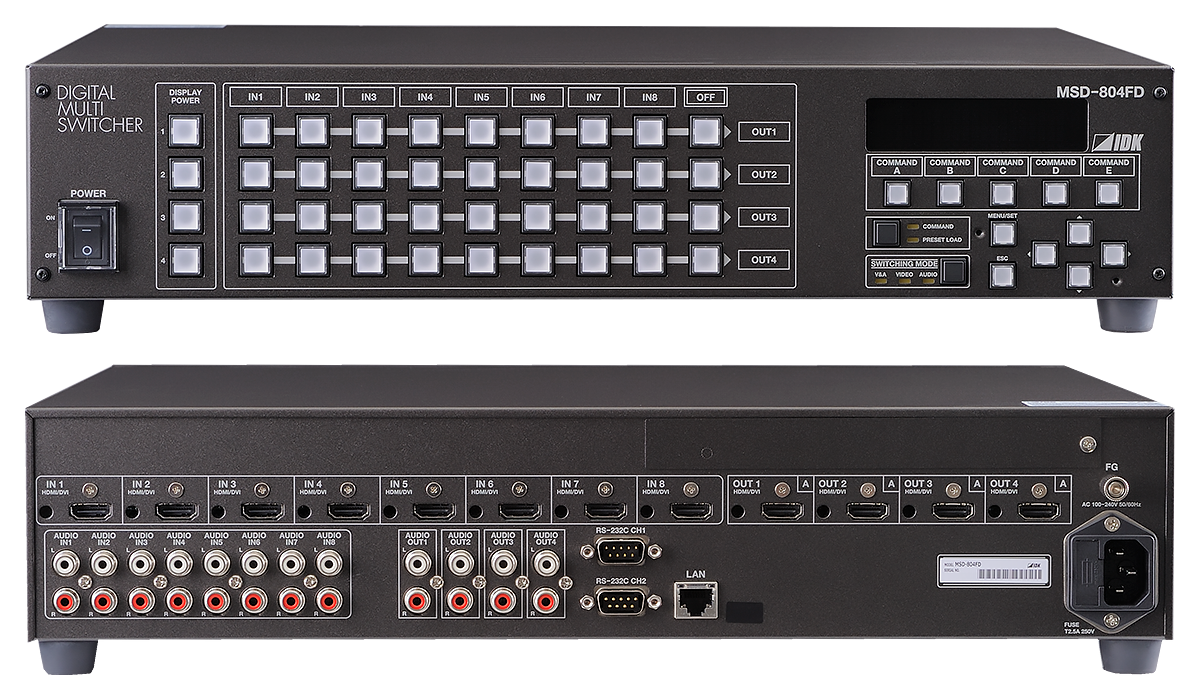

EOL MSD-804FD Standard model

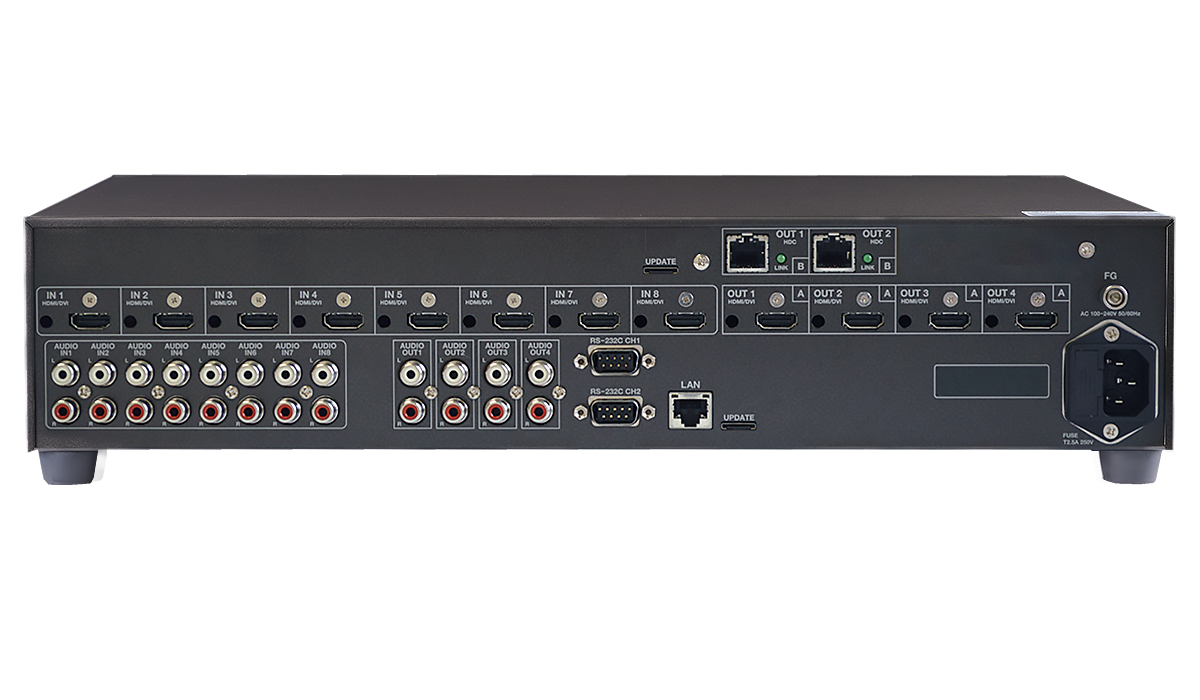

EOL MSD-804FD T2 2 HDBaseT outputs model

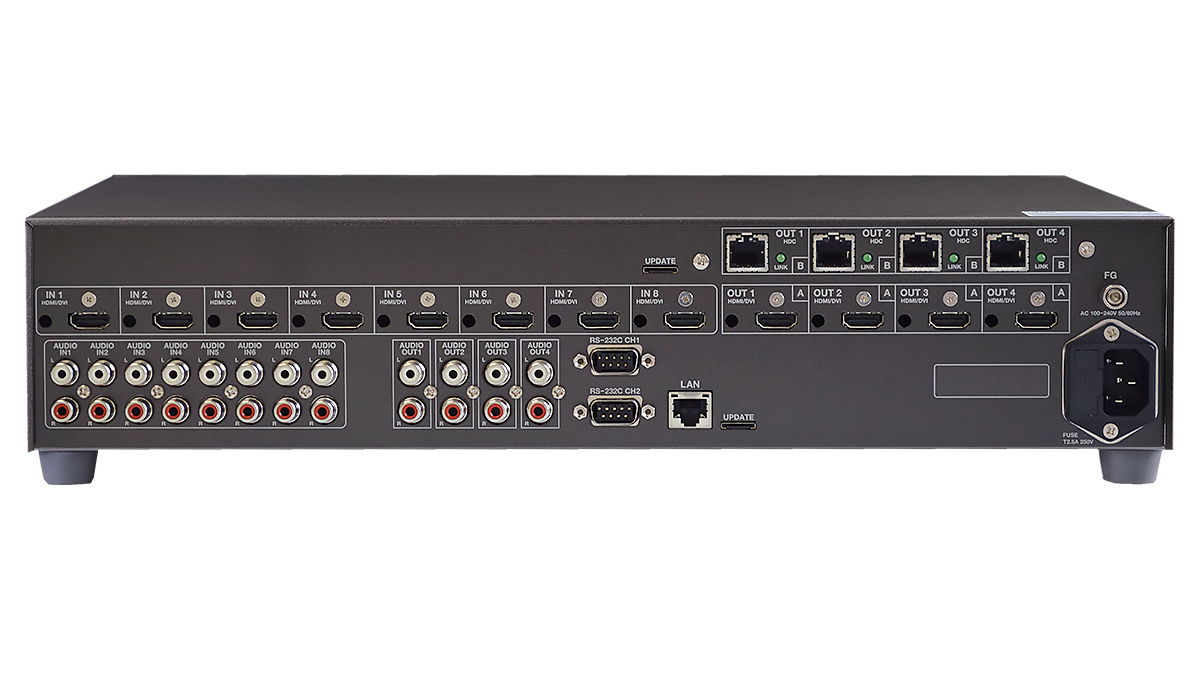

EOL MSD-804FD T4 4 HDBaseT outputs model
The IDK MSD-804FD is 8 digital (HDMI) inputs and 4 digital (HDMI) outputs Full Digital Presentation Switcher.
The MSD-804 can mount optional HDbaseT output modules. When the optional module is mounted, the switcher can output an HDMI output and an HDBaseT output simultaneously.
The MSD-804FD also has 8 digital and 8 analog audio inputs. Audio signals of IN1 to IN8 are switch-selectable between digital audio (HDMI) and analog audio (RCA), and audio output is simultaneous output both digital and analog output. Sound level of input and output can be set respectively. Gaps between video and audio can be compensated by Lip Sync. Front Panel VFD Menu is a useful for checking input and output signal status on the switcher and set or changes the settings of the switcher to support AV systems in a field.
The MSD-804FD also has other features such as built-in scan converter, Seamless Switching, and Aspect Ratio Control for complete AV switching and distribution.
Technical documents Version Size Format
Spec sheet MSD-804FD Ver.1.5.0 PDF
User guide MSD-804FD Ver.1.6.0 PDF
Command guide MSD-804FD Ver.1.2.3 PDF
Dimensional outline drawing MSD-804FD PDF
Dimensional outline drawing MSD-804FD DXF
Frame diagram MSD-804FD DXF/DWG
PDN MSD-804FD 0.3 MB PDF
PDN MSD-804FD T2 0.3 MB PDF
PDN MSD-804FD T4 0.3 MB PDF
PDN MSD-804FD PDF
