Modular Multi Switcher MSD-EX32

  • Up to 32 inputs (8 input boards)
  • Up to 32 outputs (8 output boards)
  • Up to 1080p/QWXGA(RB)
  • HDCP 1.4
  • Multi-format inputs
  • Seamless switching (black frame)
  • Control external device
Status Model number
EOL MSD-EX32

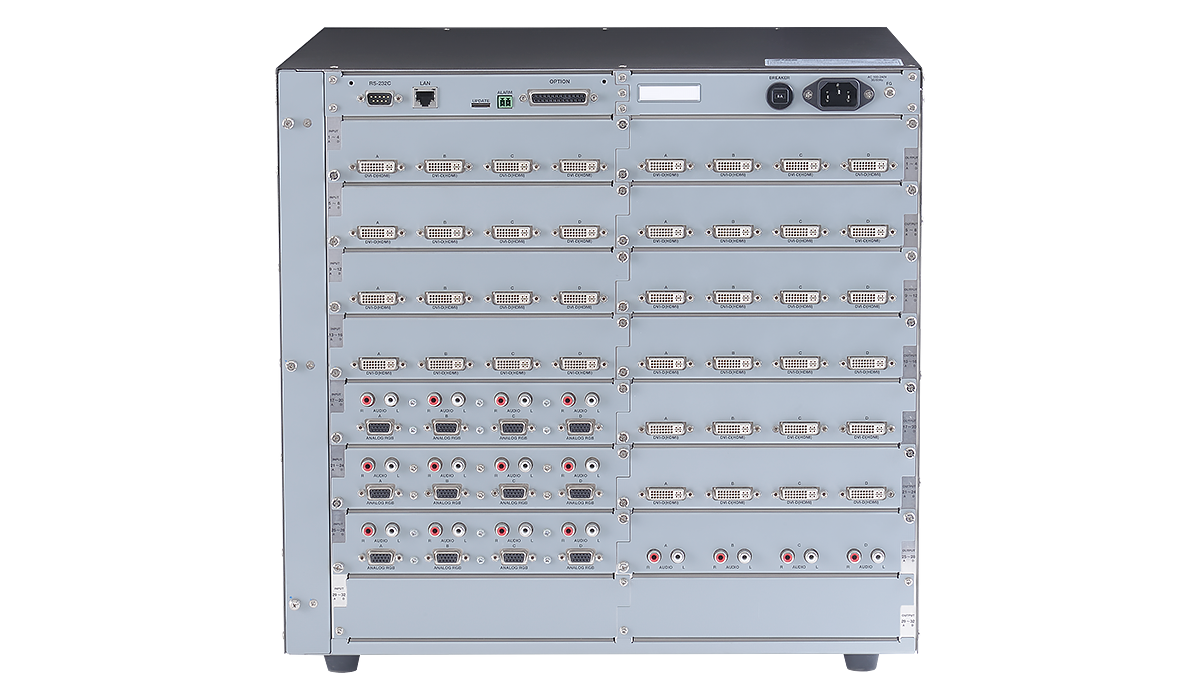

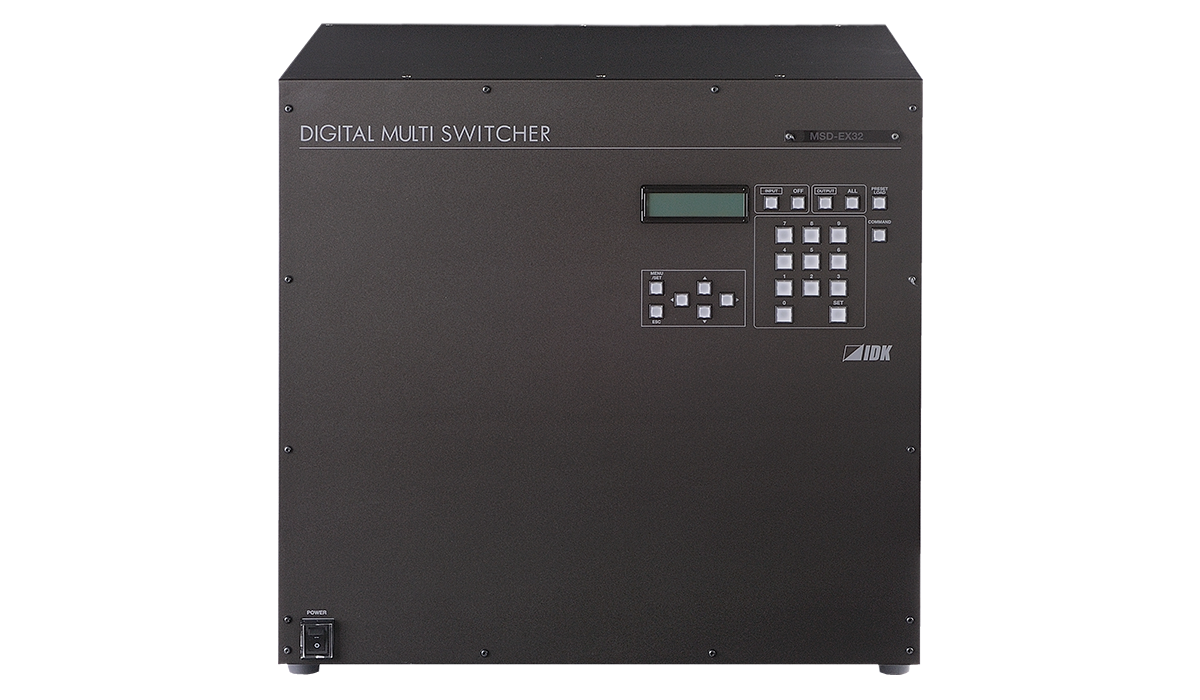

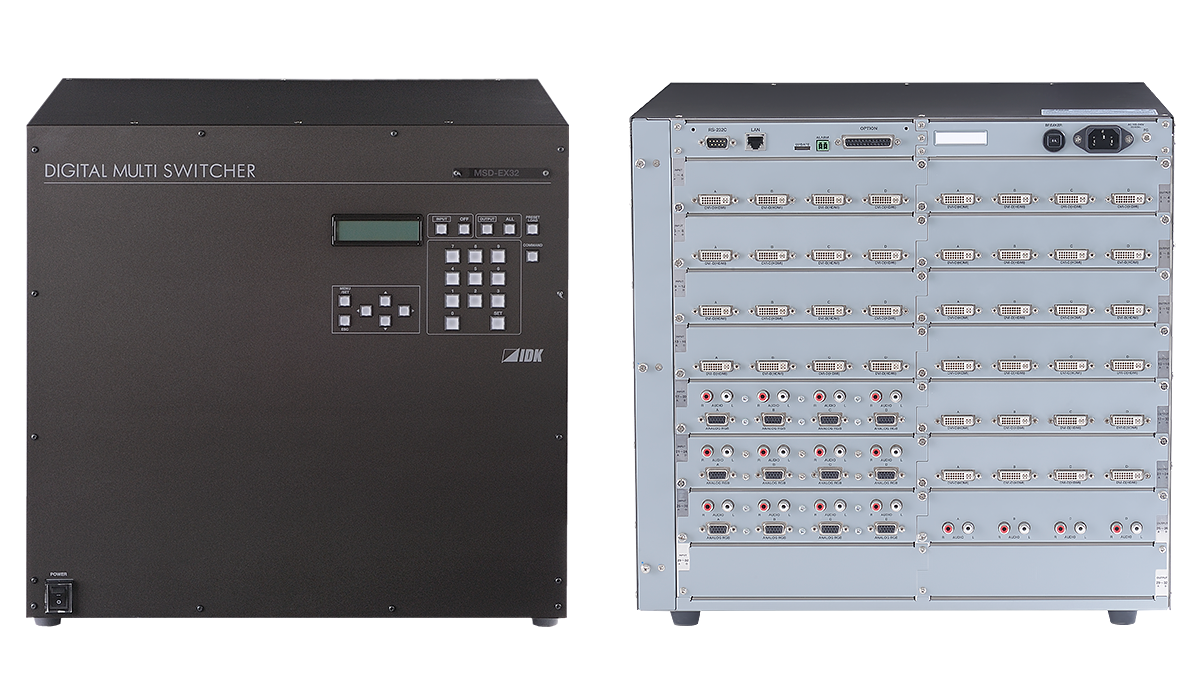

The IDK MSD-EX32 is a slot-type presentation switcher with a scan converter and up to 32 inputs and 32 outputs.
This digital matrix switcher switches HDMI / DVI and (video and audio) input signals and universal analog (video and audio) input signals and converts those input video signals to up to QWXGA or 1080p in order to output HDMI / DVI (video and audio) signals. Since you can select input and output slot boards you want, it enables you to configure signals and the number of channels at your disposal.
The MSD-EX32 has RS-232C and LAN as communication ports for external control that enables you to control settings remotely. You can also control external devices that are connected to the MSD-EX32 over RS-232C or LAN by registering external control commands. The waiting function helps you to send external commands after cooling time passes as power supply control of projectors or the like.
External control commands can be executed from front keys, RS-232C, or LAN; they can be executed at start-up.
Technical documents Version Size Format
Spec sheet MSD-EX32 Ver.1.1.0 PDF
User guide MSD-EX32 Ver.1.4.0 PDF
Command guide MSD-EX32 Ver.1.1.1 PDF
Dimensional outline drawing MSD-EX32 PDF
Dimensional outline drawing MSD-EX32 DXF
Frame diagram MSD-EX32 DXF/DWG
PDN MSD-EX32 0.3 MB PDF
