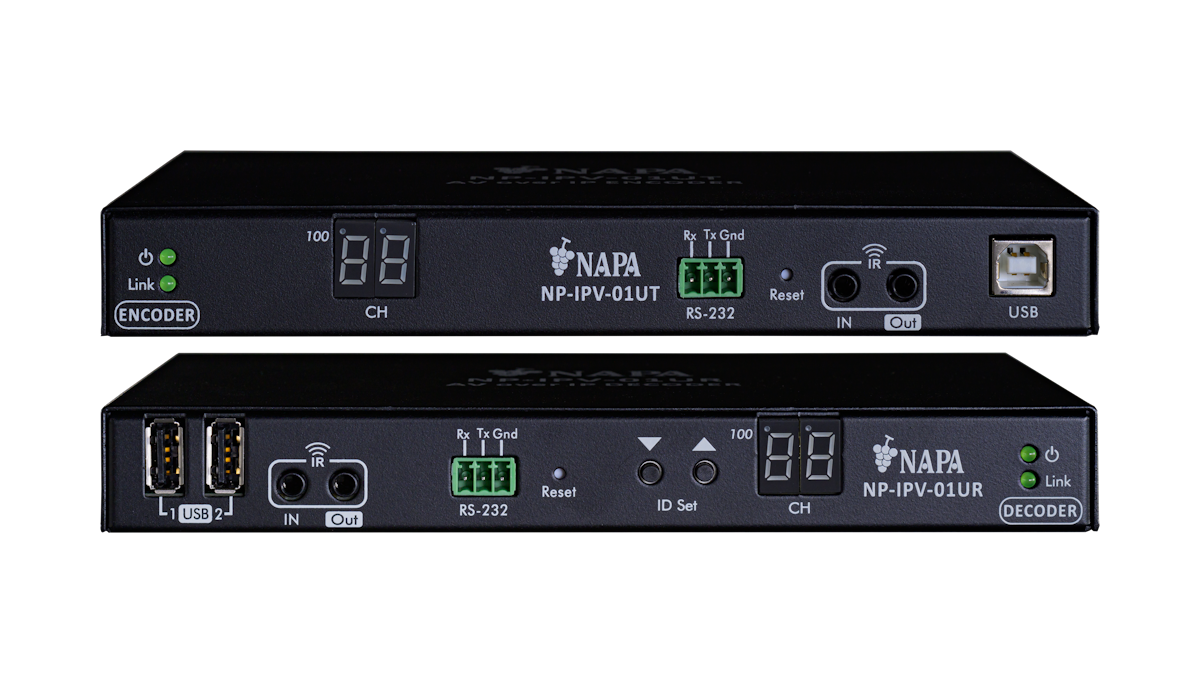

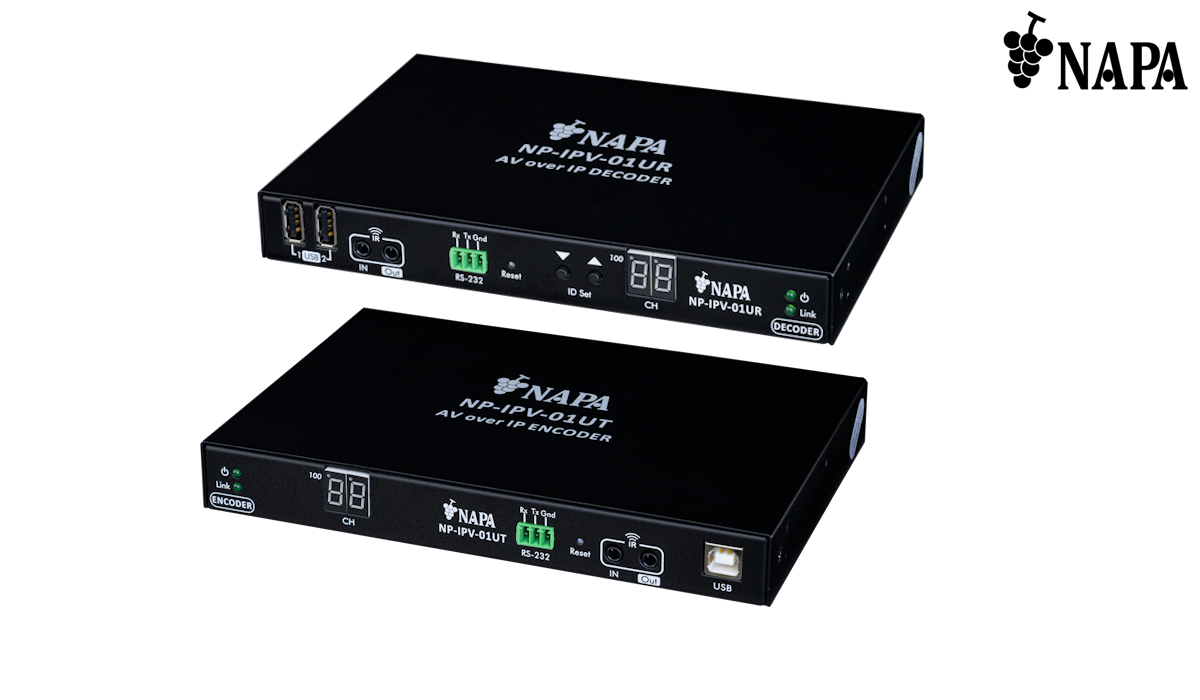

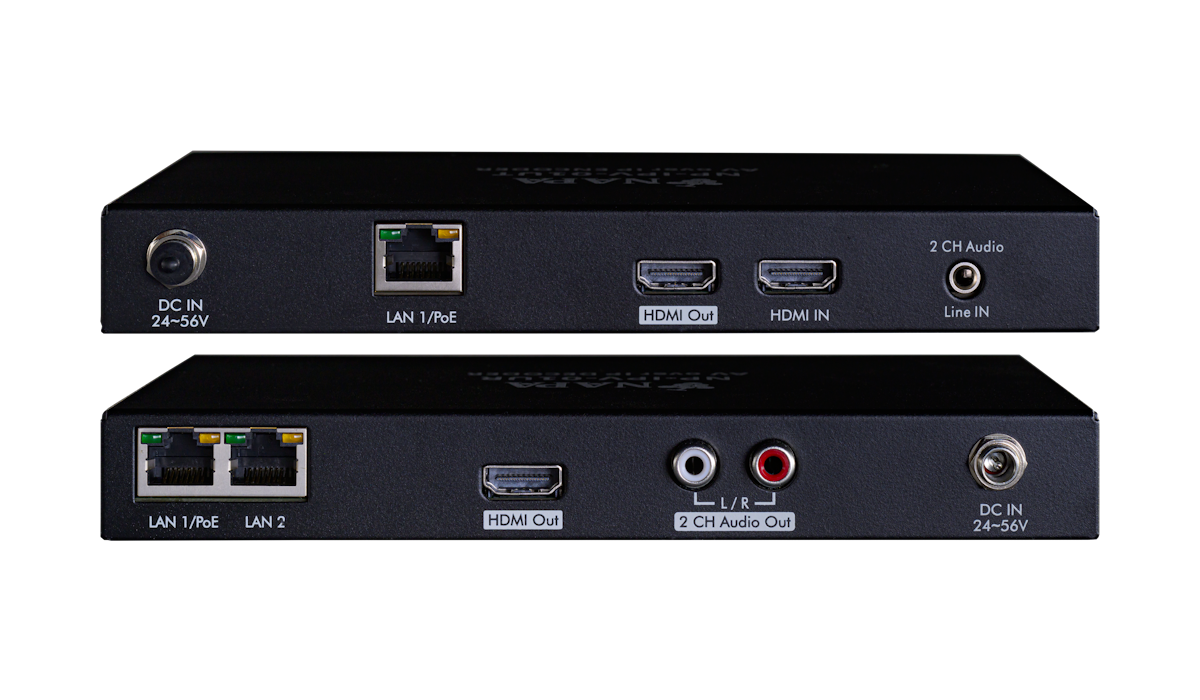

4K@60 HDMI Encoder/Decoder NP-IPV-01U
- Up to 4K@60 (4:4:4)
- HDCP 1.4/2.2
- Up to 100 m (CAT5e/CAT6)
- USB/KVM switching
- PoE (IEEE 802.3af)
- Built-in Scaler (Rx)
- Videowall
| Status | Model number | Description |
|---|---|---|
| Available | NP-IPV-01UT | |
| Available | NP-IPV-01UR |
NP-IPV-01UT / R is IP network extender which can send maximum 4K@60Hz image by Cat 5e/6 cable. With a combination of 1G PoE network switch, external power supply is unnecessary. This can be used for video wall, matrix switcher and extender simply and flexibly. Bidirectional IR and RS232 and USB extension available.
| Item | NP-IPV-01UT | NP-IPV-01UR | |
|---|---|---|---|
| Video / Audio Input | HDMI | 1 input | - |
| HDMI/DVI 1.0 TMDS single link, HDCP 1.4/2.2 TMDS clock: Up to 300 MHz, TMDS data rate: Up to 18 Gbps Deep Color/HDR*1 |
|||
| 640x480@60 to 3840x2160@60 Reduced Blanking 480i, 576i to 3840x2160@ 24/25/30/50/59.94/60 (4:4:4), 3840x2160@ 50/59.94/60 (4:2:0), 4096x2160@ 24/25/30/50/59.94/60 (4:4:4), 4096x2160@ 50/59.94/60 (4:2:0) Color depth: 24/30/36 bits *For all supported video signals, see the table below. |
|||
| PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital True-HD, DTS 5.1 Channel, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio |
|||
| Connector: HDMI Type A (19-pin) Maximum distances*2: 16.4 ft (5 m) |
|||
| Analog Audio | 1 input | - | |
| Stereo L/R Input impedance: 20 kΩ unbalanced Max. input level: 1 Vrms | - | ||
| Connector: 2 channels 3.5mm jack | - | ||
| 1GbE | - | 1 input | |
| *Supported video signals are the same as those of HDMI | |||
| RS-232C/IR/USB | |||
| Connector: RJ-45 Maximum distances: 328 ft. (100 m) Cable: CAT5e / CAT6 |
|||
| Video / Audio Output | HDMI | - | 1 output |
| HDMI/DVI 1.0 TMDS single link, HDCP 1.4/2.2 TMDS clock: Up to 300 MHz, TMDS data rate: Up to 18 Gbps Deep Color/HDR*1 |
|||
| 640x480@60 to 3840x2160@60 Reduced Blanking 480i, 576i to 3840x2160@ 24/25/30/50/59.94/60 (4:4:4), 3840x2160@ 50/59.94/60 (4:2:0), 4096x2160@ 24/25/30/50/59.94/60 (4:4:4), 4096x2160@ 50/59.94/60 (4:2:0) Color depth: 24/30/36 bits *For all supported video signals, see the table below. |
|||
| PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital True-HD, DTS 5.1 Channel, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio |
|||
| Connector: HDMI Type A (19-pin) Maximum distances*2: 16.4 ft (5 m) |
|||
| Analog Audio | - | 1 output | |
| - | Stereo L/R Output impedance: 33 Ω unbalanced Max. output level: 0.95 Vrms |
||
| - | Connector: 2 channels RCA pin jack | ||
| 1GbE | 1 output | - | |
| *Supported video signals are the same as those of HDMI | |||
| RS-232C/IR/USB | |||
| Connector: RJ-45 Maximum distances: 328 ft. (100 m) Cable: CAT5e / CAT6 |
|||
| Control I/F | RS-232C | 1 port/Connector: Captive screw (3-pin) | |
| LAN | 1 port/10Base-T/100Base-TX/1000Base-T (Auto Negotiation), Auto MDI/MDI-X, Connector: RJ-45 | ||
| USB | 1 port/HID class, Connector: Female Type-B | 1 port/HID class, Connector: Female Type-B | |
| IR input / output | 1 port each for input / output | ||
| Functions | 7-segment Channel display, Scaler (only for Decoder) | ||
| General | Power | PoE, Connector: RJ-45 (1GbE input) AC adapter: AC 100 V - 240 V ±10%、50 Hz/60 Hz ±3 Hz、DC 48 V 0.5 A 24 W |
|
| Power consumption | PoE: 7.7 W AC adapter: 7.7 W | PoE: 8.5 W AC adapter: 8.5 W |
|
| Dimensions | 190.4 (W) × 24.5 (H) × 127.2 (D) mm (Excluding connectors and the like) | ||
| Weight | 0.70 kg | ||
| Temperature | Operating: 32°F to 104°F (0°C to +40°C), Storage: -4°F to +176°F (-20°C to +80°C) | ||
| Humidity | 20% to 90% (non-condensing) | ||
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet NP-IPV-01U | Ver.1.0.0 | 0.4 MB | |
| User guide NP-IPV-01U | Ver.1.1.0 | 1.5 MB |
Description
Specifications [PDF]
Download
NP-IPV-01UT / R is IP network extender which can send maximum 4K@60Hz image by Cat 5e/6 cable. With a combination of 1G PoE network switch, external power supply is unnecessary. This can be used for video wall, matrix switcher and extender simply and flexibly. Bidirectional IR and RS232 and USB extension available.
