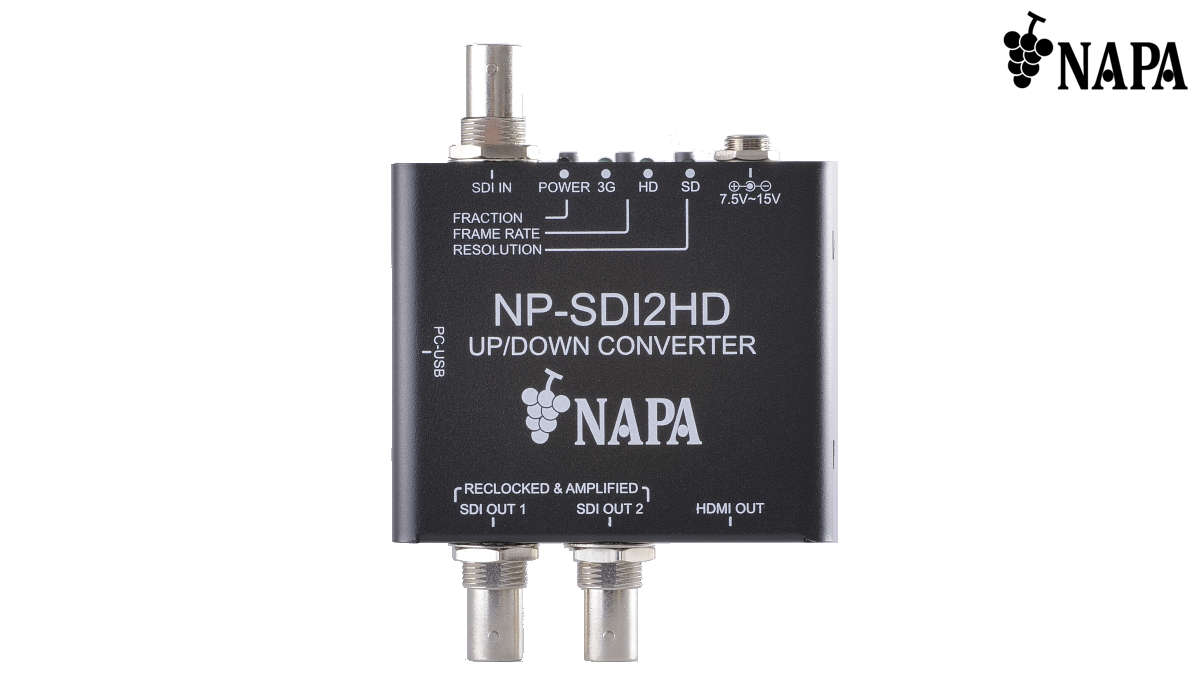

3G/HD/SD-SDI SDI to HDMI Converter NP-SDI2HD
- SDI to HDMI conversion
- 3G/HD/SD-SDI
- Up to 1080p
- 1×2 DA (SDI)
- Up/down conversion
| Status | Model number |
|---|---|
| Available | NP-SDI2HD |
NP-SDI2HD is a simple converter which can convert SD/HD/3G-SDI signal to HDMI signal. Up/Down convert functions are installed. Input SDI signal can be reclocked and distributed to 2 SDI port as well. Maximum resolution for input is up to 3G-SDI and output is up to 1080p.
| Item | NP-SDI2HD | |
|---|---|---|
| Video Output | SDI | 1 input |
| SD / HD / 3G-SDI ・3G format 1080p50/60 ・HD format 1080p 24/25/30 1080i 50/60 720p 50/60 ・SD format 625i (PAL) 525i (NTSC) |
||
| Video Input | HDMI / SDI | 1 output: HDMI 2 outputs: SD / HD / 3G-SDI |
| 1080p@ 60 / 50, 1080i@ 60 / 50, 1080p@ 30 / 25 / 24, 720p@ 60 / 50,525i, 625i | ||
| Audio Format | Embedded audio (2 ch, 24 bit, 48 kHz) ※SDI Embedded Audio Channel 1-2 |
|
| Plug & Play | Yes | |
| Dimensions | 74 (W) x 63.6 (D) x 22 (H) mm (Without projections） | |
| Weight | 180 g | |
| Temperature | Operation: 0 to 50 degrees C, Storage: -20 to +60 degrees C | |
| Humidity | Operation/Storage: 20 to 90 % (Without condensing) | |
| Power Consumptions | 2.04W (12V, 170mA) | |
| Accessories | DC power adapter with locking mechanism x 1 | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet NP-SDI2HD | Ver.1.2.0 | 0.1 MB | |
| User guide NP-SDI2HD | Ver.1.0.0 | 1.6 MB |
