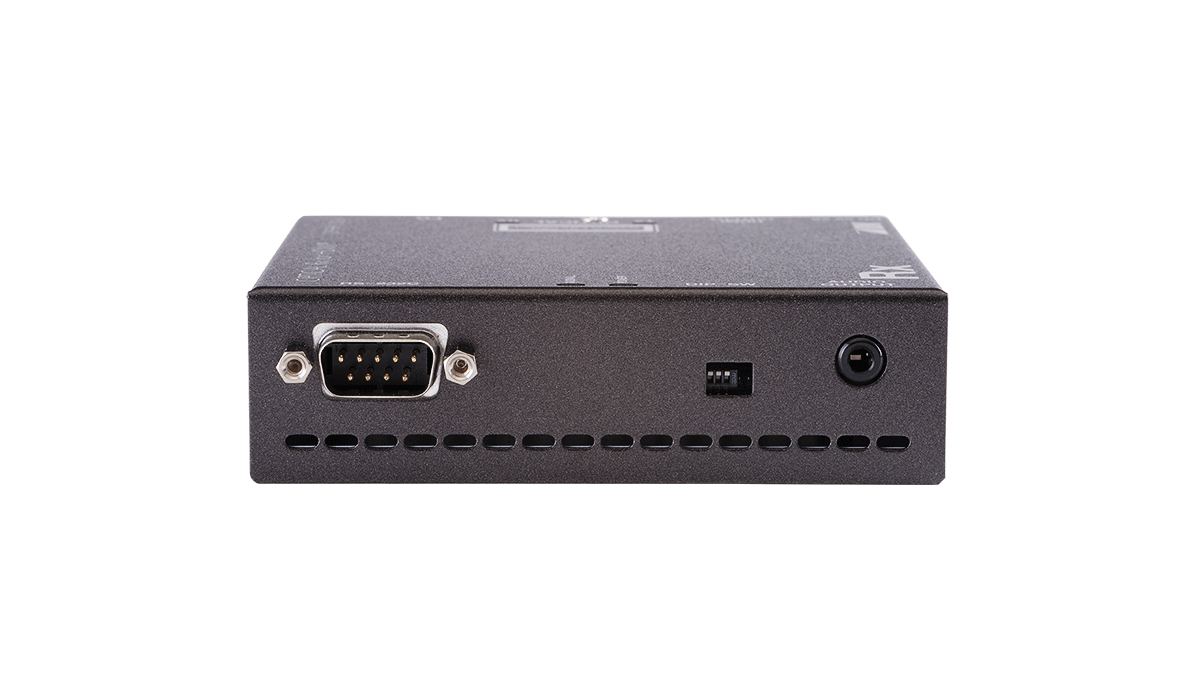

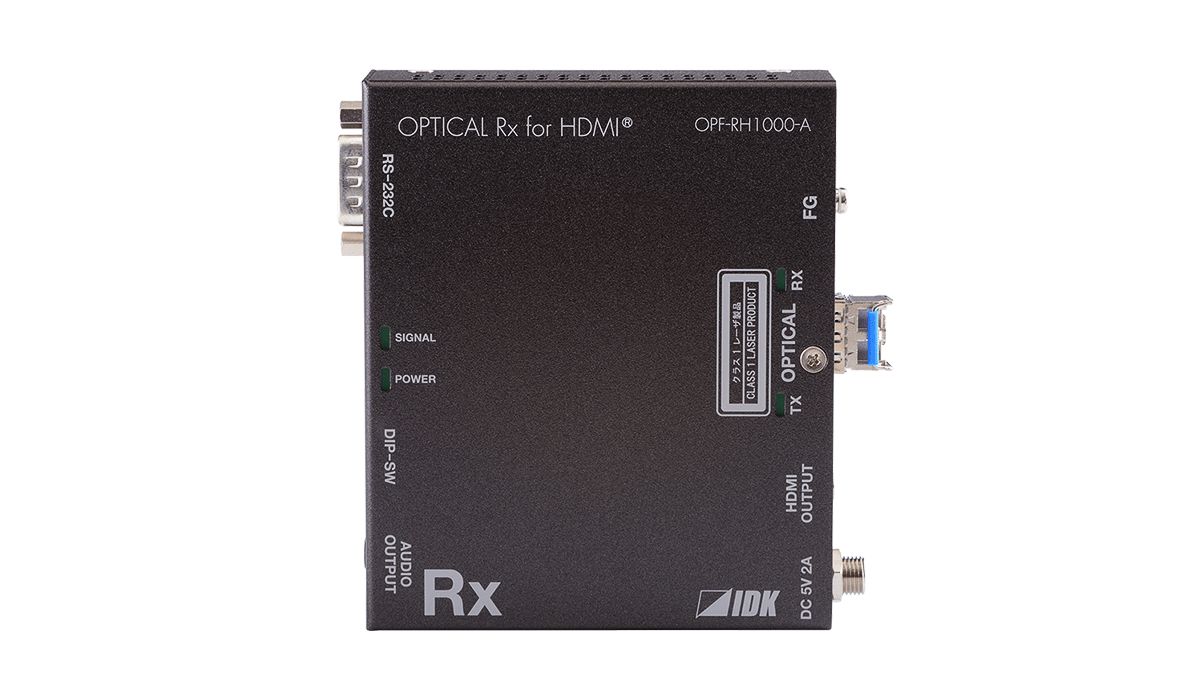

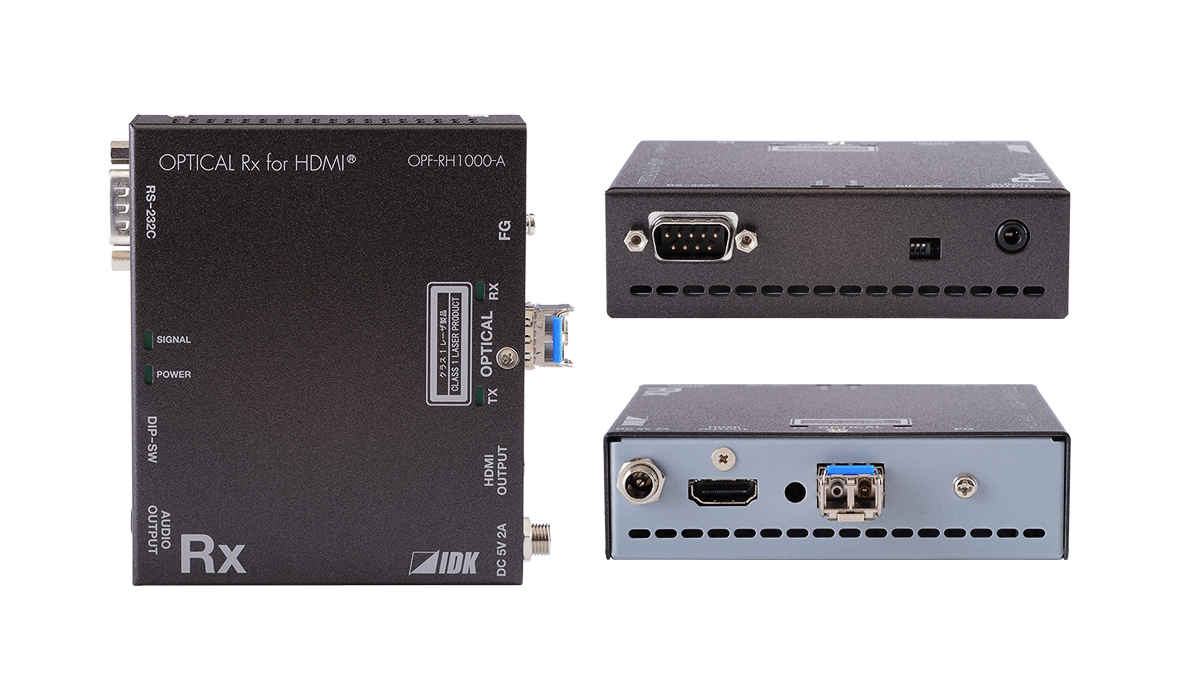

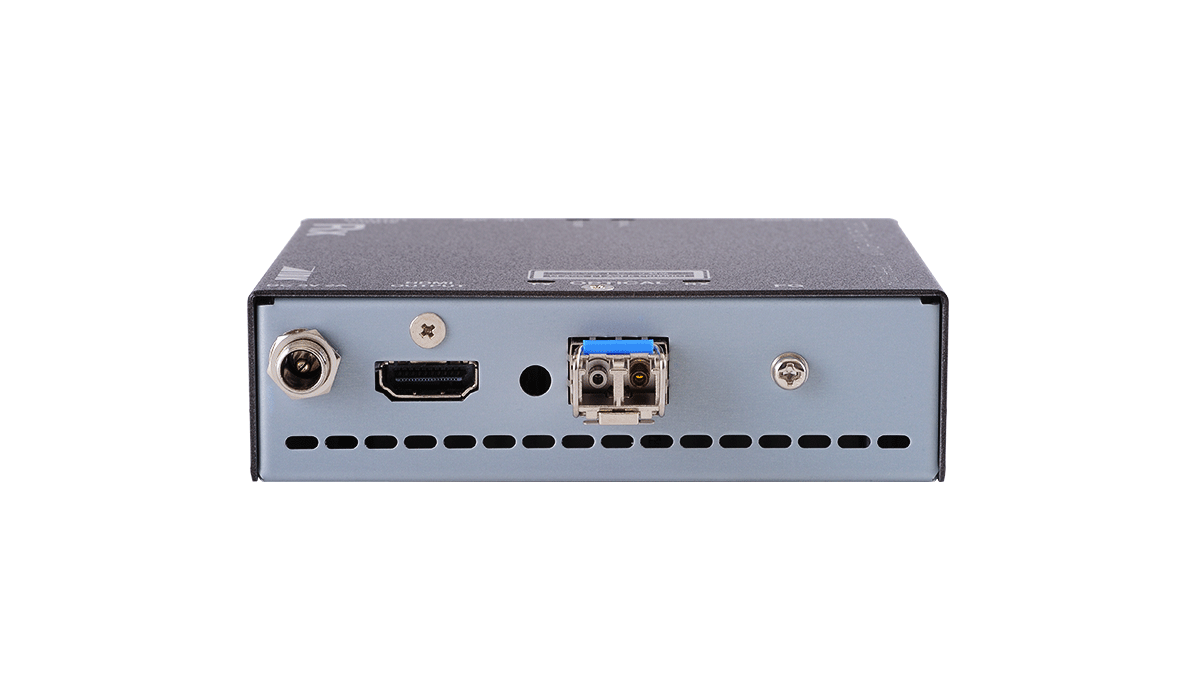

HDMI Fiber Optic Receiver OPF-RH1000-A
- Up to 1080p/WUXGA(RB)
- HDCP 1.4 (pass-through)
- Up to 300 m (Multimode fiber)
- Up to 4.7 km (Singlemode fiber)
- Analog audio and RS-232C transmission
| Status | Model number | Description |
|---|---|---|
| EOL | OPF-RH1000-A-MM | Multimode SFP+ transceiver attached |
| EOL | OPF-RH1000-A-SM | Singlemode SFP+ transceiver attached |
The IDK OPF-H1000-A Fiber Optic Extender is an extender for long haul transmission of HDCP-compliant HDMI video, stereo audio, and bidirectional RS-232 control signals over fiber optic cabling. Input signals are extended without the loss of quality since they are extended without compression.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet OPF-RH1000-A | Ver.1.10.0 | ||
| User guide OPF-RH1000-A | Ver.2.2.0 | ||
| Dimensional outline drawing OPF-RH1000-A | |||
| Dimensional outline drawing OPF-RH1000-A | DXF | ||
| Frame diagram OPF-RH1000-A-MM | DXF/DWG | ||
| Frame diagram OPF-RH1000-A-SM | DXF/DWG | ||
| PDN OPF-RH1000-A | 0.3 MB | ||
| PDN OPF-RH1000-A-MM | |||
| PDN OPF-RH1000-A-MM | 0.3 MB | ||
| PDN OPF-RH1000-A-SM | |||
| PDN OPF-RH1000-A-SM | 0.3 MB |
Description
Specifications [PDF]
Download
Options
The IDK OPF-H1000-A Fiber Optic Extender is an extender for long haul transmission of HDCP-compliant HDMI video, stereo audio, and bidirectional RS-232 control signals over fiber optic cabling. Input signals are extended without the loss of quality since they are extended without compression.
