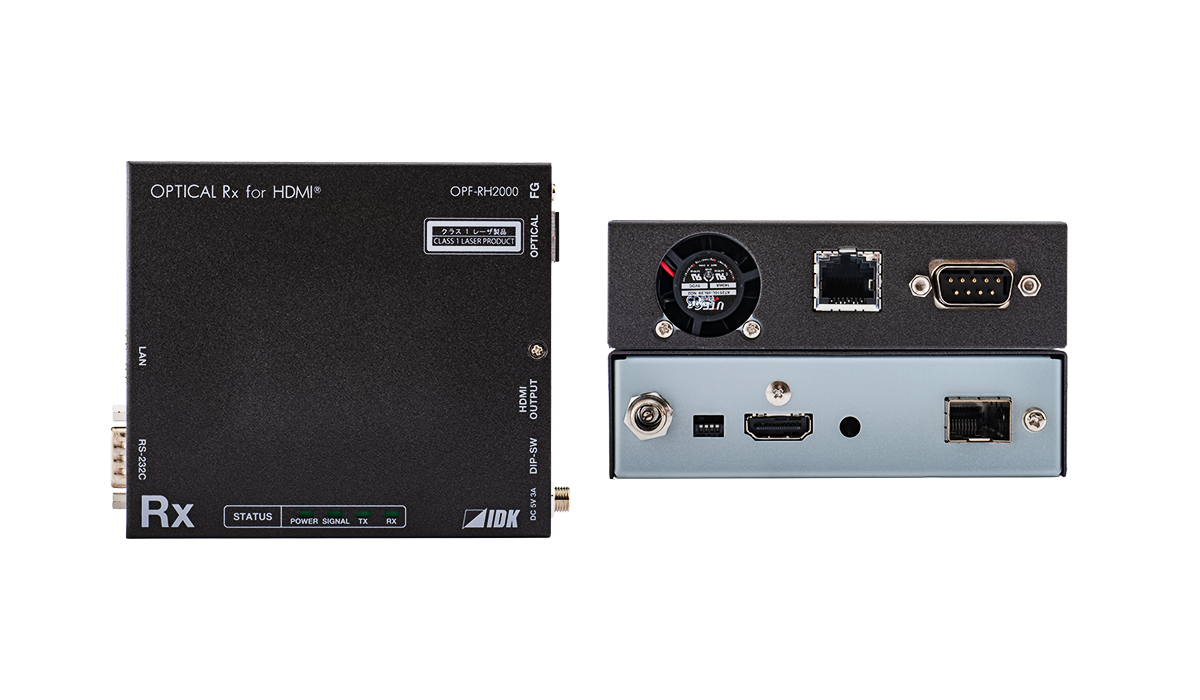

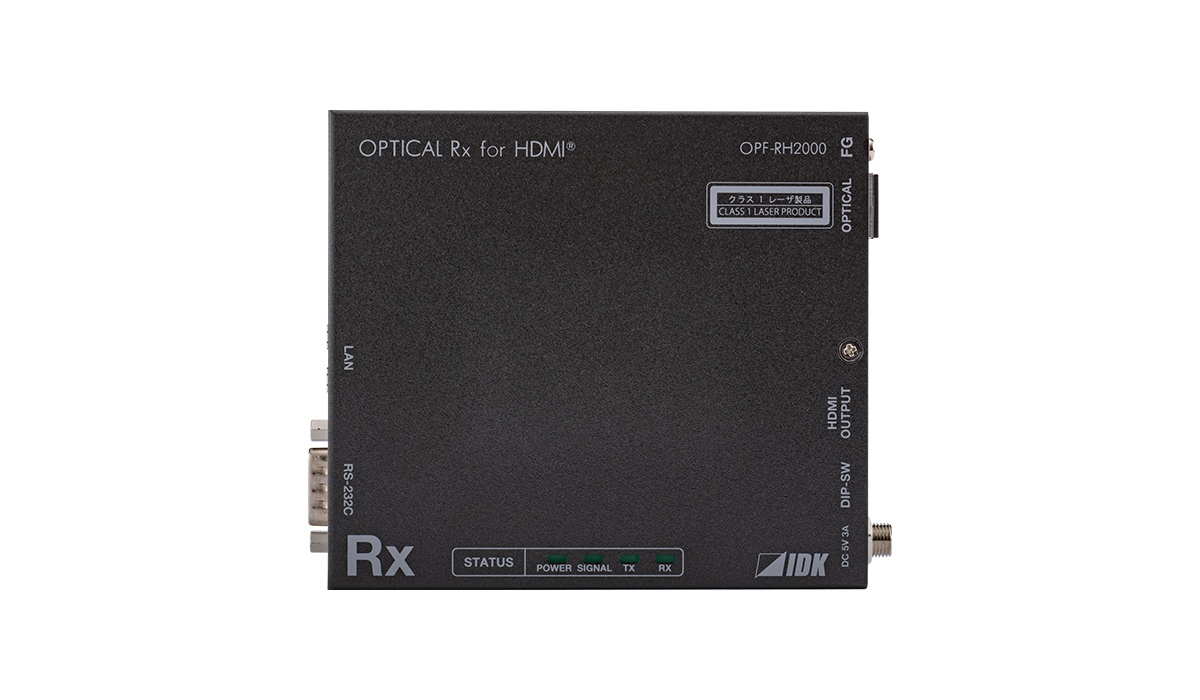

4K@60 HDMI Fiber Optic Receiver OPF-RH2000
- Up to 4K@30/4K@60 (4:2:0)
- HDCP 1.4 (pass-through)
- Up to 300 m (Multimode fiber)
- Up to 10 km (Singlemode fiber)
- LAN and RS-232C transmission
| Status | Model number | Description |
|---|---|---|
| EOL | OPF-RH2000 | No SFP+ transceiver attached |
| EOL | OPF-RH2000-MM | Multimode SFP+ transceiver attached |
| EOL | OPF-RH2000-SM | Singlemode SFP+ transceiver attached |
The IDK OPF-H2000 Fiber Optic Extender is an extender for long haul transmission of HDMI video, Giga Bit Ethernet signal, and bidirectional RS-232 control signals over fiber optic cabling. OPF-H2000 supports 4K signals. Input signals are extended without the loss of quality since they are extended without compression. *This unit cannot use with OPF-H1000-A, OPF-H1000D, and FDX series optical input/output boards.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet OPF-RH2000 | Ver.1.6.0 | ||
| User guide OPF-RH2000 | Ver.1.5.0 | ||
| Dimensional outline drawing OPF-RH2000 | |||
| Dimensional outline drawing OPF-RH2000 | DXF | ||
| Dimensional outline drawing OPF-RH2000 AC adapter | |||
| Frame diagram OPF-RH2000-MM | DXF/DWG | ||
| Frame diagram OPF-RH2000-SM | DXF/DWG | ||
| PDN OPF-RH2000 | |||
| PDN OPF-RH2000 | 0.3 MB | ||
| PDN OPF-RH2000-MM | 0.3 MB | ||
| PDN OPF-RH2000-SM | 0.3 MB |
Description
Specifications [PDF]
Download
Options
Replacement Products
The IDK OPF-H2000 Fiber Optic Extender is an extender for long haul transmission of HDMI video, Giga Bit Ethernet signal, and bidirectional RS-232 control signals over fiber optic cabling. OPF-H2000 supports 4K signals. Input signals are extended without the loss of quality since they are extended without compression. *This unit cannot use with OPF-H1000-A, OPF-H1000D, and FDX series optical input/output boards.
