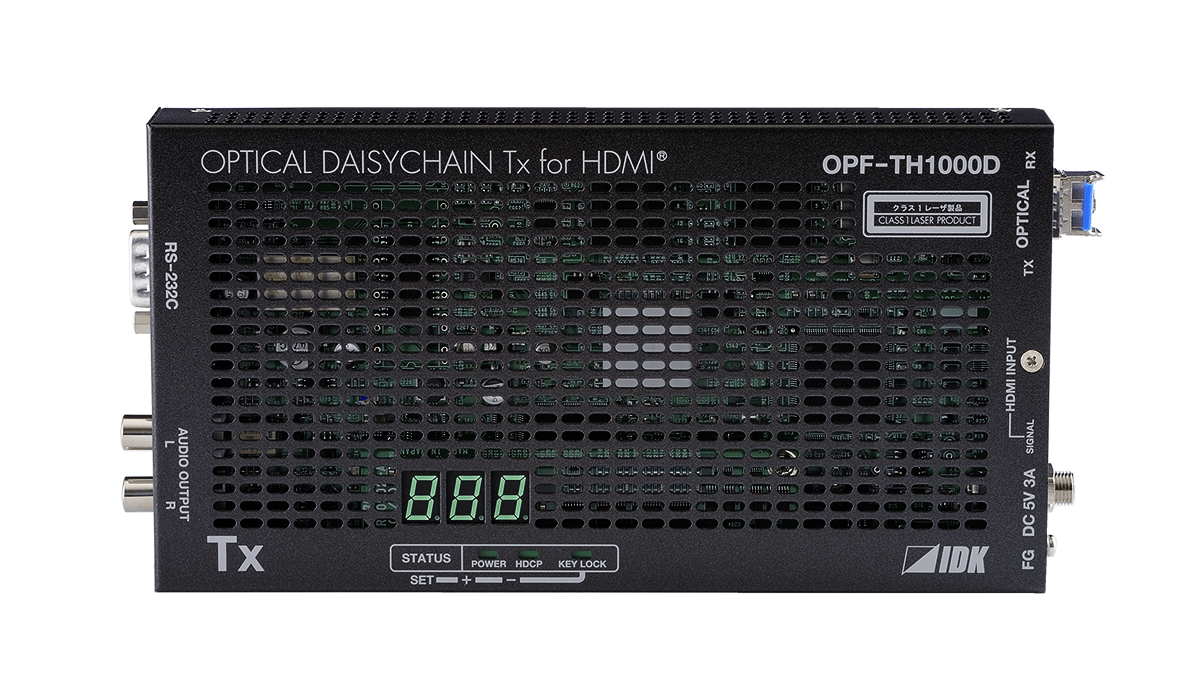

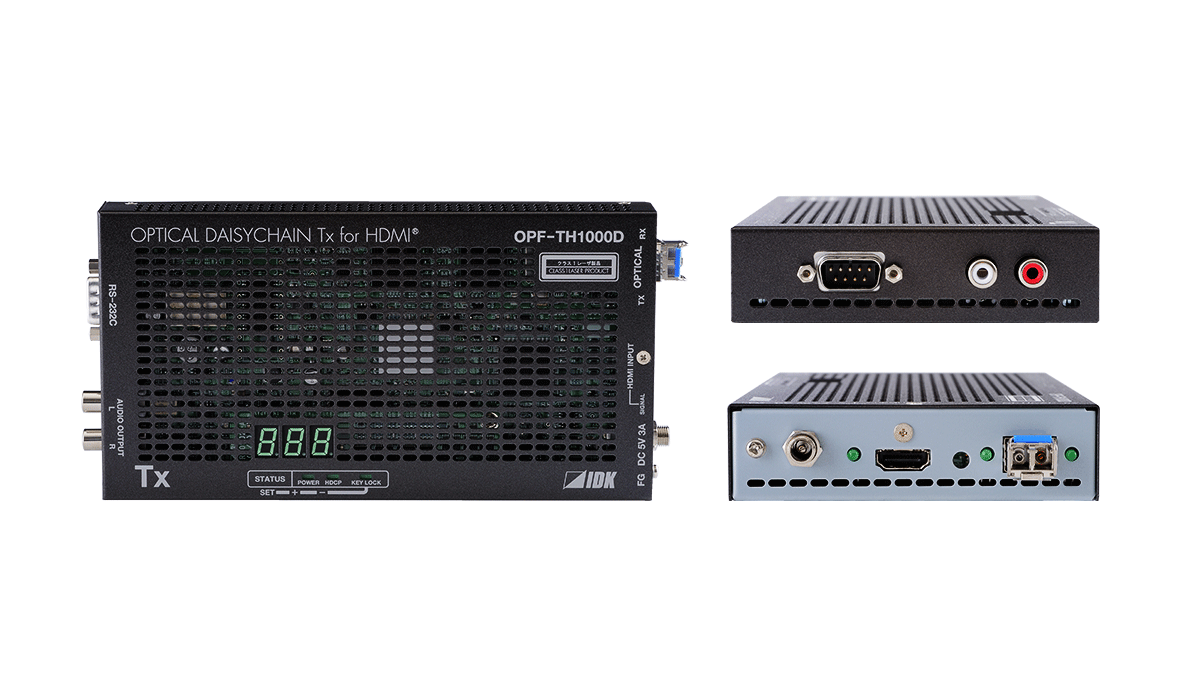

HDMI Fiber Optic Transmitter for Daisy Chain OPF-TH1000D
- Up to 1080p/WUXGA(RB)
- HDCP 1.4 (pass-through)
- Up to 300 m (Multimode fiber)
- Up to 4.7 km (Singlemode fiber)

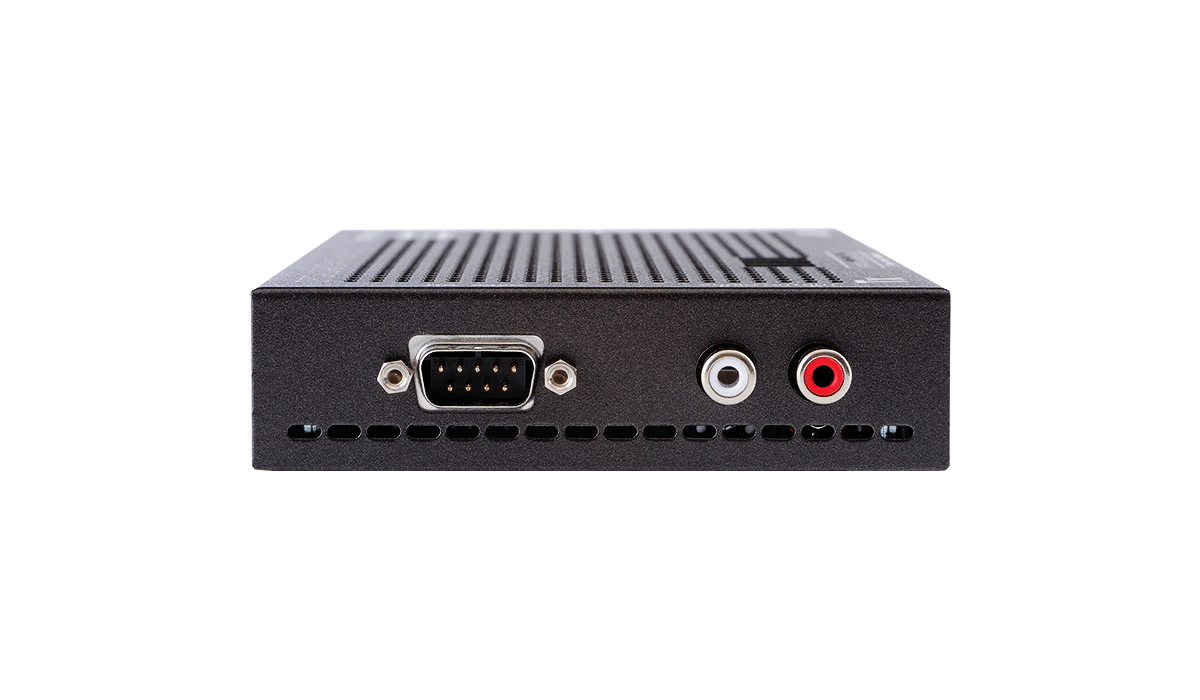

- Analog audio and RS-232C transmission
| Status | Model number | Description |
|---|---|---|
| EOL | OPF-TH1000D-MM | Multimode SFP+ transceiver attached |
| EOL | OPF-TH1000D-SM | Singlemode SFP+ transceiver attached |
The IDK OPF-1000D Fiber Optic Extender is an extender for long haul transmission of HDCP-compliant HDMI video, and unidirectional RS-232 control signals over fiber optic cabling. And it also supports Daisy Chain. Input signals are extended without quality lessening as they are extended without compression. Audio can be audio de-embedded from HDMI signal and output as analog audio at transmitter side.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet OPF-TH1000D | Ver.1.10.0 | ||
| User guide OPF-TH1000D | Ver.1.9.0 | ||
| Dimensional outline drawing OPF-TH1000D | |||
| Dimensional outline drawing OPF-TH1000D | DXF | ||
| Dimensional outline drawing OPF-TH1000D AC adapter | |||
| Frame diagram OPF-TH1000D-MM | DXF/DWG | ||
| Frame diagram OPF-TH1000D-SM | DXF/DWG | ||
| PDN OPF-TH1000D | 0.3 MB | ||
| PDN OPF-TH1000D-MM | |||
| PDN OPF-TH1000D-MM | 0.3 MB | ||
| PDN OPF-TH1000D-SM | |||
| PDN OPF-TH1000D-SM | 0.3 MB |
Description
Specifications [PDF]
Download
Options
The IDK OPF-1000D Fiber Optic Extender is an extender for long haul transmission of HDCP-compliant HDMI video, and unidirectional RS-232 control signals over fiber optic cabling. And it also supports Daisy Chain. Input signals are extended without quality lessening as they are extended without compression. Audio can be audio de-embedded from HDMI signal and output as analog audio at transmitter side.
