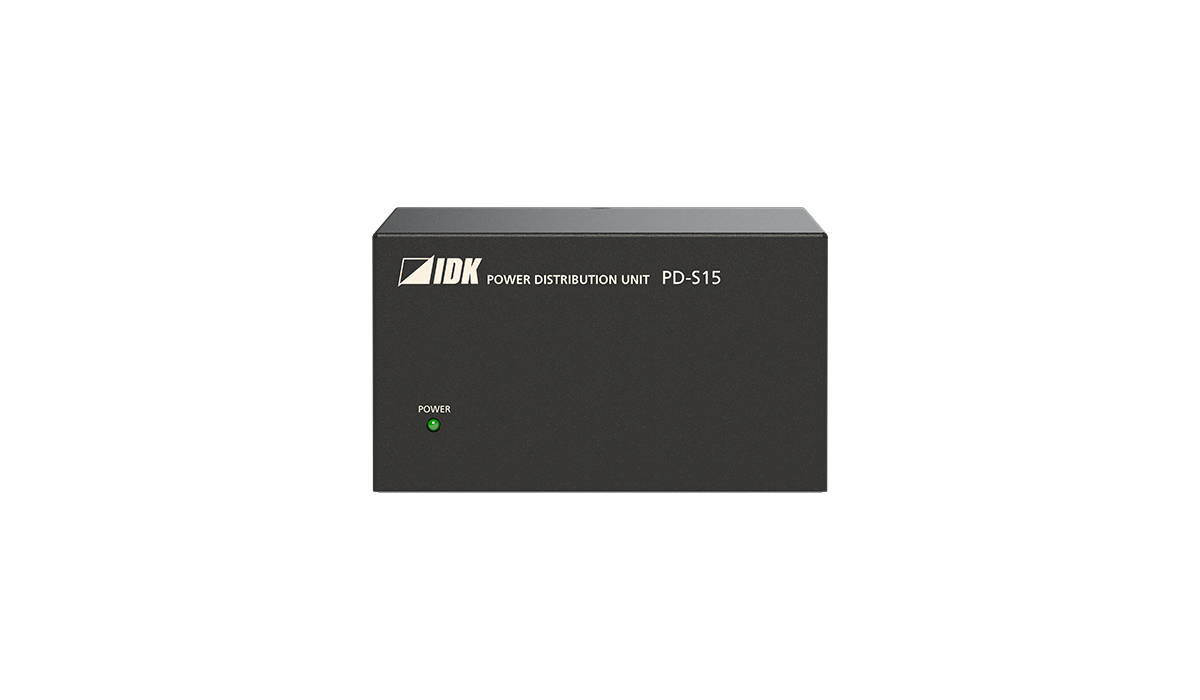

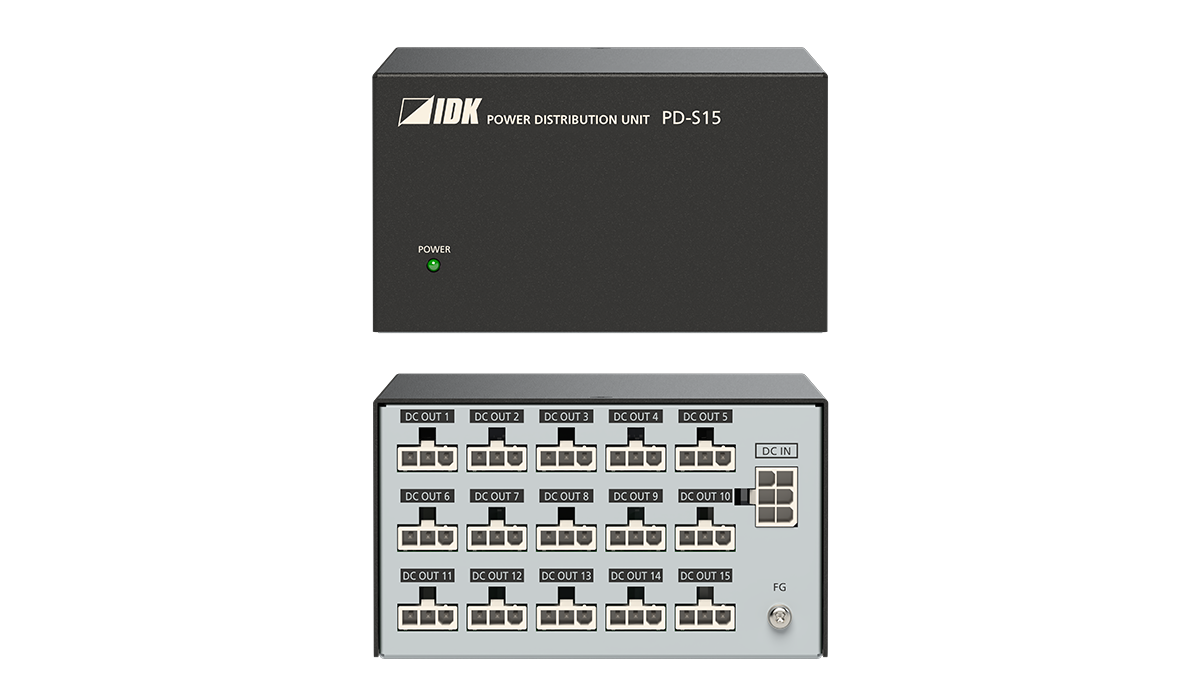

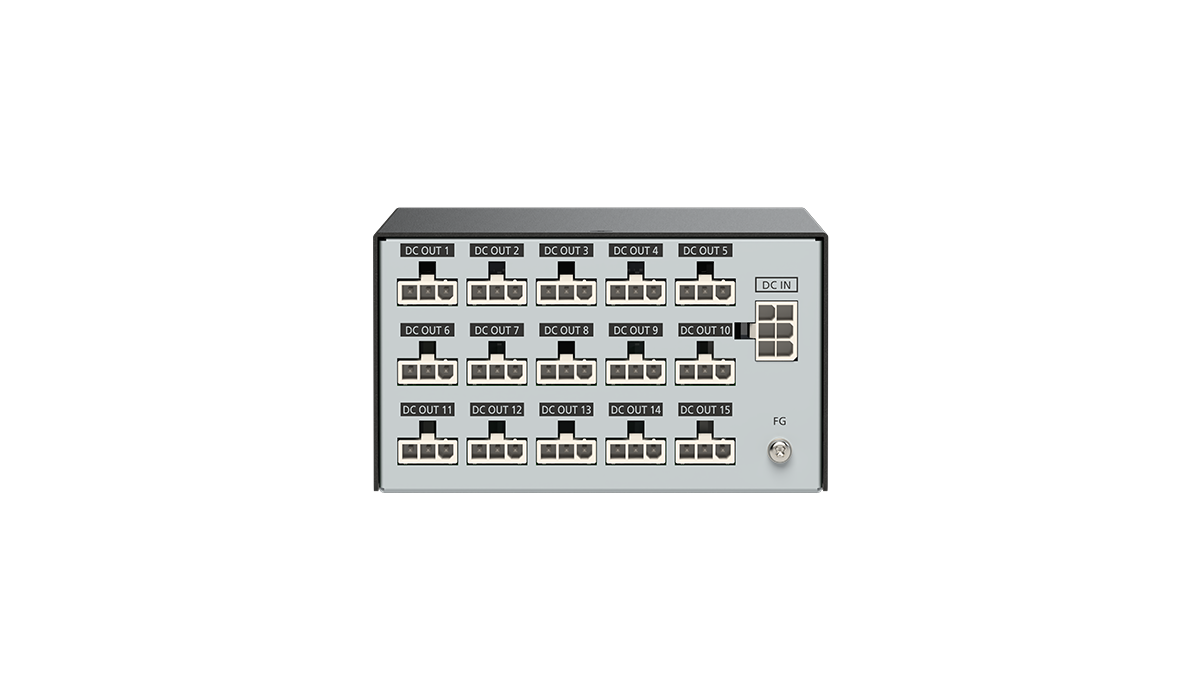

Power Distribution Unit PD-S15
- 5 V/12 V multi-power supply
- Up to 15 outputs
- Overcurrent protection
- Mountable to RM-SV series
| Status | Model number | Description |
|---|---|---|
| Available | PD-S15 | Main unit |

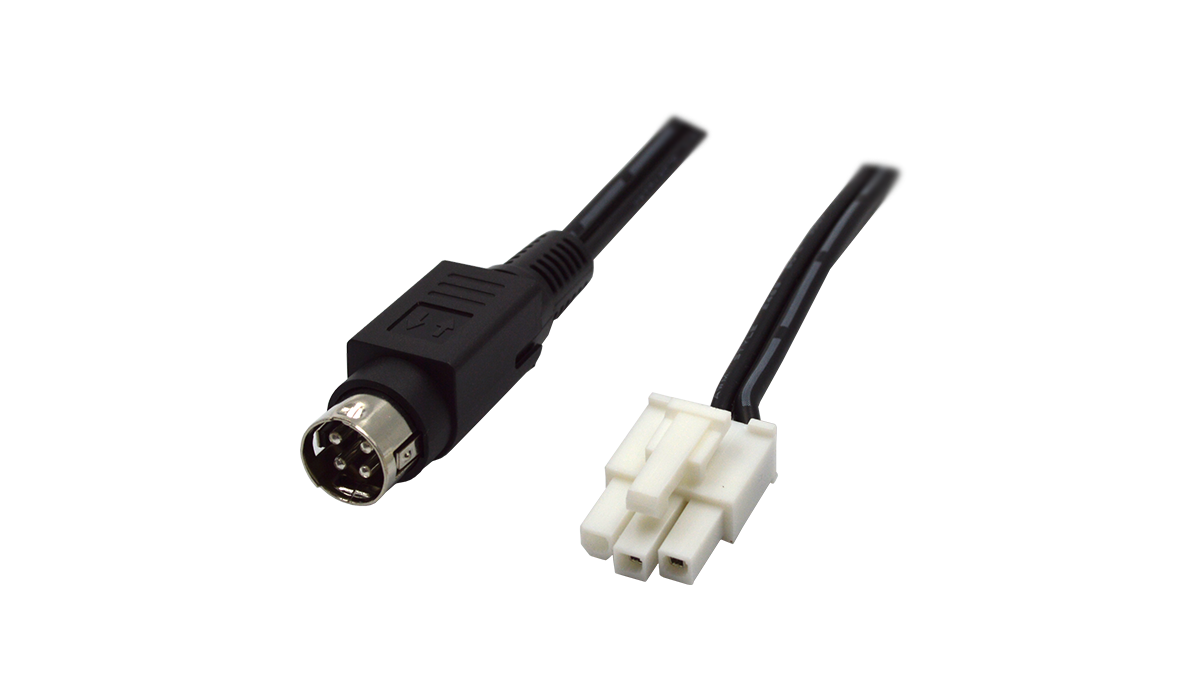

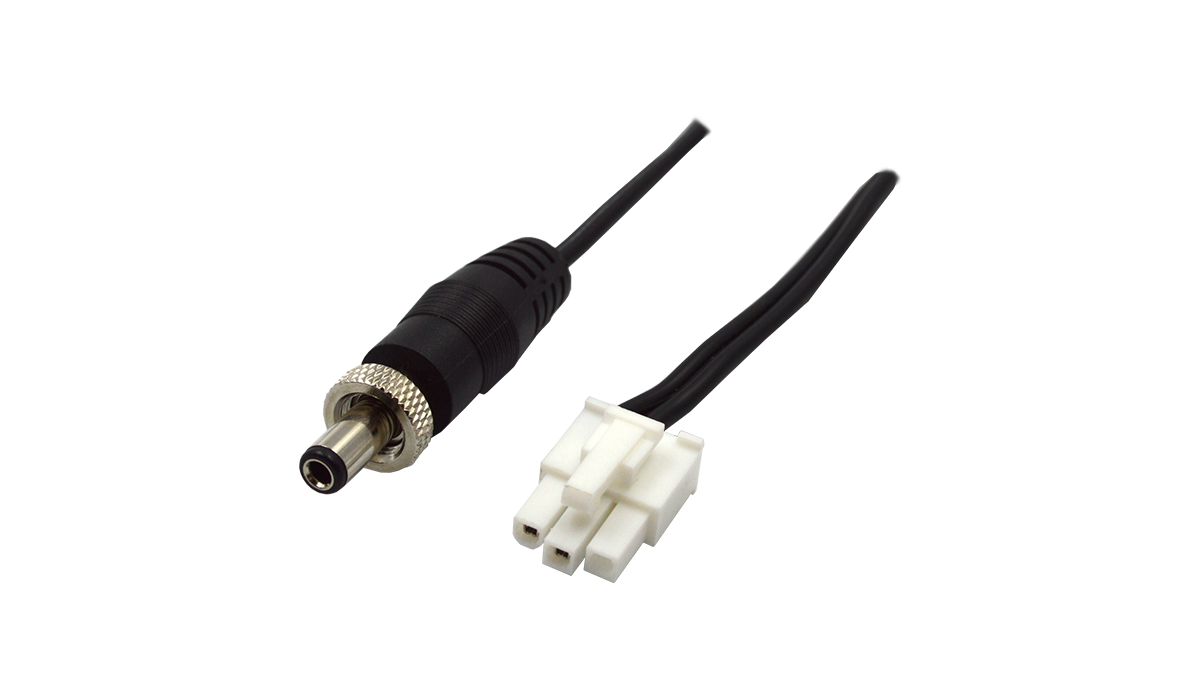

| Available | PD-CBL-5V | for 5 V products |
| Available | PD-CBL-12V | for 12 V products |

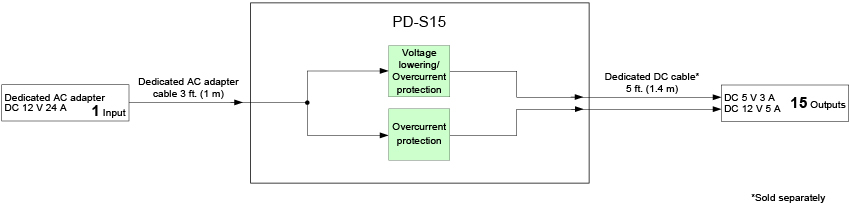

The PD-S15 is a power distribution unit with 5 V and 12 VDC power.
By using a dedicated DC power cable (sold separately), the PD-S15 supplies power to up to 15 IDK products which operate via an AC adapter.
By using a dedicated DC power cable (sold separately), the PD-S15 supplies power to up to 15 IDK products which operate via an AC adapter.
| Item | Description | |
|---|---|---|
| DC power output | 15 outputs 5 VDC, 3 A or 12 VDC, 5 A (Maximum distribution power: 230 W) ※For 150 W or more use, follow the maximum continuous operating hour and cooling requirement. |
|
| Function | Overcurrent protection | |
| General | Dimensions (Unit) | 4.2 (W) × 2.4 (H) × 5.9 (D)” (106 (W) × 61 (H) × 150 (D) mm) (Excluding connectors and the like) |
| Weight (Unit) | 1.8 lbs. (0.8 kg) | |
| AC adapter | Input : 100 - 240 VAC ±10%, 50 Hz/60 Hz ±3 Hz Output : DC 12 V 24 A 288.0 W (A dedicated AC adapter is provided) |
|
| Dimensions (AC adapter) | 4.6 (W) × 1.9 (H) × 10 (D)” (116 (W) × 47 (H) × 254 (D) mm) (Excluding connectors and the like) | |
| Weight (AC adapter) | 3.5 lbs. (1.6 kg) | |
| Power consumption | About 6.5 W | |
| Temperature | Operating: 32°F to 104°F (0°C to +40°C) Storage : -4°F to +176°F (-20°C to +80°C) |
|
| Humidity | Operating/Storage: 20% to 90% (Non Condensing) | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet PD-S15 | Ver.2.1.0 | ||
| User guide PD-S15 | Ver.2.1.0 | 1.0 MB | |
| Dimensional outline drawing PD-S15 | 0.5 MB | ||
| Dimensional outline drawing PD-S15 | 0.5 MB | DXF | |
| Frame diagram PD-S15 | 0.2 MB | DXF/DWG |
