4K@60 HDMI Distribution Amplifier VAC-4000UHD
- 1 input and 4 outputs
- Up to 4K@60 (4:4:4)
- HDCP 1.4/2.2
- De-embedding analog audio
| Status | Model number |
|---|---|
| EOL | VAC-4000UHD |

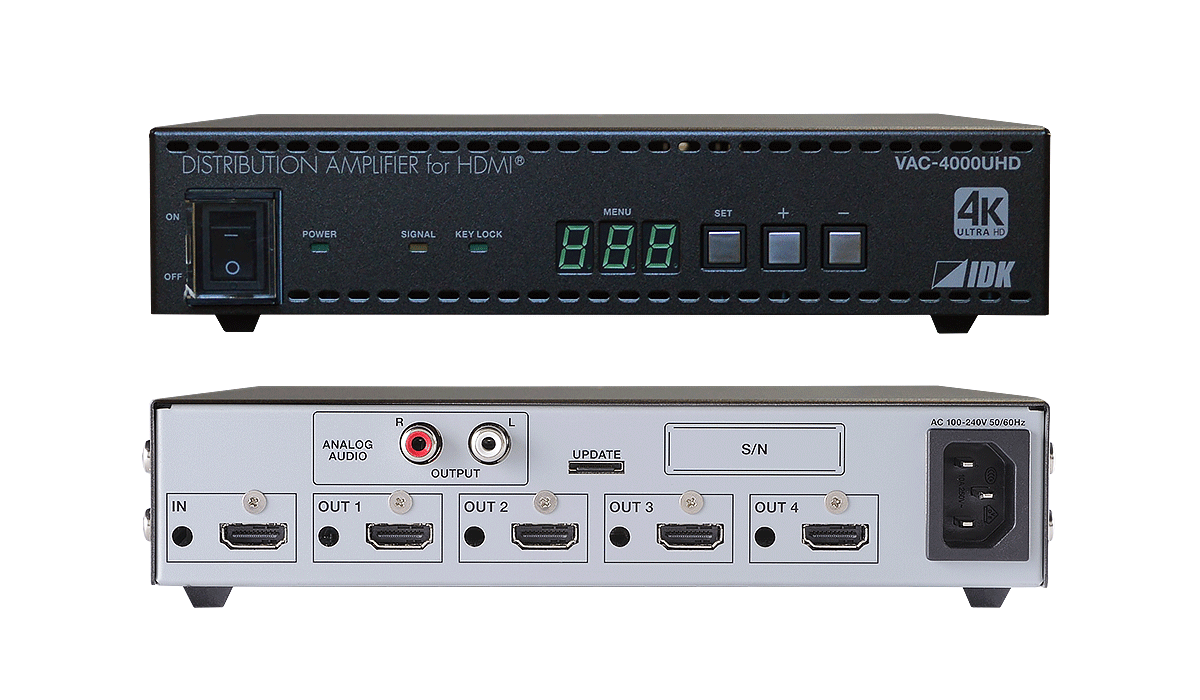

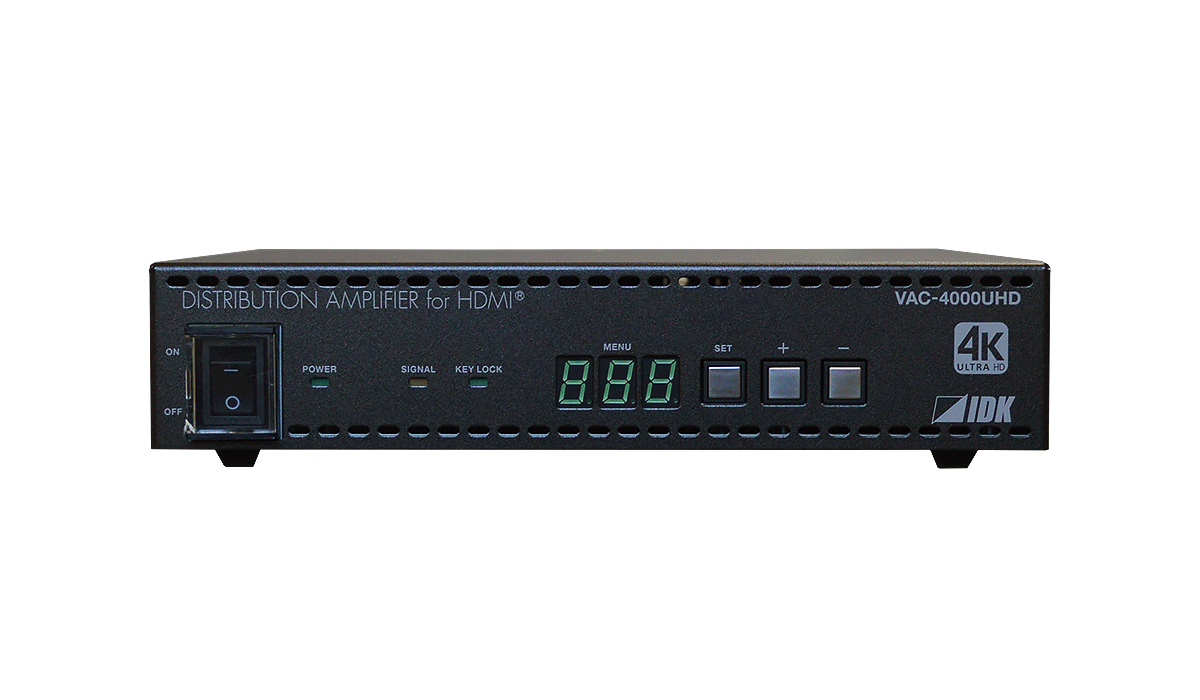

The IDK VAC-4000UHD is a high-performance HDMI distribution amplifier for video and audio supporting 4K@60 and HDCP 2.2.
The IDK VAC-4000UHD distributes 4K@60 video signals having four times the resolution of full HD to 4 HDMI outputs, which support HDCP 2.2. This distribution amplifier can convert digital audio to analog audio as well.
The IDK VAC-4000UHD distributes 4K@60 video signals having four times the resolution of full HD to 4 HDMI outputs, which support HDCP 2.2. This distribution amplifier can convert digital audio to analog audio as well.
| Item | Description | |
|---|---|---|
| Video input | Digital | 1 input / HDMI, DVI 1.0 / HDR / 3D / x.v.Color - TMDS single link - TMDS clocks: 25 MHz to 300 MHz - Dot clocks: 25 MHz to 600 MHz - TMDS data rate: 0.75 Gbps to 18 Gbps |
| Connector : 1 female HDMI Type A |
||
| Others | Color depth : 24 bit, 30 bit, 36 bit Deep Color | |
| Formats | VGA to 4K 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4K |
|
| Audio input | Digital | 1 input / Multi-channel LPCM up to 8 channels - Sampling frequency: 32kHz to 192kHz - Sample Size: 16bit to 24bit - Reference level: -20 dBFS - Max. input level: 0 dBFS |
| Connector : 1 female HDMI Type A |
||
| Video output | Digital | 4 outputs / HDMI, DVI 1.0 / HDR / 3D / x.v.Color - TMDS single link - TMDS clocks: 25 MHz to 300 MHz - Dot clocks: 25 MHz to 600 MHz - TMDS data rate: 0.75 Gbps to 18 Gbps |
| Connector : 4 female HDMI Type A |
||
| Others | Color depth : 24 bit, 30 bit, 36 bit Deep Color | |
| Formats | VGA to 4K 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4K |
|
| Audio output | Digital | 4 outputs / Multi-channel LPCM up to 8 channels - Sampling frequency: 32kHz to 192kHz - Sample Size: 16bit to 24bit - Reference level: -20 dBFS - Max. output level: 0 dBF |
| Connector : 4 female HDMI Type A |
||
| Analog | 1 output / Stereo L/R unbalanced signals - Output impedance: 75 Ω, - Reference level: -10 dBu - Max. output level: +10 dBu |
|
| Connector : 1 RCA jack |
||
| Plug & Play | DDC2B (built-in EDID / EDID copied from monitors / can be selected from EDID of connected monitors) Built-in EDID: the maximum resolution can be selected. |
|
| Max. Cable distance | Input | 1080p@60: 131 ft. |
| Output | 1080p@60: 131 ft. | |
| Functions | Contents | Audio A/D and D/A conversion, Anti-snow, De-embedded audio from HDMI signal DDC buffer, 7 segment LED signal status check, Connection Reset, Key lock |
| Others | Power | 100 - 240 VAC ± 10 %, 50 Hz/60 Hz ± 3 Hz |
| Power consumption | About 12 Watts | |
| Dimensions | 8.3 x 1.7 x 7.9’ (210 (W) x 44 (H) x 200 (D) mm) (EIA 1U high, half rack wide) (Excluding connectors and the like) |
|
| Weight | 3.3 lbs. (1.5kg) | |
| Temperature | Operating : 32°F to 104°F / 0°C to +40°C Storage : -4°F to 176°F / -20°C to +80°C |
|
| Humidity | Operating / Storage humidity : 20 % to 90 % (Non Condensing) | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet VAC-4000UHD | Ver.1.1.1 | ||
| User guide VAC-4000UHD | Ver.1.4.0 | ||
| Dimensional outline drawing VAC-4000UHD | |||
| Dimensional outline drawing VAC-4000UHD | DXF | ||
| Frame diagram VAC-4000UHD | DXF/DWG | ||
| PDN VAC-4000UHD | |||
| PDN VAC-4000UHD | 0.3 MB |
