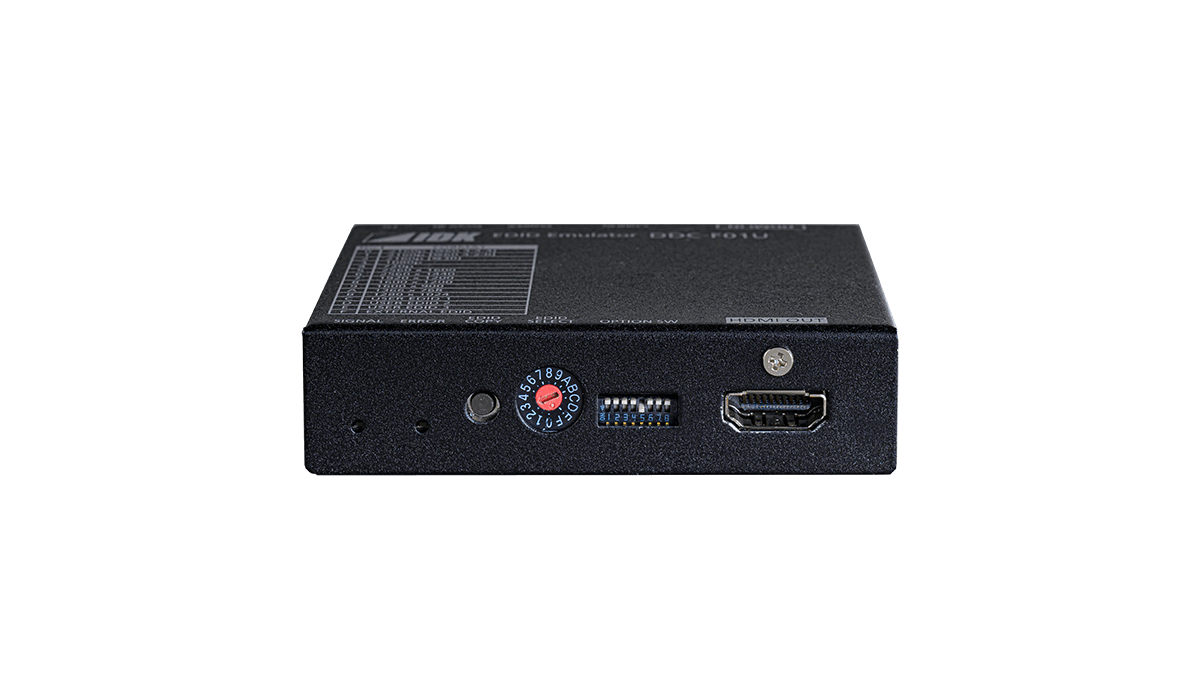

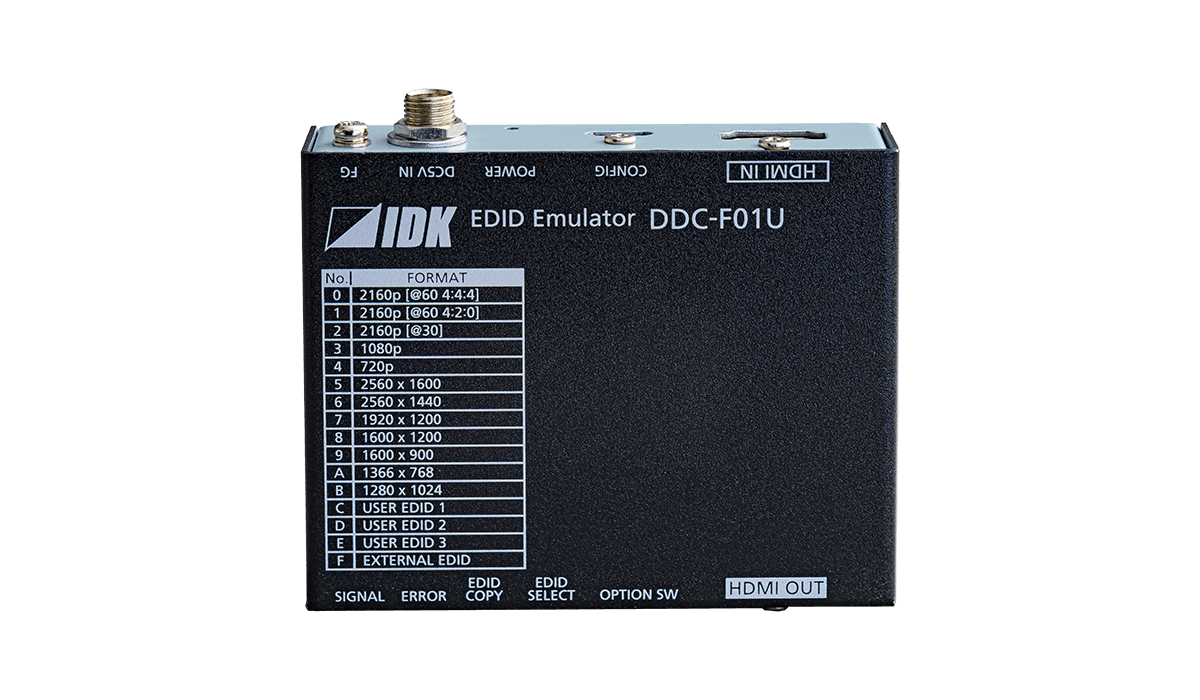

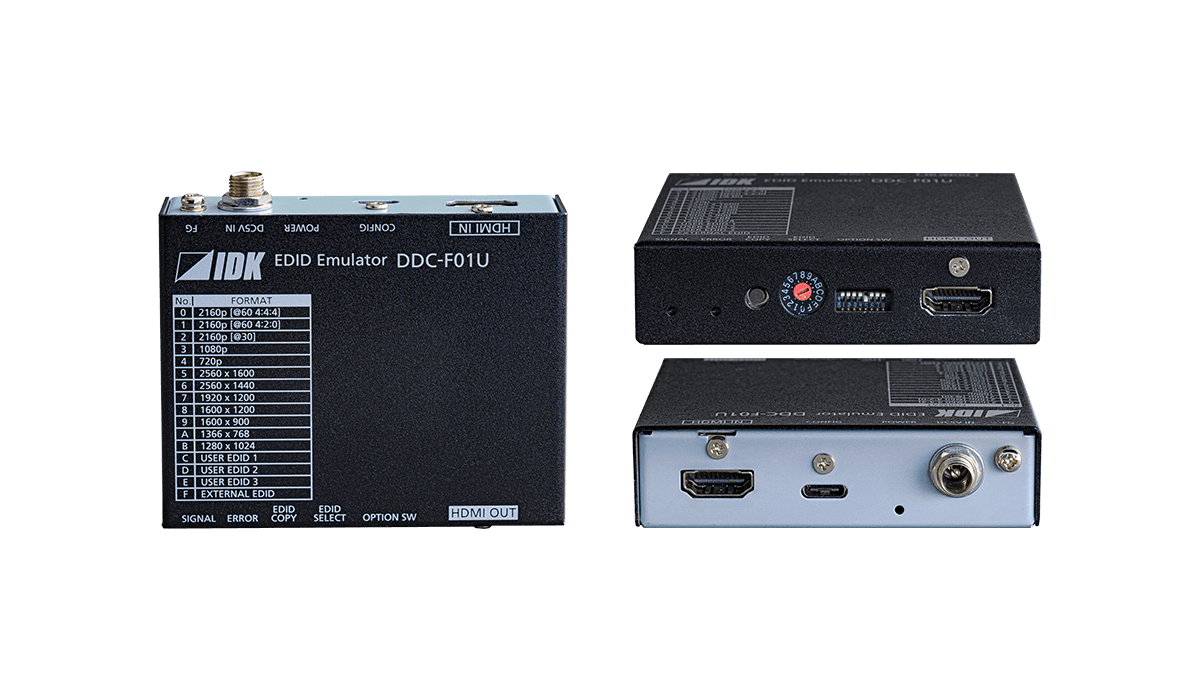

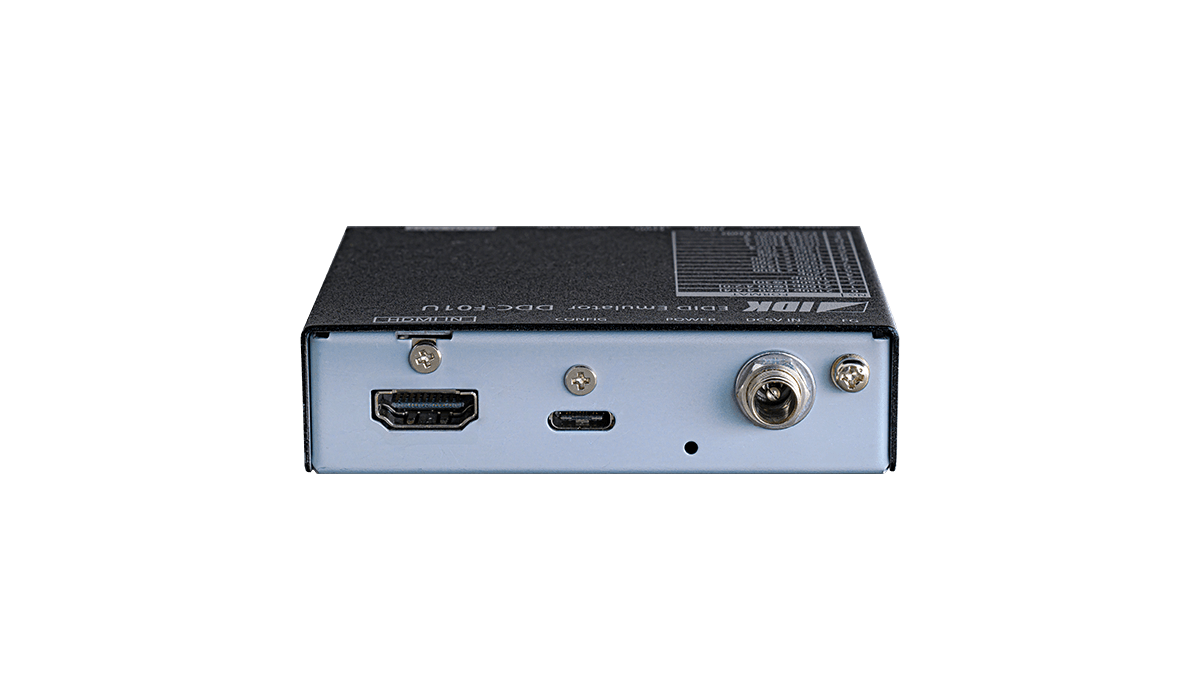

4K@60 HDMI EDID Emulator/Cable Equalizer DDC-F01U

  • Up to 4K@60 (4:4:4)
  • HDCP 1.4/2.2
  • Selecting customized EDID
  • EDID Emulation
  • Input up to 12 m: 4K@60 (4:4:4)
  • Output up to 12 m: 4K@60 (4:4:4)
  • Input up to 30 m: 1080p
  • Output up to 20 m: 1080p
Status Model number
Available DDC-F01U
The IDK DDC- F01U is an EDID emulator that supports resolutions up to 4K@60 and is HDCP 2.2 compliant.
The EDID can be selected from the built-in EDID list, connected sink device’s EDID, copied EDID of sink device, and customized EDID.

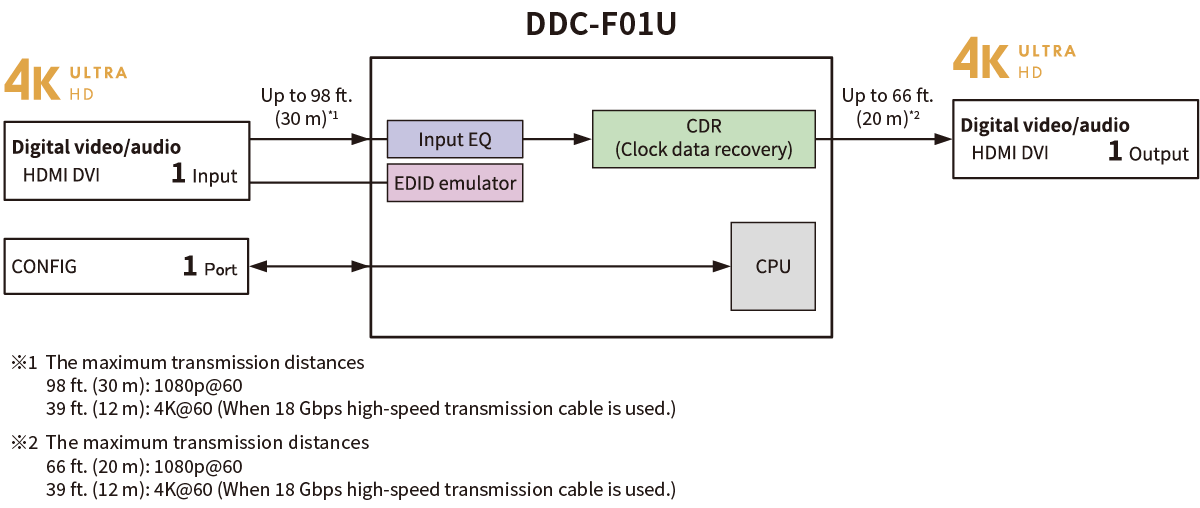

The cable equalization for input and CDR (Clock Data Recovery which repairs input signal deteriorated by the transmission line) enable long-haul video transmission.
ItemDescription
Video/Audio inputHDMI1 input
HDMI/DVI 1.0 TMDS single link, HDCP 1.4/2.2
TMDS clock: Up to 300 MHz, TMDS data rate: Up to 18 Gbps
Deep Color/ x.v.Color/3D/HDR
640x480@60 to 3840x1600@60 Reduced Blanking
480p, 576p to 3840x2160@24/25/30/50/59.94/60 (4:4:4), 3840x2160@50/59.94/60 (4:2:0),
　　　　　　 4096x2160@24/25/30/50/59.94/60 (4:4:4), 4096x2160@50/59.94/60 (4:2:0)
Color depth: 24/30/36 bits
*For all supported video signals, see the table below.
LPCM: Up to 8 channels
Sampling frequency: 32/44.1/48/88.2/96/176.4/192 kHz
CEC
Connector: HDMI Type A (19-pin)
Maximum distances: 98 ft. (30 m) (1080p@60), 39 ft. (12 m) (4K@60)
Video/Audio outputHDMI1 input
HDMI/DVI 1.0 TMDS single link, HDCP 1.4/2.2
TMDS clock: Up to 300 MHz, TMDS data rate: Up to 18 Gbps
Deep Color/ x.v.Color/3D/HDR
640x480@60 to 3840x1600@60 Reduced Blanking
480p, 576p to 3840x2160@24/25/30/50/59.94/60 (4:4:4), 3840x2160@50/59.94/60 (4:2:0),
　　　　　　 4096x2160@24/25/30/50/59.94/60 (4:4:4), 4096x2160@50/59.94/60 (4:2:0)
Color depth: 24/30/36 bits
*For all supported video signals, see the table below.
LPCM: Up to 8 channels
Sampling frequency: 32/44.1/48/88.2/96/176.4/192 kHz
CEC
Connector: HDMI Type A (19-pin)
Maximum distances: 66 ft. (20 m) (1080p@60), 39 ft. (12 m) (4K@60)
Control I/FCONFIG1 port/Connector: USB Type-C
FunctionsCEC through, EDID emulation, Audio input enabling/disabling, HDCP input enabling/disabling,
Cable equalization (Input/Output), Connection reset pass through
GeneralPowerDC 5 V 0.3 A
AC adapter: AC 100 V - 240 V ±10%, 50 Hz/60 Hz ±3 Hz, DC 5 V 2 A 10.0 W
Power consumption2 W
Dimensions3.5 (W) × 0.9 (H) × 2.8 (D)” (88 (W) ×23 (H) ×70 (D) mm) (Excluding connectors and the like)
Weight0.4 lgs. (0.2 kg)
TemperatureOperating: 32°F to 104°F (0°C to +40°C), Storage: -4°F to +176°F (-20°C to +80°C)
Humidity20% to 90% (Non Condensing)
* Specifications are subject to change without notice.
  For the latest specification, please see product specification in PDF format.
DDC-F01U PR
1:18
Technical documents Version Size Format
Spec sheet DDC-F01U Ver.1.0.0 0.3 MB PDF
User guide DDC-F01U Ver.1.0.0 0.6 MB PDF
Operation guide DDC-F01U Ver.1.0.0 0.7 MB PDF
Dimensional outline drawing DDC-F01U 0.5 MB PDF
Dimensional outline drawing DDC-F01U 0.2 MB DXF
Frame diagram DDC-F01U 0.4 MB DXF/DWG
