HDBaseT Power Injector HDC-P1502

PoH power injection
Automatic status detection and remove power
Supply power to Tx and Rx simultaneously

Status	Model number
Available	HDC-P1502

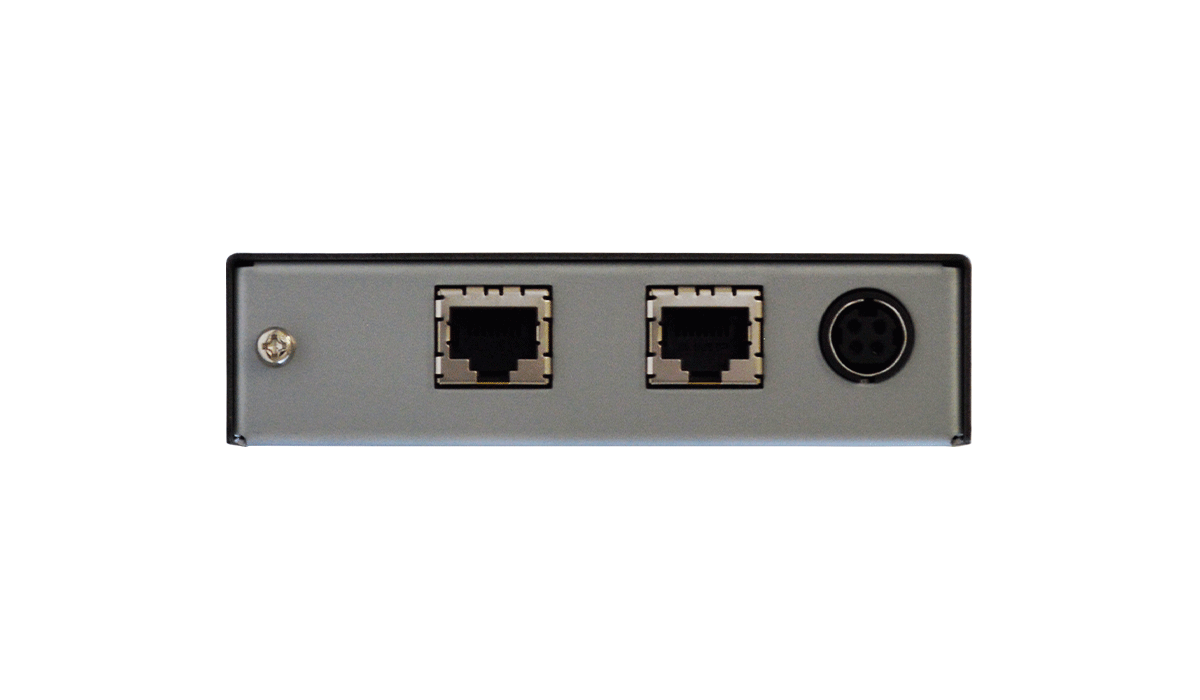

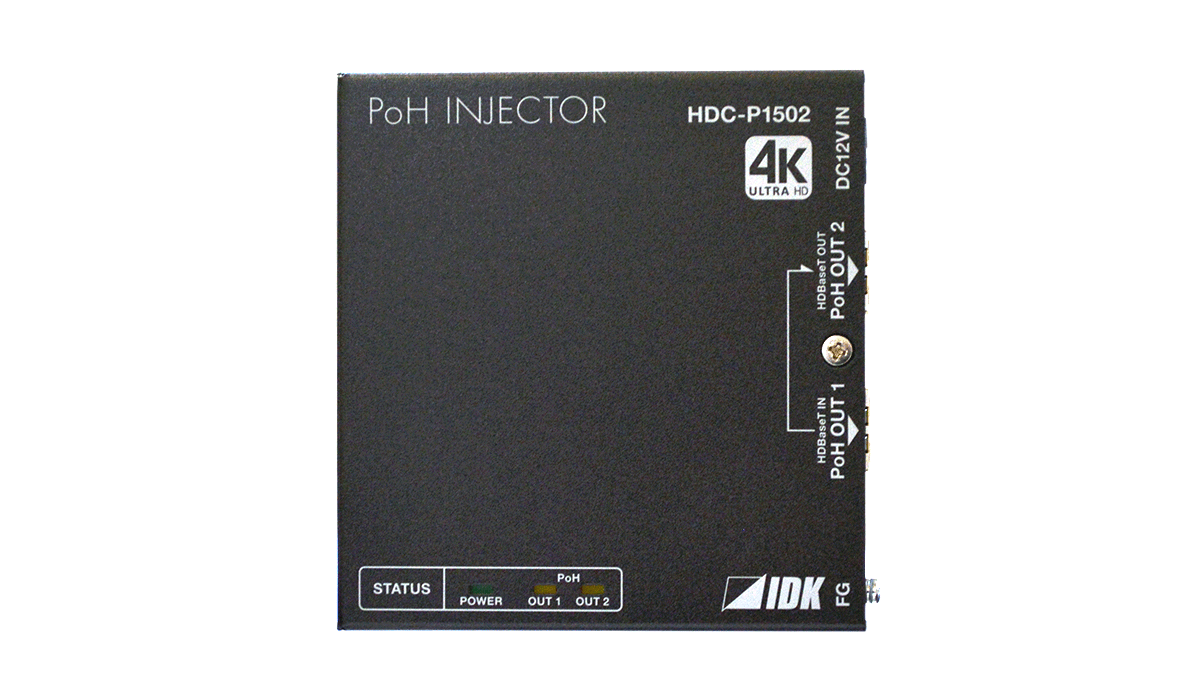

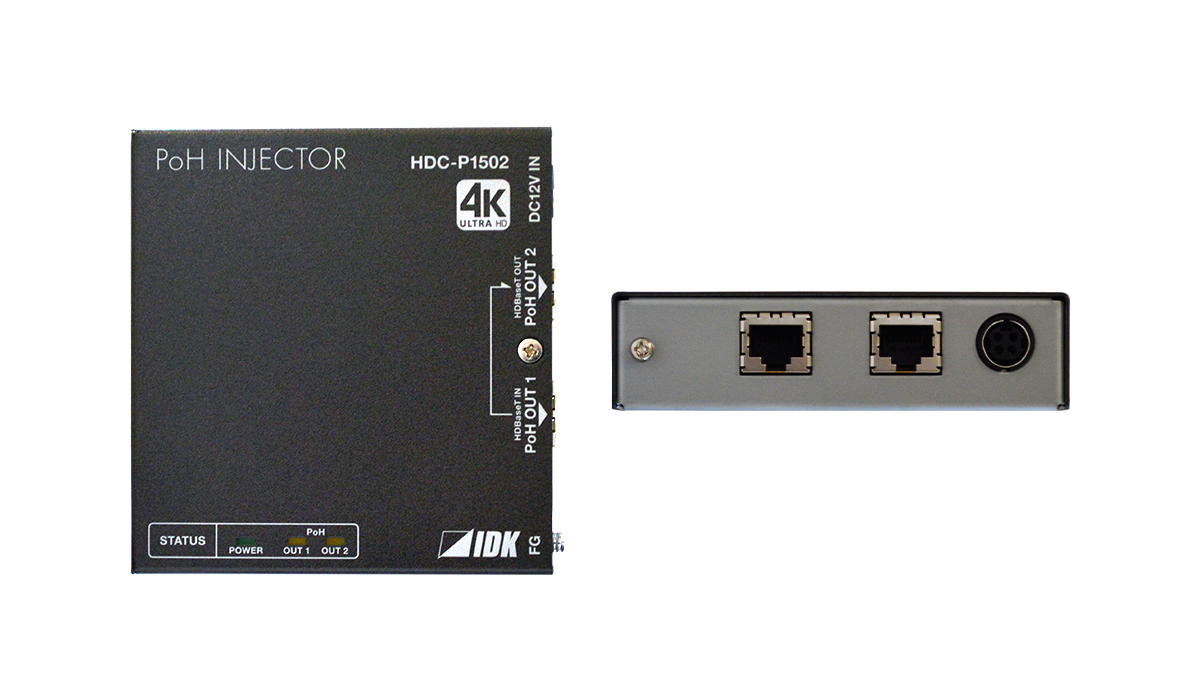

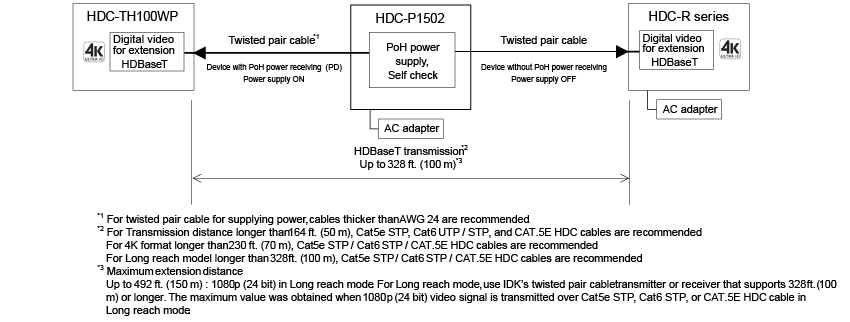

The HDC-P1502 is a single port power injector that supplies power to a PoH transmitter and receiver, such as HDC-TH100WP (Wall-plate HDMI twisted pair cable transmitter). Since the injector provides power to a transmitter and receiver (up to 15 W per device) simultaneously by installing within the HDBaseT transmission line, it eliminates the need for a local power supply. The HDC-P1502 stops supplying power if detecting PoH incompliant, twisted pair cable’s short, overload, and heat problem.

Item		Description
Input		1 input HDBaseT PoH power supply (PSE) (equivalent to IEEE802.3af) Connector: RJ-45
Output		1 input HDBaseT PoH power supply (PSE) (equivalent to IEEE802.3af) Connector: RJ-45
Cable		Cat5e UTP / STP, Cat6 UTP / STP, CAT.5E HDC cable
Maximum extension distance		The distance may be 10% shorter than the shorter one of transmitter / receiver and transmitter / sink device.
General	AC Adapter	Input: 100 - 240 VAC ±10%, 50 Hz/60 Hz ±3 Hz Output: DC 12 V 3 A 36.0 W (AC adapter is supplied)
	Power consumption	About 32 W
	Dimensions	4.2 (W) × 1.1 (H) × 3.9 (D)” (106 (W) × 27.5 (H) × 100 (D) mm) (EIA quarter rack wide) (Excluding connectors and the like)
	Weight	0.7 lbs. (0.3 kg)
	Temperature	Operating: 32°F to 104°F (0°C to +40°C) Storage: -4°F to +176°F (-20°C to +80°C)
	Humidity	Operating/ Storage: 20% to 90% (Non Condensing)

* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.

Technical documents	Version	Size	Format
Spec sheet HDC-P1502	Ver.1.0.1	0.3 MB	PDF
User guide HDC-P1502	Ver.1.2.0	0.7 MB	PDF
Dimensional outline drawing HDC-P1502		0.1 MB	PDF
Dimensional outline drawing HDC-P1502		0.1 MB	DXF
Frame diagram HDC-P1502		0.2 MB	DXF/DWG
