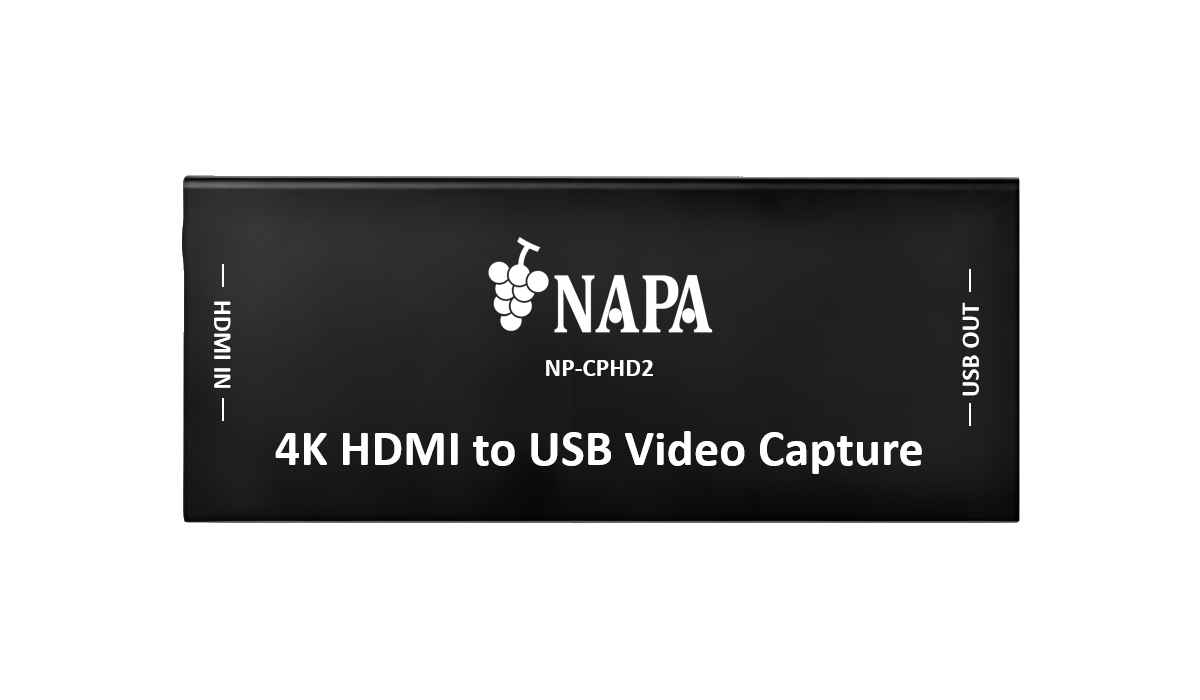

4K@60 Input / USB 5Gbps HDMI to USB Converter NP-CPHD2
- HDMI to USB conversion
- USB Video Class
- Up to 4K@60 (4:4:4)
- Embedding analog audio
- Operate only using power supply from PC
- No software installation required
| Status | Model number |
|---|---|
| Available | NP-CPHD2 |
NP-CPHD2 is a high-quality capture device which is designed for HDMI video capture applications. It supports up to 1 channel of Ultra high-definition, 4K@60 video from HDMI source and selectable 3.5mm audio source. There is no need to install a special driver to PC and external power is unnecessary by USB bus power.
| Item | NP-CPHD2 | |
|---|---|---|
| Video / Audio Input | HDMI | 1 input |
| HDMI/DVI 1.0 TMDS single link TMDS clock: Up to 300 MHz, TMDS data rate: Up to 18 Gbps Deep Color *HDCP is not supported |
||
| 640x480@60 to 2560x1600@60 Reduced Blanking 480i, 576i to 3840x2160@ 24/25/30/50/59.94/60 (4:4:4), 3840x2160@ 50/59.94/60 (4:2:0) Color Depth: 24/30/36 bits *For all supported video signals, see the table below. |
||
| LPCM: Up to 2 channels Sampling frequency: 32/44.1/48 kHz Reference level: -20 dBFS, Max. input level: 0 dBFS |
||

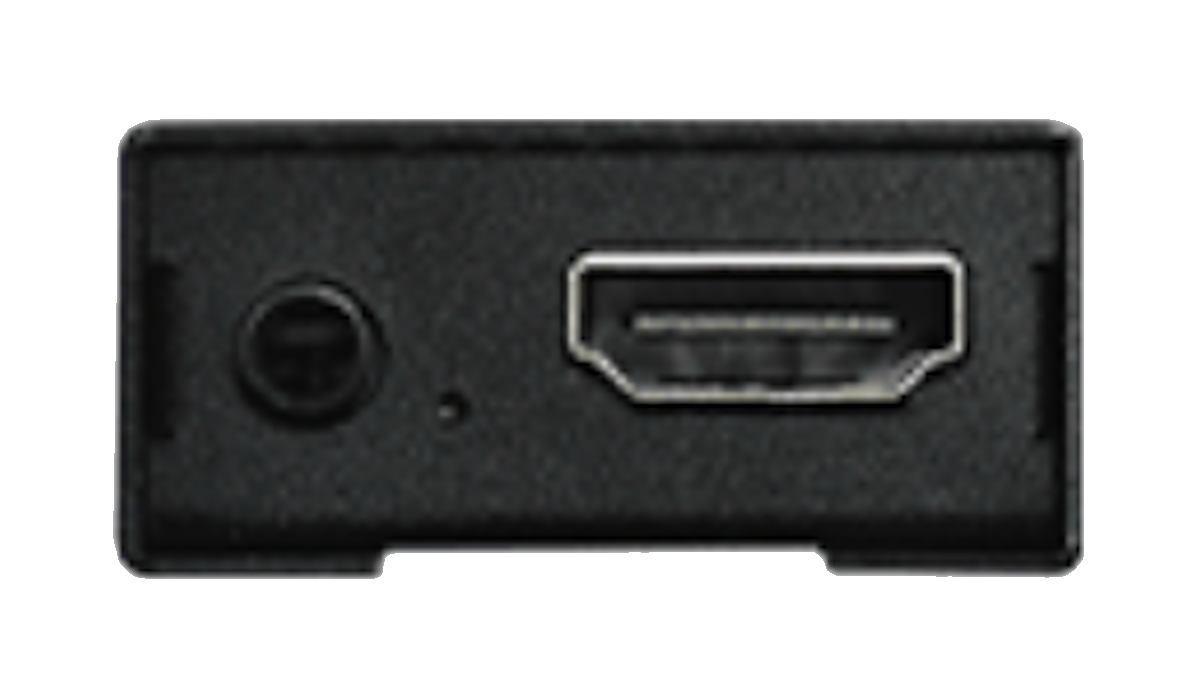

| Connector: HDMI Type A (19-pin) Maximum distance: 5 m |
||
| Analog Audio | 1 input Stereo L/R Input impedance: 10 kΩ unbalanced Reference level: -10 dBu, Max. input level: +10 dBu |
|
| Connector: 3.5 mm Stereo Audio jack | ||
| Video / Audio Output | USB | 1 output |
| USB 3.2 Gen1x1 / USB 2.0 Transfer data rate: 5 Gbps |
||
| USB 3.2 Gen1x1] 640×480p@25/30/50/60, 720×480p@25/30/50/60, 720×576p@25/30/50/60, 1280x720p@25/30/50/60,1920×1080p@25/30/50/60/100/120, 2560×1440p@25/30/50/60, 3840x2160p@25/30 [USB 2.0] 640×480p@60, 720×480p@60, 720×576p@50, 1280x720p@30 *For all supported video signals, see the table below. |
||
| USB Video Class USB Audio Class Stereo / 16 bit / 48 kHz Available Video format: YUY2、NV12、P010、RGB24 (USB 3.2 Gen1x1) YUY2、NV12 (USB 2.0) |
||

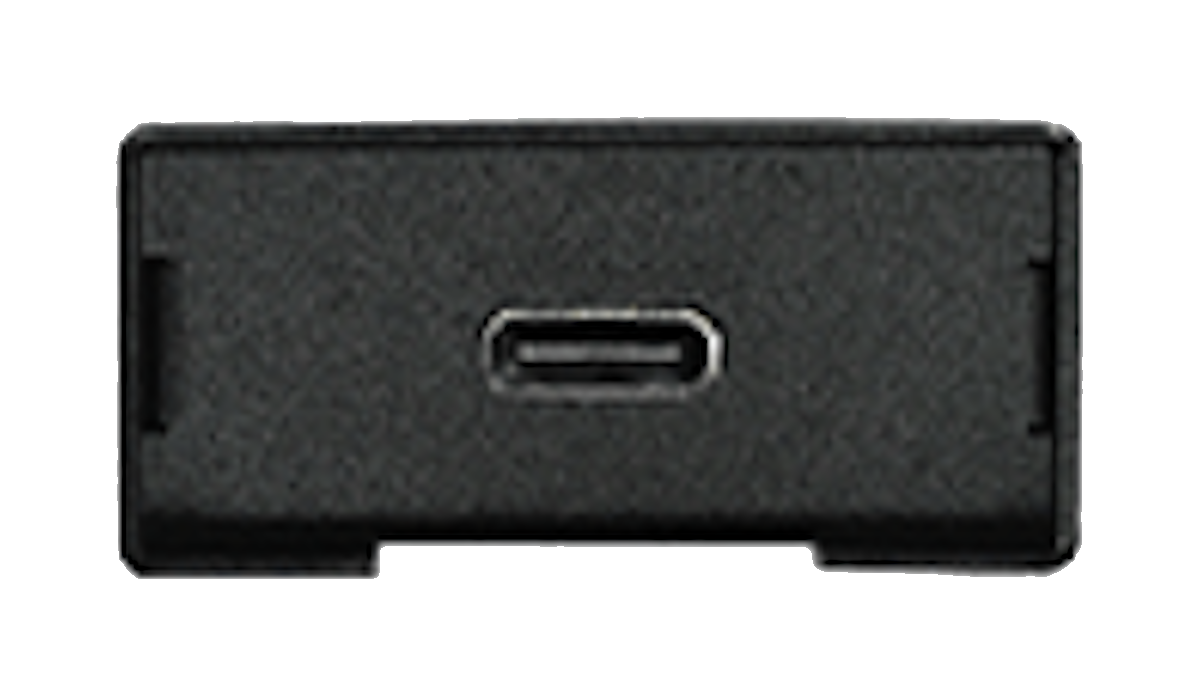

| Connector: USB Type-C (24 pin) Maximum distance: 2 m |
||
| General | OS | Windows 10 / Windows 11, macOS |
| Power | Supply 5V from connected Host devices | |
| Power consumption | 1.7 W | |
| Dimensions | 36.3 (W) × 17.1 (H) × 87.3 (D) mm | |
| Weight | 91 g | |
| Temperature | Operating: 0°C ～ +40°C、Storage: -20°C ～ +60°C | |
| Humidity | 20% ～ 90% | |
| Accessories | USB 3.2 Gen1x1 Cable (Type-A･Male - Type-C･Male) 2m Audio Cable (3.5 mm Stereo-mini-RCA pin-jack x2) 10cm |
|
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet NP-CPHD2 | Ver.1.0.0 | 0.2 MB | |
| User guide NP-CPHD2 | Ver.1.2.1 | 0.5 MB |
