How to specify model number

4K@60 Modular Matrix Switcher FDX-32UHD

  • Up to 32 inputs (8 input boards)
  • Up to 32 outputs (8 output boards)
  • Up to 4K@60 (4:4:4)
  • HDCP 1.4/2.2
  • Customizable I/O boards
Status Model number
EOL FDX-32UHD

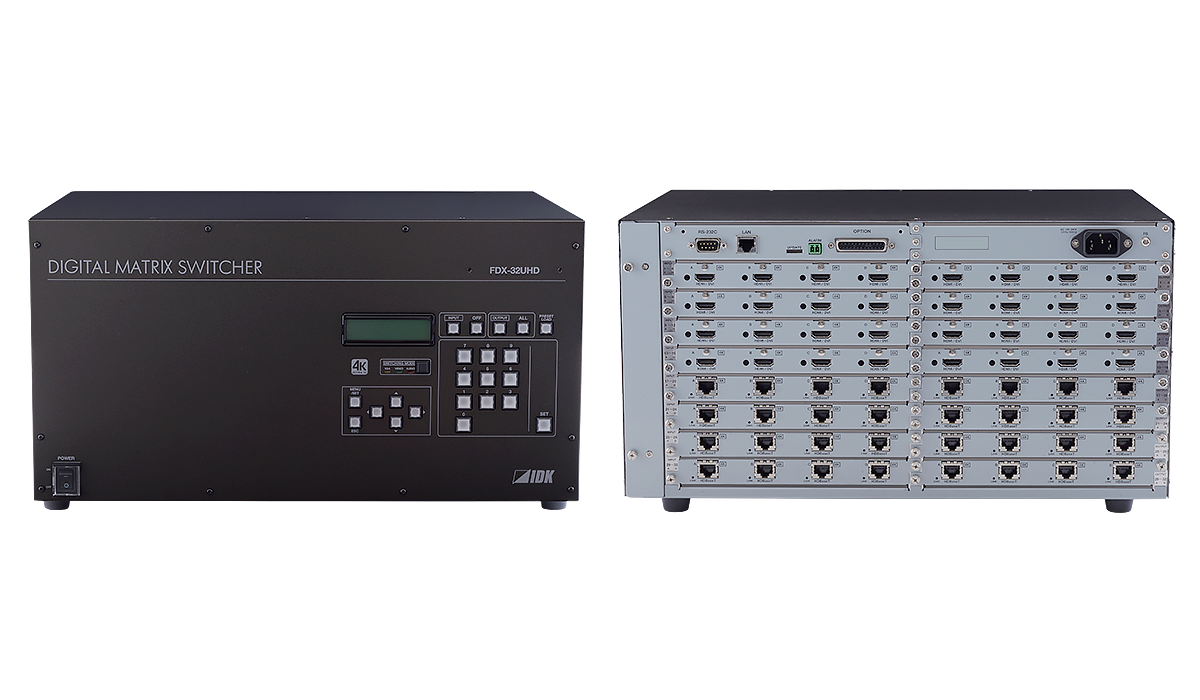

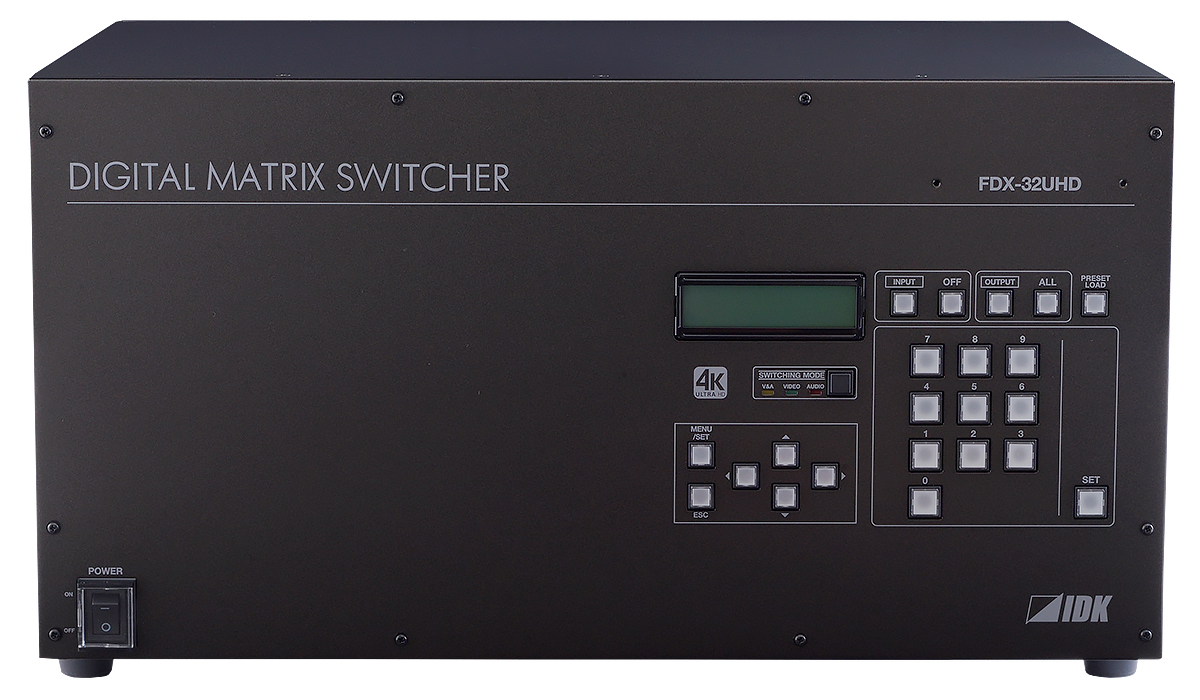

The IDK FDX-32UHD is a new level of Digital Matrix Switcher for AV systems which supports resolution up to 4K @60 and HDCP2.2.

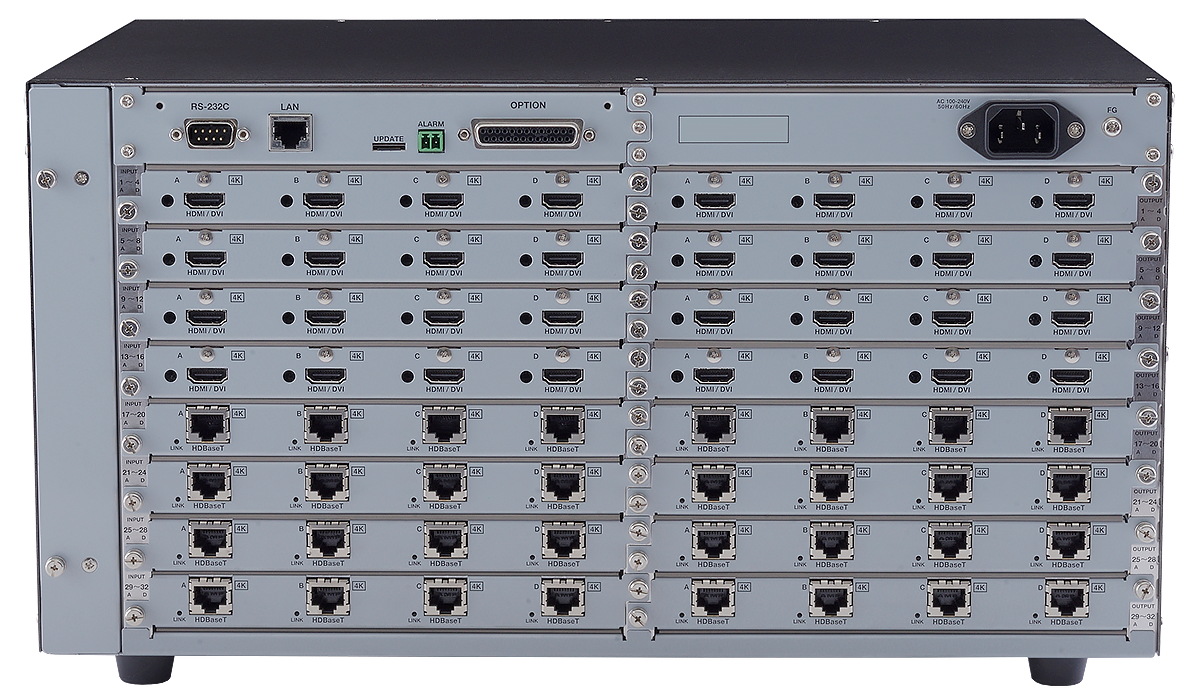

The FDX-32UHD can input/output HDCP protected contents such as Blu-ray, and it can support DVI signal by using HDMI to DVI connector conversion cable.The FDX-32UHD combines the simplicity and reliability of a fixed I/O matrix switcher with the convenience and flexibility of a modular matrix switcher. The FDX-32UHD accepts any combination of available HDMI/DVI, or HDBaseT input/output boards. Input and output boards are available in 4-input, 4-output, providing various I/O size combinations with sizes from 4x4 to 32x32.
The FDX series also have RS-232 and LAN ports for external device control.
Technical documents Version Size Format
Spec sheet FDX-32UHD Ver.1.2.0 PDF
User guide FDX-32UHD Ver.1.2.0 PDF
Command guide FDX-32UHD Ver.1.0.0 PDF
Dimensional outline drawing FDX-32UHD PDF
Dimensional outline drawing FDX-32UHD DXF
Frame diagram FDX-32UHD DXF/DWG
PDN FDX-32UHD 0.3 MB PDF
Software Terms and Conditions of Use

In terms of software downloaded from this website and the contents such as documents and images embedded in or generated by the software (“Software”), IDK grants you a non-transferable, non-exclusive license to use the Software free of charge. IDK does not transfer any right and benefit, including but not limited to any intellectual property to you. Copyrights to the Software shall remain the property of IDK and/or the respective rights holders that have given usage permission to IDK. You are not permitted to retransmit, sell, modify, decompile, disassemble, reverse-engineer or in any way obtain the source code of the Software.
IDK does not make any warranty regarding the Software. In no event shall IDK be liable to you or any third party for any damages (general, direct, indirect, special, incidental or consequential) arising out of the use of or inability to use the Software.
IDK will not answer any inquiries regarding the Software and may suspend or stop providing the Software without notice.

Application software Version Size Format
Matrix Switcher Configurator Windows 11/10 (64bit)
Microsoft .NET Framework 4.8 or later 		Ver.1.4.0 2.3 MB ZIP
Related products
Replacement Products
Description
The IDK FDX-32UHD is a new level of Digital Matrix Switcher for AV systems which supports resolution up to 4K @60 and HDCP2.2.
The FDX-32UHD can input/output HDCP protected contents such as Blu-ray, and it can support DVI signal by using HDMI to DVI connector conversion cable.The FDX-32UHD combines the simplicity and reliability of a fixed I/O matrix switcher with the convenience and flexibility of a modular matrix switcher. The FDX-32UHD accepts any combination of available HDMI/DVI, or HDBaseT input/output boards. Input and output boards are available in 4-input, 4-output, providing various I/O size combinations with sizes from 4x4 to 32x32.
The FDX series also have RS-232 and LAN ports for external device control.
