Programmable Button Controller SWC-2000

  • Generic controller for any external devices
  • Control external device
  • Registering up to 10 commands for each button
  • Button security lockout
Status Model number
Available SWC-2000

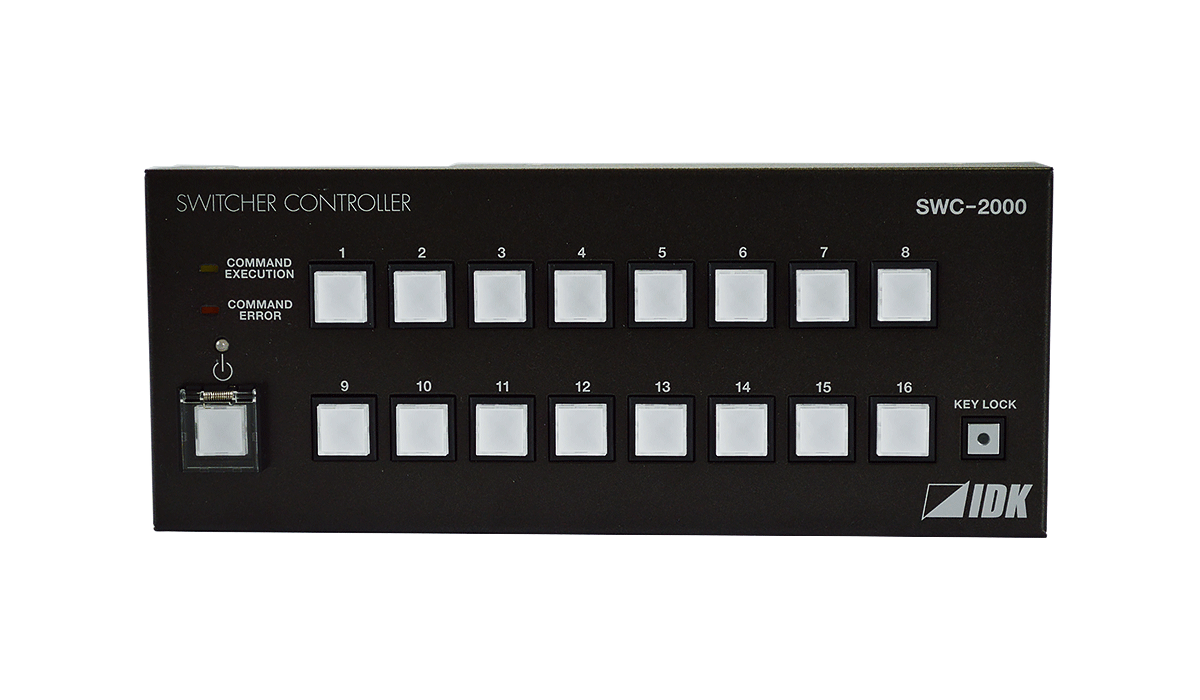

The SWC-2000 is a remote programmable button controller.

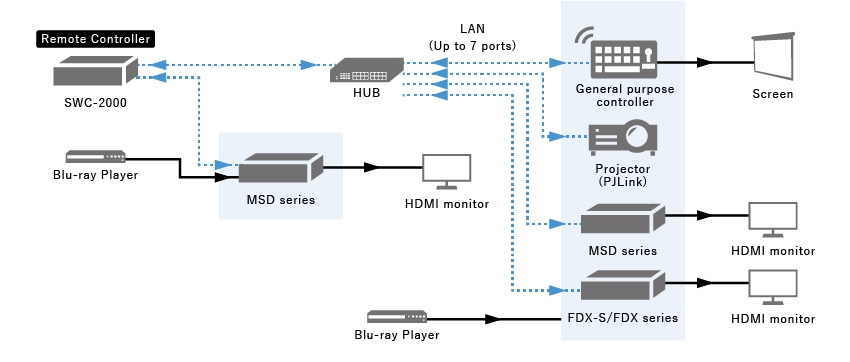

Control command can be registered and linked to the buttons by using web browser. The SWC-2000 can control connected units which are connected via LAN or RS-232C. The SWC-2000 can be used on a desk or mounted to a rack.
ItemDescription
Number of control command buttons16 buttons
Number of control commands that can be linkedUp to 10 commands per button
Number of control commands that can be registeredUp to 32 commands

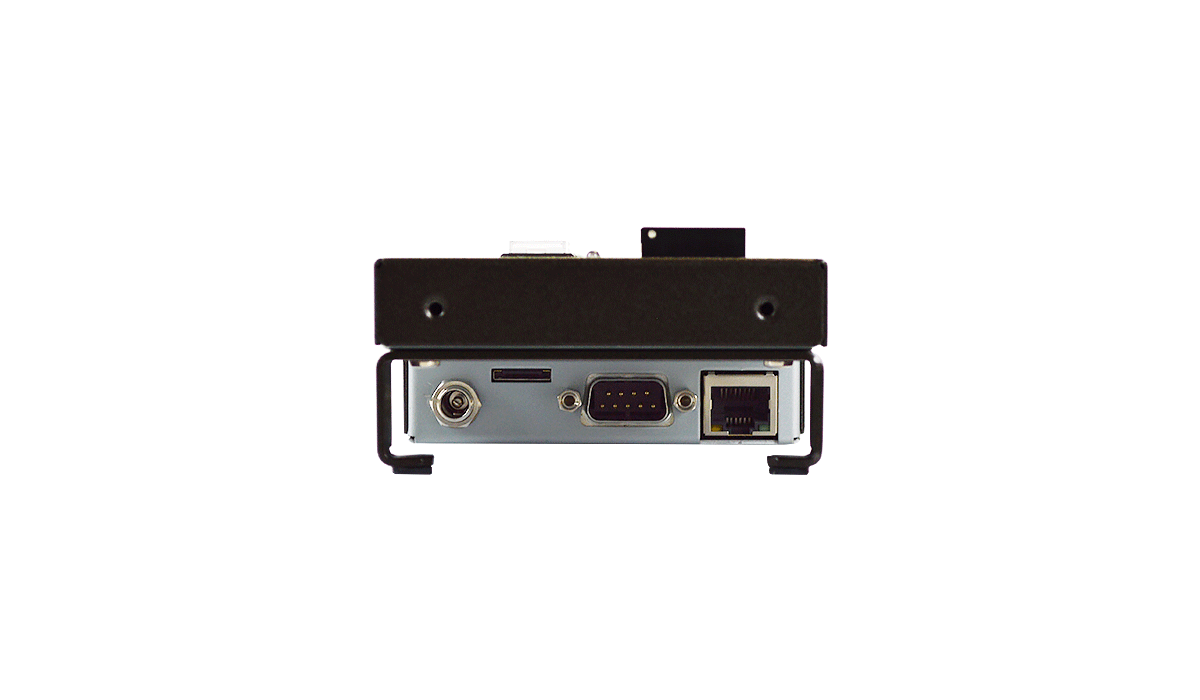

ControlRS-232C1 port/male D-sub (9-pin)
LAN1 port/RJ-45 10Base-T/100Base-TX (Auto Negotiation), Auto MDI/MDI-X
Recommended productsIDK’s MSD/FDX series
PJLink supported products, and others (General purpose products)
GeneralPowerDC 5 V 0.6 A
Power consumptionAbout 3 W
Dimensions8.5 (W) × 3.5 (H) × 1.6 (D)” (215 (W) × 88 (H) × 40.6 (D) mm)
(Excluding connectors and the like)
Weight1.8 lbs. (0.8 kg)
TemperatureOperating : 32°F to 104°F (0°C to +40°C)
Storage : -4°F to +176°F (-20°C to +80°C)
HumidityOperating/Storage: 20% to 90% (Non Condensing)
ItemsParts number
IDK’s productsMSD seriesMSD-701AMP, MSD-6203, MSD-6204, MSD-6206, MSD-6208,
MSD-701UHD, MSD-702UHD, MSD-801UHD, MSD-802UHD,
MSD-7201UHD, MSD-7202UHD, MSD-7203UHD, MSD-7204UHD,
MSD-7201UHDTB, MSD-7202UHDTB, MSD-7203UHDTB, MSD-7204UHDTB,
MSD-402, MSD-501, MSD-502, MSD-701, MSD-702, MSD-EX32
FDX-S seriesFDX-S16U, FDX-S32U, FDX-S16, FDX-S32
FDX seriesFDX-12UHD, FDX-32UHD, FDX-08, FDX-16, FDX-32, FDX-64
Other productsPJLink supported products, and others (General purpose products)
* Specifications are subject to change without notice.
  For the latest specification, please see product specification in PDF format.
Technical documents Version Size Format
Spec sheet SWC-2000 Ver.1.5.0 0.4 MB PDF
User guide SWC-2000 Ver.1.7.0 1.5 MB PDF
Command guide SWC-2000 Ver.1.3.0 0.7 MB PDF
Dimensional outline drawing SWC-2000 0.8 MB PDF
Dimensional outline drawing SWC-2000 0.7 MB DXF
Frame diagram SWC-2000 0.4 MB DXF/DWG
