FDX-S Audio Board FDX-SA
- Embedding/de-embedding audio
- Embedding/De-embedding Dante audio
| Status | Model number | Description |
|---|---|---|
| Available | FDX-SAB4A | Analog Audio Board with 4 Inputs and 4 Outputs |
| Available | FDX-SOA12A | Analog Audio Board with 12 Outputs |
| Available | FDX-SAB64D | Dante Audio Board with 64 Inputs and 64 Outputs |
The FDX-SAB4A is an analog audio board with four unbalanced inputs and four balanced/unbalanced outputs.
The FDX-SOA12A is an 12-output unbalanced audio board designed for FDX-S series Modular Matrix Switchers.

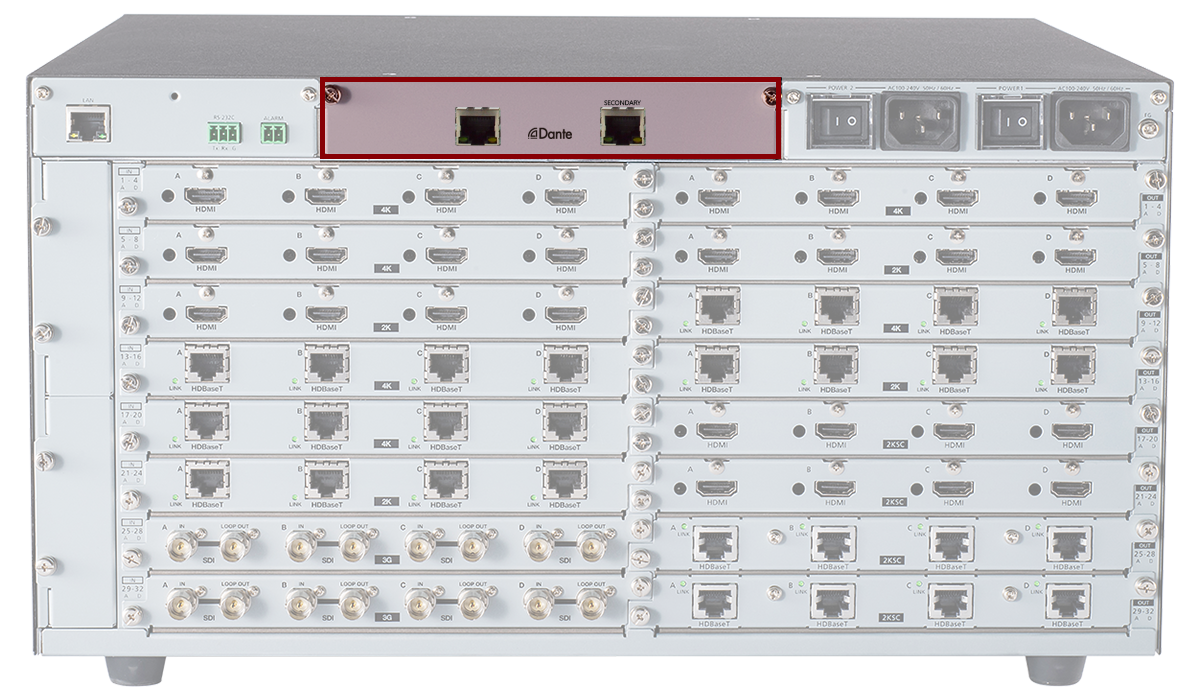

The FDX-SAB64D is a Dante network audio board designed for FDX-S series Modular Matrix Switchers.
The FDX-SOA12A is an 12-output unbalanced audio board designed for FDX-S series Modular Matrix Switchers.
The FDX-SAB64D is a Dante network audio board designed for FDX-S series Modular Matrix Switchers.
FDX-SAB4A
| Item | Description | |
|---|---|---|
| Input | Analog audio | 4 inputs Unbalanced Stereo LR Input impedance: 24 kΩ Reference level: -10dBu, Max. input level: +10dBu |
| Output | Analog audio | 4 outputs Balanced/Unbalanced Stereo LR Output impedance: 100 Ω balanced/50 Ω unbalanced Reference level: -10dBu, Max. output level: +10dBu |
| Connector | Input : 4 captive screw (3-pin) Output : 4 captive screw (5-pin) |
|
| Function | Lip Sync (Max. 256 ms.) | |
| General | Power consumption | About 9 Watts |
| Weight | 1.3 lbs. (0.6 kg) | |
| Temperature | Operating : 32°F to 104°F (0°C to +40°C) Storage : -4°F to +176°F (-20°C to +80°C) |
|
| Humidity | Operating/Storage: 20% to 90% (Non Condensing) | |
FDX-SOA12A
| Item | Description | |
|---|---|---|
| Output | Analog audio | 12 outputs Unbalanced Stereo LR Output impedance: 50 Ω Reference level: -10dBu, Max. output level: +10dBu |
| Connector | Captive screw (3-pin) | |
| Function | Lip Sync (Max. 256 ms.) | |
| General | Power consumption | About 18 Watts |
| Weight | 1.3 lbs. (0.6 kg) | |
| Temperature | Operating: 32°F to 104°F (0°C to +40°C) Storage : -4°F to +176°F (-20°C to +80°C) |
|
| Humidity | Operating/Storage: 20% to 90% (Non Condensing) | |
FDX-SAB64D
| Item | Description | |
|---|---|---|
| Input | Dante network audio | 1 input Format: Dante protocol Sampling frequency: 48 kHz, Sample size: 24 bit Maximum audio input channel: 64 channels (32 stereo audio channels) |
| Output | Dante network audio | 1 output Format: Dante protocol Sampling frequency: 48 kHz, Sample size: 24 bit Maximum audio output channel: 64 channels (32 stereo audio channels) |
| Connector | 2 RJ-45 (Primary/Secondary) | |
| General | Power consumption | About 11 Watts |
| Weight | 1.3 lbs. (0.6 kg) | |
| Temperature | Operating: 32°F to 104°F (0°C to +40°C) Storage : -4°F to +176°F (-20°C to +80°C) |
|
| Humidity | Operating/Storage: 20% to 90% (Non Condensing) | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
