FDX-S Redundant Power Supply Unit FDX-SRP
- System reliability using redundant power supply
- Power module is replaceable from front
- Power I/F board is replaceable from rear
| Status | Model number | Description | |
|---|---|---|---|
| Available | FDX-SRP08 | for FDX-S08U | |
| Available | FDX-SRP16 | for FDX-S16U | |
| Available | FDX-SRP32 | for FDX-S32U | |
| Available | FDX-SRP64 | for FDX-S64U | |
| Show all products X | |||

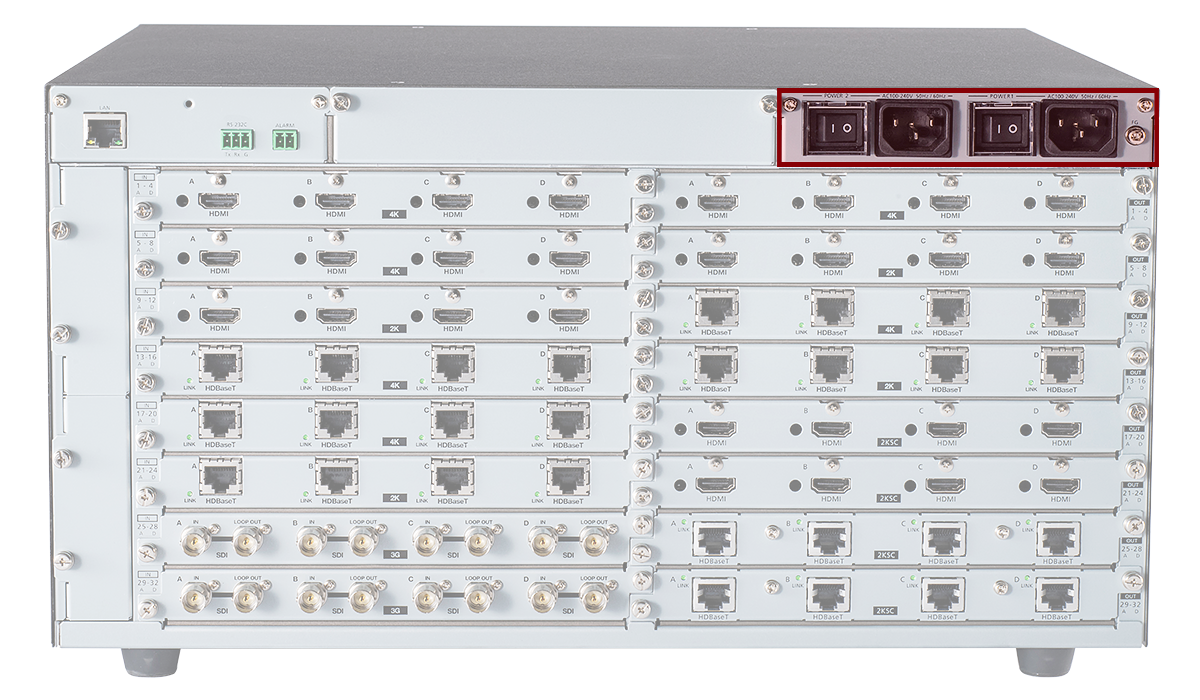

The FDX-SRP08 is a redundant power supply unit that includes two independent power connectors for FDX-S08/S08U.
The FDX-SRP16 is a redundant power supply unit that includes two independent power connectors for FDX-S16/S16U.

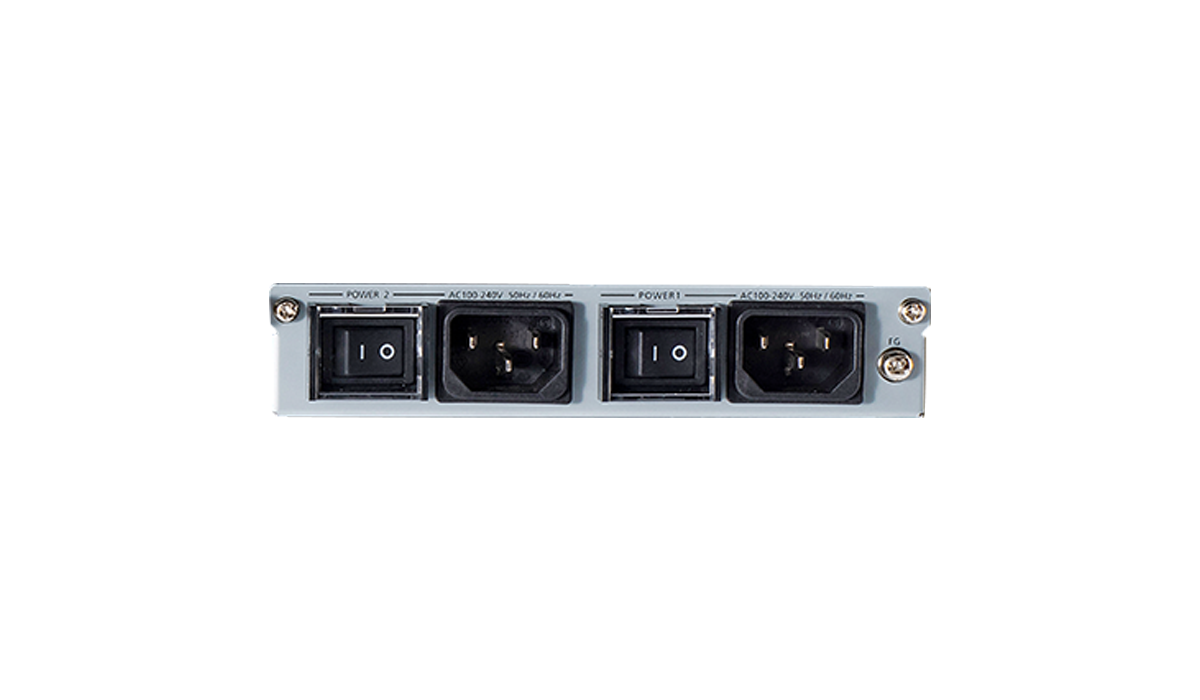

The FDX-SRP32 is a redundant power supply unit that includes two independent power connectors for FDX-S32/S32U.

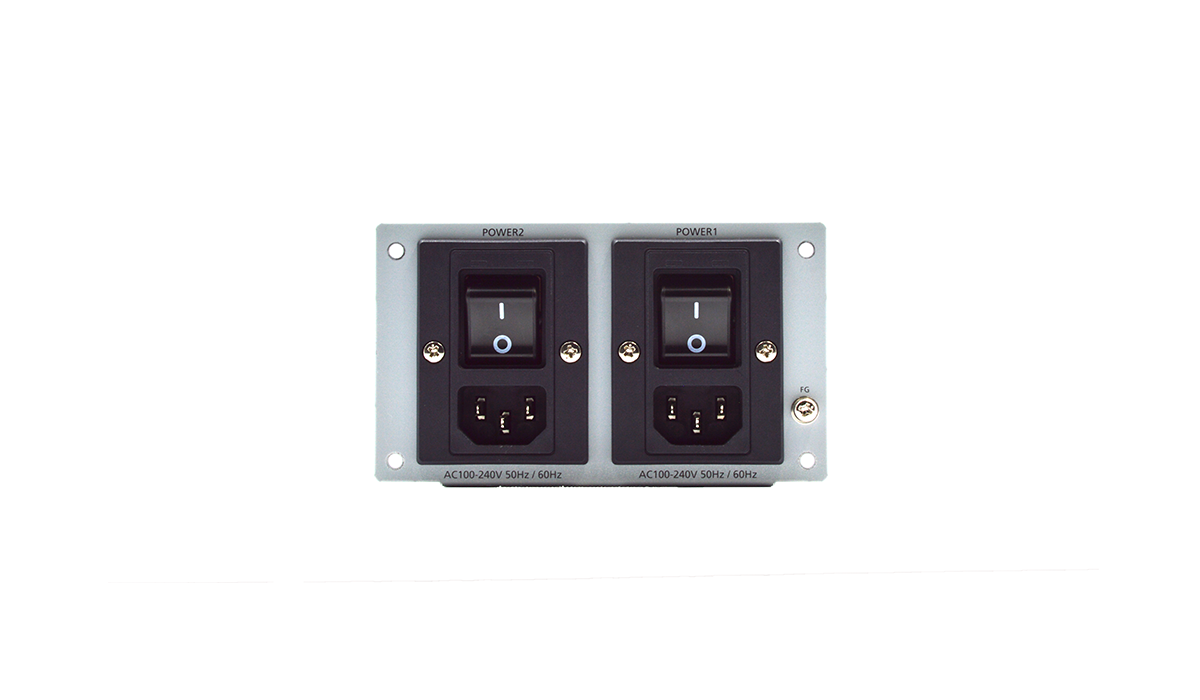

The FDX-SRP64 is a redundant power supply unit that includes two independent power connectors for FDX-S64/S64U.
The FDX-SRP16 is a redundant power supply unit that includes two independent power connectors for FDX-S16/S16U.
The FDX-SRP32 is a redundant power supply unit that includes two independent power connectors for FDX-S32/S32U.
The FDX-SRP64 is a redundant power supply unit that includes two independent power connectors for FDX-S64/S64U.
FDX-SRP08
| Item | Description | |
|---|---|---|
| Power | 100 - 240 VAC ±10%, 50 Hz/60 Hz ±3 Hz, 2 power connectors | |
| Weight | 4 lbs. (1.8 kg) | |
| Temperature | Operating: 32°F to 104°F (0°C to +40°C) Storage: -4°F to +176°F (-20°C to +80°C) |
|
| Humidity | Operating/Storage: 20% to 90% (Non Condensing) | |
FDX-SRP16
| Item | Description | |
|---|---|---|
| Power | 100 - 240 VAC ±10%, 50 Hz/60 Hz ±3 Hz, 2 power connectors | |
| Weight | 6 lbs. (2.7 kg) | |
| Temperature | Operating: 32°F to 104°F (0°C to +40°C) Storage: -4°F to +176°F (-20°C to +80°C) |
|
| Humidity | Operating/Storage: 20% to 90% (Non Condensing) | |
FDX-SRP64
| Item | Description | |
|---|---|---|
| Power | 100 - 240 VAC ±10%, 50 Hz/60 Hz ±3 Hz, 2 power connectors | |
| Weight | 23.4 lbs. (10.6 kg) | |
| Temperature | Operating : 32°F to 104°F (0°C to +40°C) Storage : -4°F to +176°F (-20°C to +80°C) |
|
| Humidity | Operating/Storage: 20% to 90% (Non Condensing) | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
FDX-S Series
1:09ISE 2020: FDX-S Series
1:05| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet FDX-SRP08 | Ver.1.1.0 | 0.2 MB | |
| Spec sheet FDX-SRP16 | Ver.1.1.0 | 0.2 MB | |
| Spec sheet FDX-SRP32 | Ver.1.1.0 | 0.2 MB | |
| Spec sheet FDX-SRP64 | Ver.1.1.0 | 0.1 MB | |
| Dimensional outline drawing FDX-SRP08 | 0.6 MB | ||
| Dimensional outline drawing FDX-SRP08 | 0.4 MB | DXF | |
| Dimensional outline drawing FDX-SRP16 | 1.1 MB | ||
| Dimensional outline drawing FDX-SRP16 | 0.5 MB | DXF | |
| Dimensional outline drawing FDX-SRP32 | 1.6 MB | ||
| Dimensional outline drawing FDX-SRP32 | 0.9 MB | DXF | |
| Dimensional outline drawing FDX-SRP64 | 3.3 MB | ||
| Dimensional outline drawing FDX-SRP64 | 1.6 MB | DXF |
