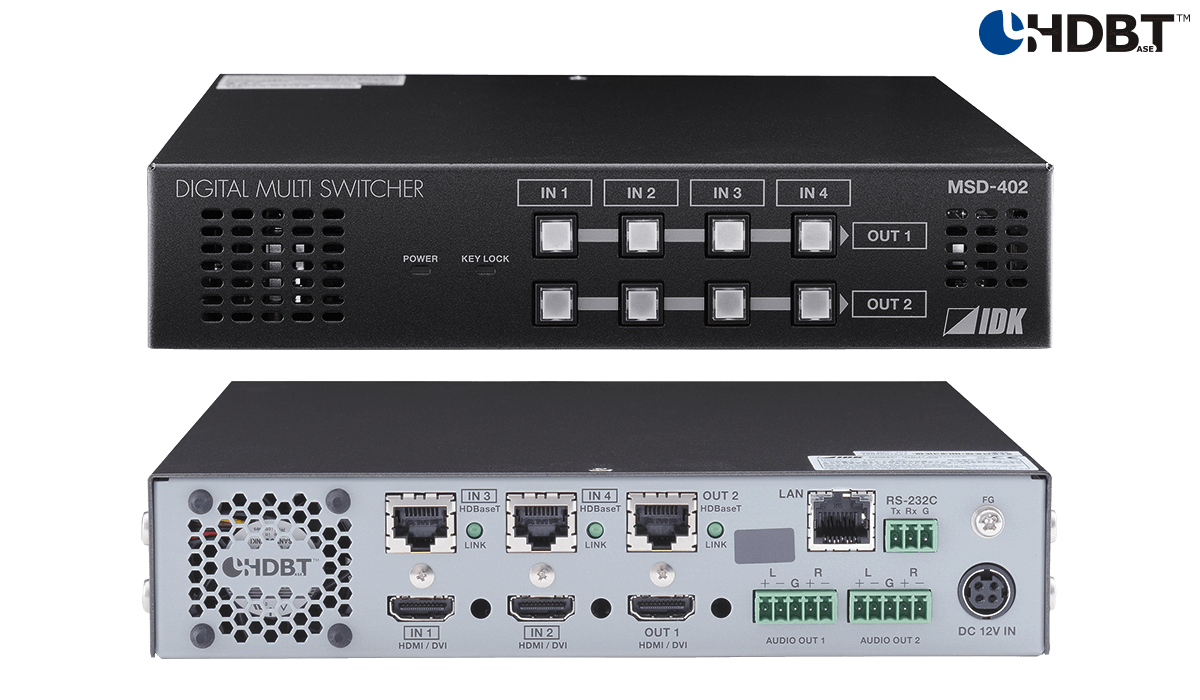

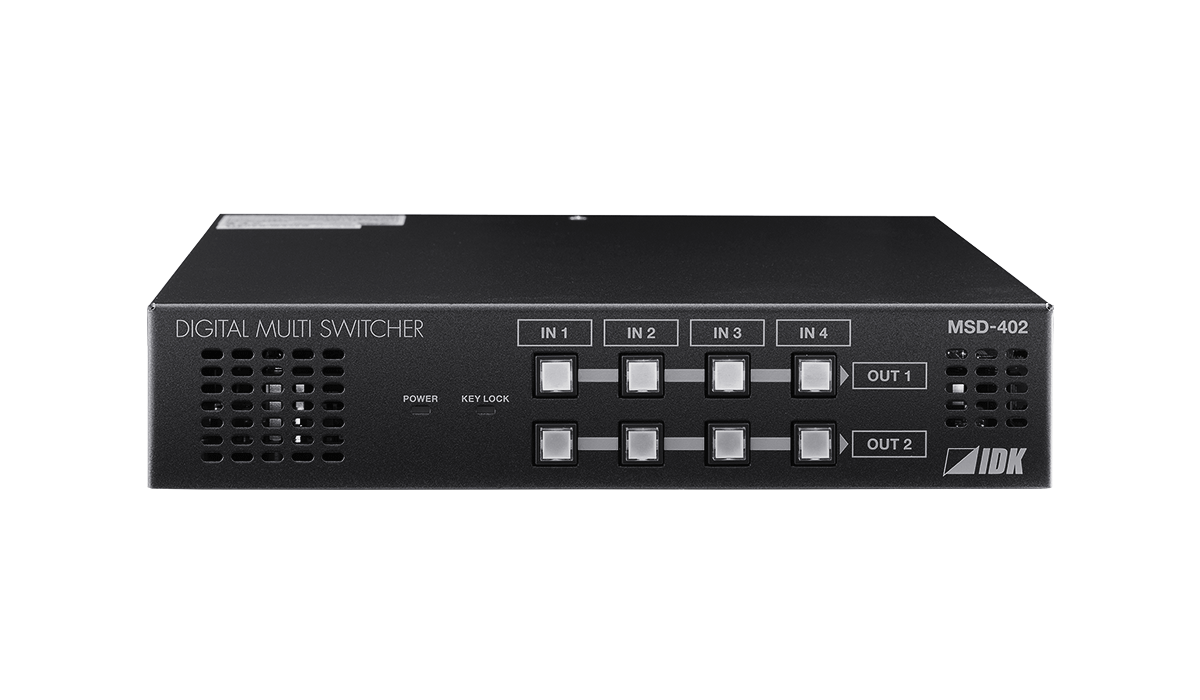

Digital Multi Switcher MSD-402

4 inputs and 2 outputs
Up to 1080p/QWXGA(RB)
HDCP 1.4
Built-in Scan Converter/Scaler
Seamless switching (black frame)
Picture-in-Picture (2-window)
Automatic input detection and switching

Status	Model number
EOL	MSD-402

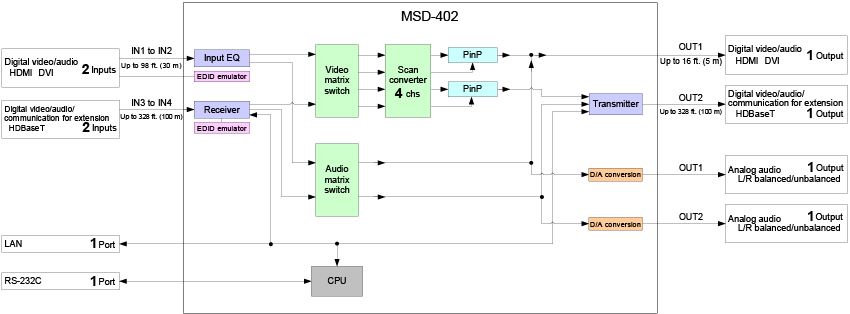

The IDK MSD-402 is a high-performance digital multi switcher with a scan converter and 4 inputs and 2 outputs.
For video input, 2 HDMI /DVI inputs and 2 HDBaseT inputs are included. Input video signals are converted to HDMI/DVI or HDBaseT signal and output at a resolution up to QWXGA or 1080p.
For audio input, 4 digital inputs are included. Selected audio signals are output as digital and analog audio. Audio levels of each input and output can be set individually.

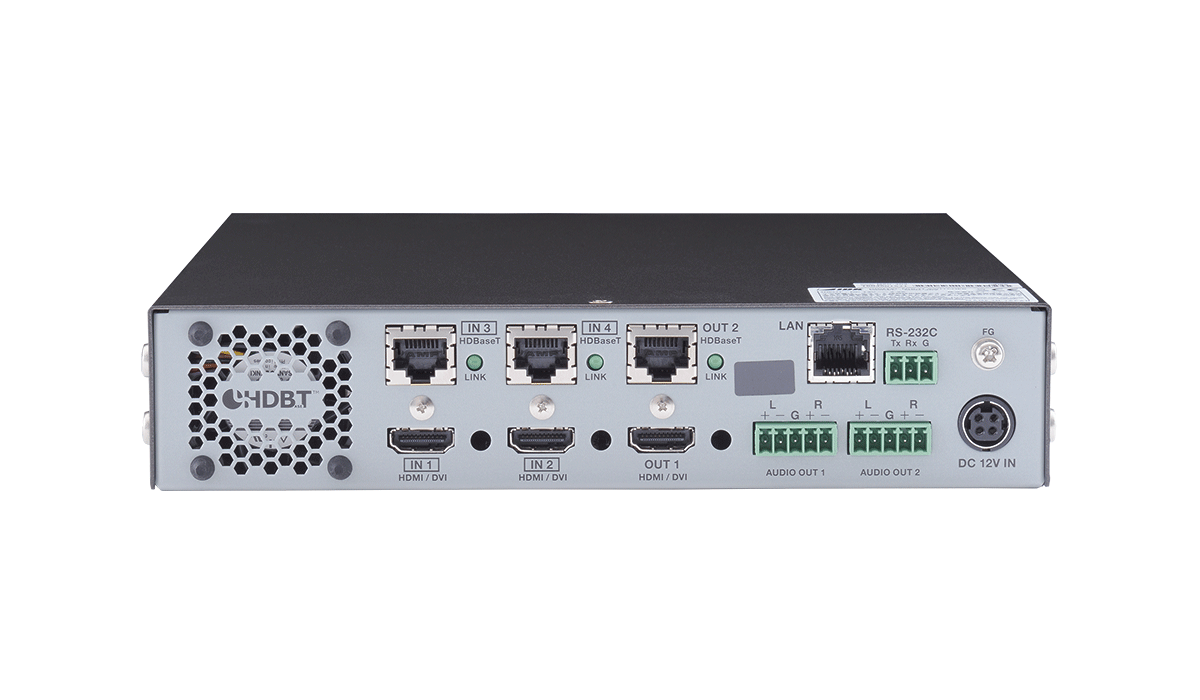

The IDK MSD-402 also has RS-232C and LAN ports as communication ports for controlling remotely. Bidirectional LAN communication is supported for HDBaseT input/output.
If IDK’s HDC-TH200 is connected to an HDBaseT input of the MSD-402, analog video signals can be input, and input channel can be switched remotely.

Item		Description
Video input	HDMI / DVI	2 inputs HDMI Deep Color / DVI 1.0 TMDS single link, HDCP 1.4, TMDS clock: 25 MHz to 225 MHz Built-in cable EQ, EDID emulation Connector: Female HDMI Type A (19-pin)
	HDBaseT	2 inputs HDBaseT HDCP 1.4 EDID emulation Connector: RJ-45 Cable: CAT.5E HDC, Cat5e UTP / STP, Cat6 UTP / STP
	Format	VGA to QWXGA (Dot clock: 25 MHz to 165 MHz) 　* For WUXGA / QWXGA, only Reduced Blanking is supported. 　480i / 480p / 576i / 576p / 720p / 1080i / 1080p
Audio input	Digital	4 inputs Multi-channel LPCM up to 8 channels Sampling frequency: 32 kHz to 192 kHz, Sample size: 16 bit to 24 bit Reference level: -20 dBFS, Max. input level: 0 dBFS Connector: 2 female HDMI TypeA (19-pin), 2 RJ-45
Video output	HDMI / DVI	1 output HDMI Deep Color / DVI 1.0 TMDS single link, HDCP 1.4 Connector: Female HDMI Type A (19-pin)
	HDBaseT	1 output HDBaseT HDCP 1.4 Connector: RJ-45 Cable: CAT.5E HDC, Cat5e UTP / STP, Cat6 UTP / STP
	Format	VGA / SVGA / XGA / WXGA (1280x768) / WXGA (1280x800) / Quad-VGA / SXGA / WXGA (1360x768) / WXGA (1366x768) / SXGA+ / WXGA+ / WXGA++ / UXGA / WSXGA+ / VESAHD / WUXGA / QWXGA 　* For VESAHD / WUXGA / QWXGA, only Reduced Blanking is supported. 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
Audio output	Digital	2 outputs Multi-channel LPCM up to 8 channels Sampling frequency: 32 kHz to 192 kHz, Sample size: 16 bit to 24 bit Reference level: -20 dBFS, Max. output level: 0 dBFS Connector: Female HDMI Type A (19-pin), RJ-45
Audio output	Analog	2 outputs Stereo LR balanced / unbalanced 　･Balanced signal 　　- Output impedance: 100 Ω 　　- Reference level: -4 dBu 　　- Max. output level: +16 dBu 　･Unbalanced signal 　　- Output impedance: 50 Ω 　　- Reference level: -10 dBu 　　- Max. output level: +10 dBu Connector: 5-pin terminal block
Maximum	Digital Input	HDMI / DVI: up to 98 ft. (30 m) , HDBaseT: up to 328 ft. (100 m)
extension distance	Digital output	HDMI / DVI: up to 16 ft. (5 m), HDBaseT: up to 328 ft. (100 m)
Functions	Scan Converter	Aspect Ratio Control, Picture adjustment (brightness, contrast, display position, display size, etc.), Seamless Switching , PinP
Functions	Others	All function setting through browser, Automatic input detection and switching, Volume adjustment (volumes of input and output ports can be set separately), Cross-point memory (9 settings), Preset memory (16 settings), Last memory, Anti-Snow , Connection Reset , Security lock
External control	RS-232C	1 port / 3-pin terminal block
	LAN	1 port / RJ-45 10Base-T / 100Base-TX (Auto Negotiation), Auto MDI / MDI-X
	External control	Remote input channel switching for HDC-TH200 inputs through HDBaseT.
General	AC Adapter	Input: 100 - 240 VAC ±10%, 50 Hz / 60 Hz ±3 Hz Output: DC 12 V 3 A 36.0 W (A dedicated AC adapter is provided.)
	Power consumption	About 29 W
	Dimensions	8.3 × 1.7 × 9.8” (210 (W) × 44 (H) × 250 (D) mm) (EIA 1U high, half rack wide) (Excluding connectors and the like)
	Weight	4.2 lbs. (1.9 kg)
	Temperature	Operating: 32 °F to 104 °F / 0 °C to +40 °C Storage: -4 °F to +176 °F / -20 °C to +80 °C
	Humidity	Operating / Storage humidity: 20% to 90% (Non Condensing)

* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
