IP-NINJAR Management Platform NJR-CTB

  • Managing up to 512 ch.
  • Control from external controller
  • Control external device
  • Failover and redundancy
  • SSL encrypted connection
Status Model number
Available NJR-CTB

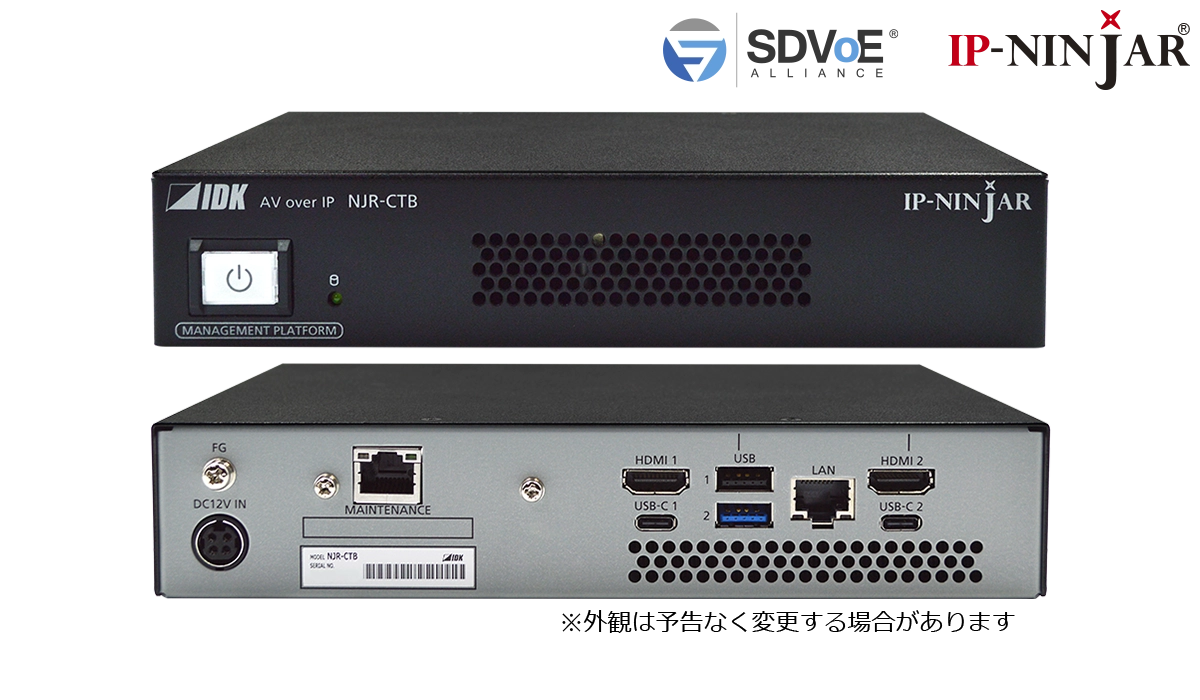

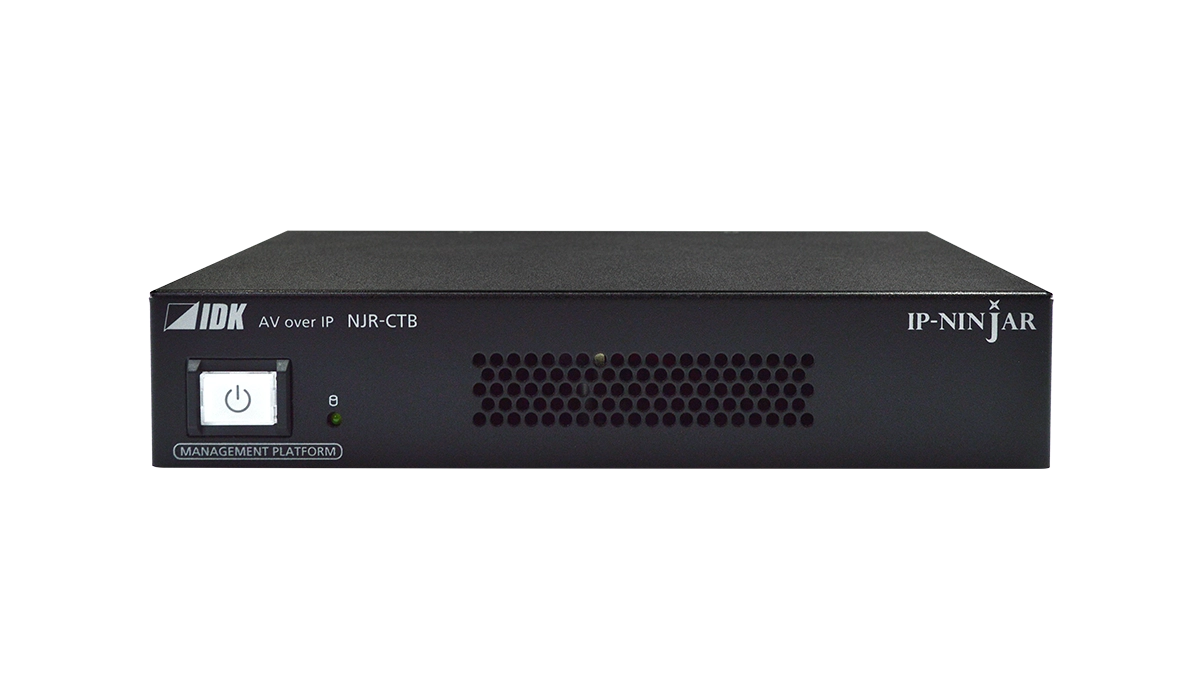

The NJR-CTB is an advanced control box that expands the possibility for IP-NINJAR products.

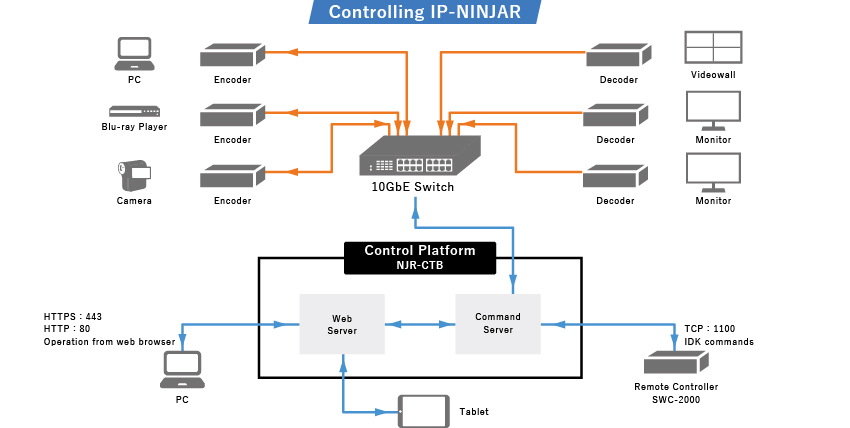

The NJR-CTB automatically recognizes IP-NINJAR units which are connected in a network, monitors status, configures videowall, multiview, and other settings.
ItemDescription
IP-NINJAR managementNumber of unitsUp to 512 units
Number of channelsInput: 4096 (including multiview), Output: 4096 (including videowall)
Display management capabilityVideowall10 pre-configured layout patterns
Multiview11 pre-configured layout patterns
NetworkProtocolTCP/IP, UDP/IP, HTTP, HTTPS, ICMP, DHCP, IGMP
ConnectionUp to 8 connections

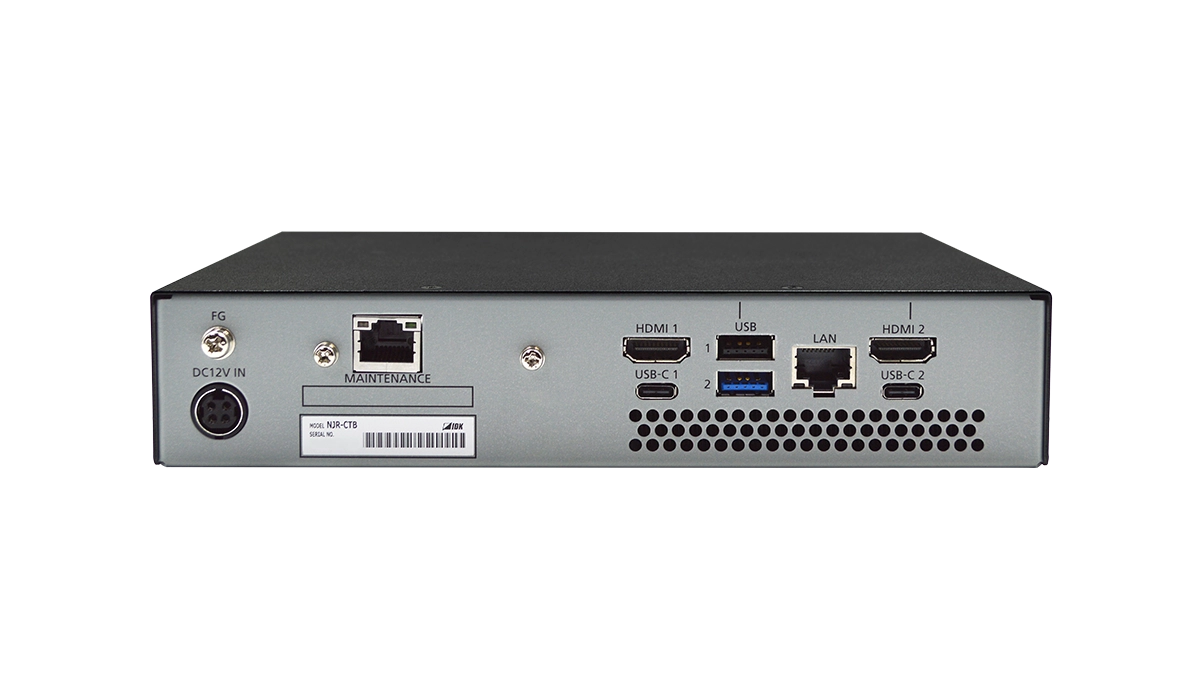

ControlLAN2 ports/RJ-45 10Base-T/100Base-TX/1000Base-T (Auto Negotiation), Auto MDI/MDI-X
RS-232C1 port/captive screw (3-pin), full duplex, up to 115.2 kbps
MaintenanceHDMI2 outputs/female HDMI Type A (19-pin)
USB4 ports/2 female USB 3.0 Type-A, 2 female USB 3.0 Type-C
GeneralAC adapterInput : 100 - 240 VAC±10%, 50 Hz/60 Hz±3 Hz
Output : DC 12 V 3 A 36.0 W (A dedicated AC adapter is provided)
Power consumptionAbout 18 W
Dimensions8.3 (W) × 1.7 (H) × 5.9 (D)” (210 (W) × 42 (H) × 150 (D) mm) (Excluding connectors and the like)
Weight2.4 lbs. (1.1 kg)
TemperatureOperating : 32°F to 104°F (0°C to +40°C)
Storage : -4°F to +140°F (-20°C to +60°C)
HumidityOperating/Storage: 20% to 90% (Non Condensing)
* Specifications are subject to change without notice.
  For the latest specification, please see product specification in PDF format.
IP-NINJAR: 160x160 AV over IP Connection Test
1:40
IP-NINJAR: GUI Status
2:56
IP-NINJAR: GUI Control
3:11
IP-NINJAR: GUI Setup
5:31
IP-NINJAR: Overview
1:48
ISE 2020: IP-NINJAR
1:10
Technical documents Version Size Format
Spec sheet NJR-CTB Ver.3.2.0 0.2 MB PDF
User guide NJR-CTB Ver.1.3.0 2.9 MB PDF
Command guide NJR-CTB Ver.1.1.1 0.8 MB PDF
Dimensional outline drawing NJR-CTB 0.9 MB PDF
Dimensional outline drawing NJR-CTB 0.4 MB DXF
Frame diagram NJR-CTB 0.2 MB DXF/DWG
