USB 3.2 / 2.0 / 1.1 USB CAT Extender NP-UCE-14LR
- USB 3.2/2.0/1.1
- Up to 70 m (CAT6A)
- Power supplied from each USB port
- Operate only using power supply from PC
| Status | Model number |
|---|---|
| Available | NP-UCE-14LR |

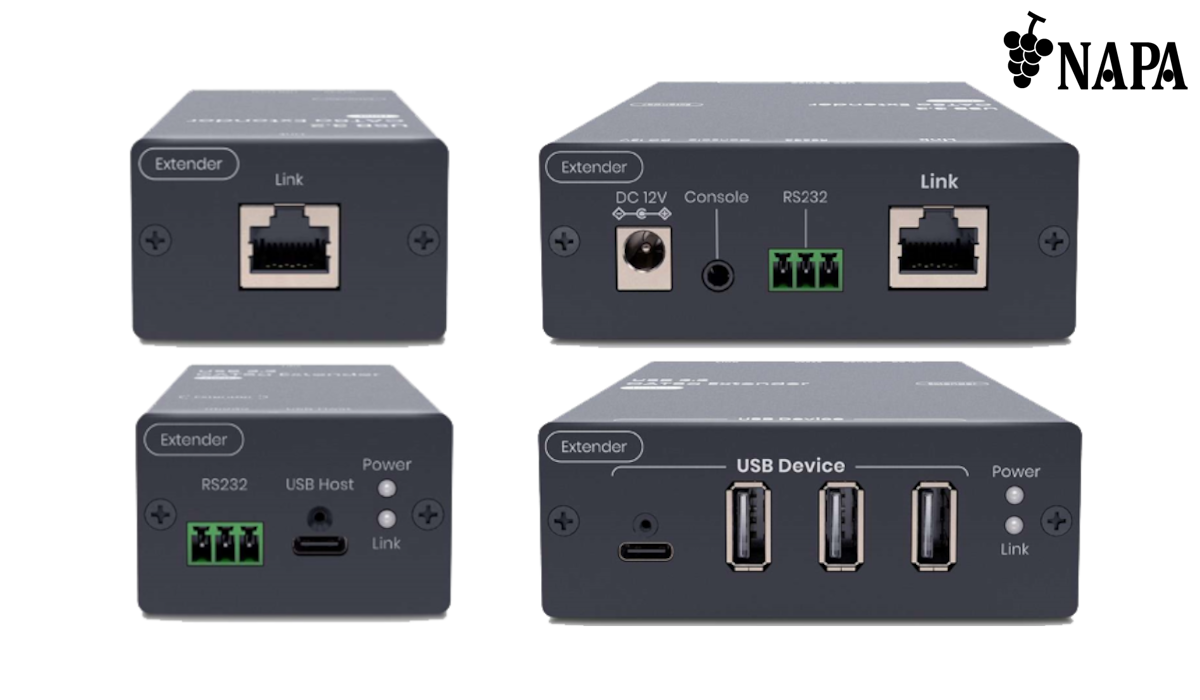

NP-UCE-14LR is a transceiver that transmits USB 3.2 Gen1 / USB 2.0/1.1 signals over long distance via CAT cable. The transmission distance is 70 m from each transceiver. There is no need to install additional software for use. Local Unit (Host side) is Bus-powered by host PC, and Remote Unit (Device side) needs external power supply unit.

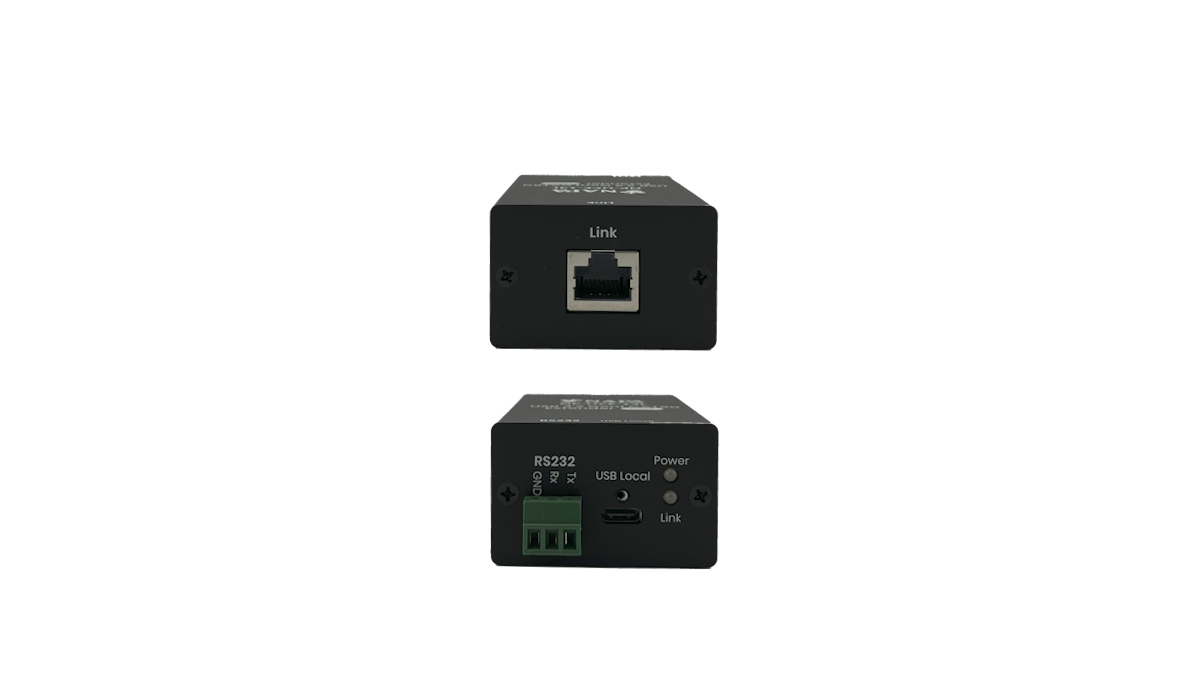

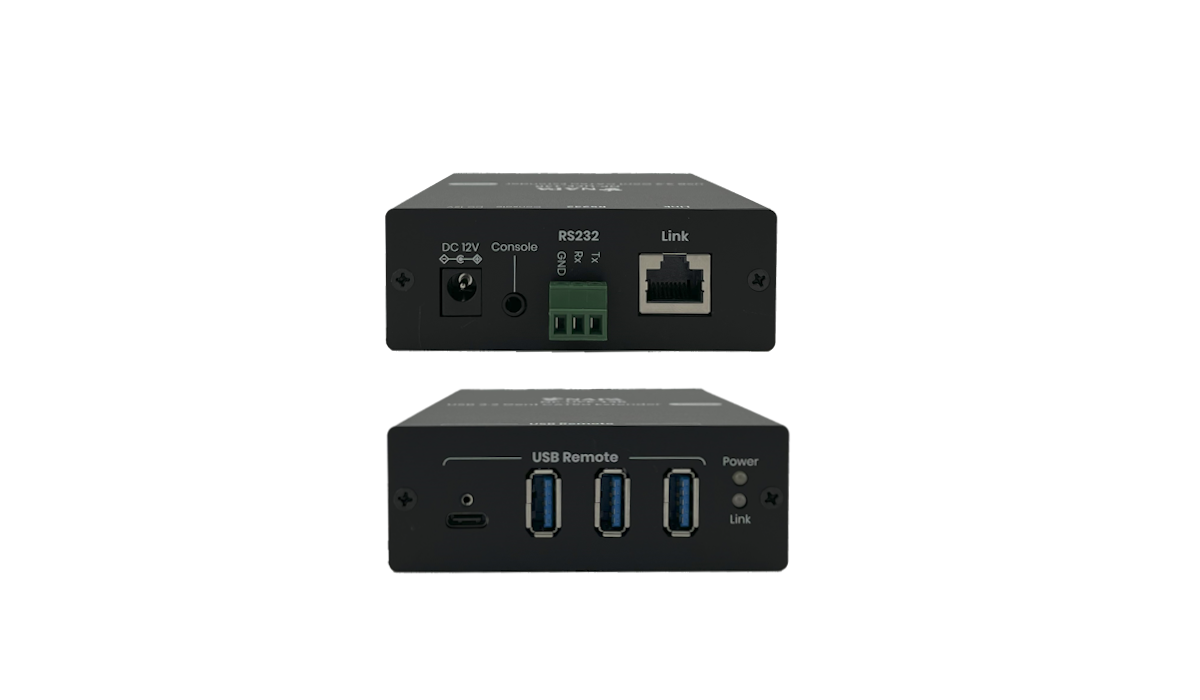

| Item | NP-UCE-14L (Local Unit) | NP-UCE-14R (Remote Unit) | |
|---|---|---|---|
| USB | 1 Host Port | 4 Device Ports | |
| USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 (*1) Maximum data rate: 5 Gbps Capable transfer mode: Control, Bulk, Interrupt, Isochronous |
|||
| Connector: USB Type-C Receptacle (*2) Maximum distances: 6.6 ft (2 m) | Connector: USB Type-C Receptacle(x1), USB Type-A Receptacle(x3) Maximum distances: 6.6 ft (2 m) |
||
| CAT | 1 Port | 1 Port | |
| Connector: RJ-45 Maximum distances: 229.6 ft (70 m) Cable: CAT6A / CAT7 Data transfer bandwidth: 6Gbps / 6Gbps (bidirectional transmission) |
|||
| Control I/F | RS-232C | 1 Port/Connector: Captive screw (3-pin) | |
| General | Power | Power supplied 5 V from Host devices | 12 V / 1.5 A (AC adapter) |
| Power consumption | 2 W | 2.76 W (no USB devices connected) Current from each USB Connector: 1.5 A |
|
| Dimensions | 50.0 (W) x 32.0 (H) x 93.0 (D) mm | 87.3 (W) x 32.0 (H) x 123.0 (D) mm | |
| Weight | 128 g | 259 g | |
| Temperature | Operating: 32°F to 104°F (0°C to +40°C), Storage: -4°F to +176°F (-20°C to +80°C) | ||
| Humidity | 20 % to 90 % (non-condensing) | ||
| Accessories | AC adapter x1, angle brackets for mounting x2 | ||
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet NP-UCE-14LR | Ver.1.0.0 | 0.2 MB | |
| User guide NP-UCE-14LR | Ver.1.0.0 | 0.6 MB |
