TOP > Products > IP-NINJAR > NJR-L15UC-T

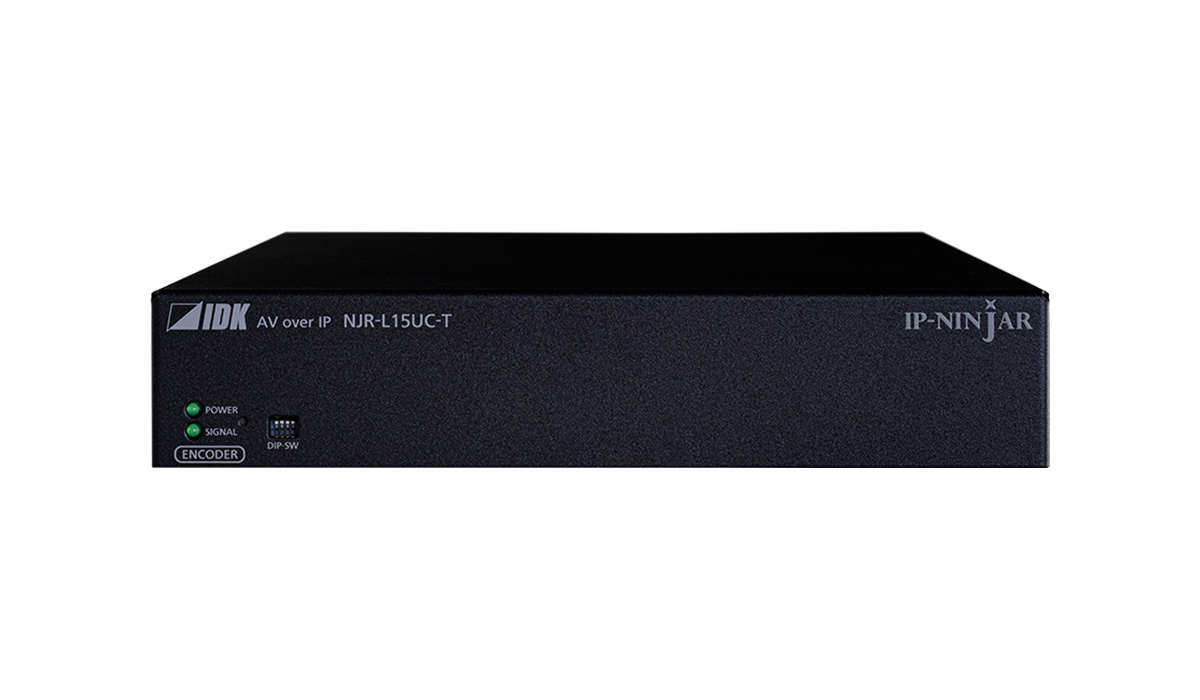

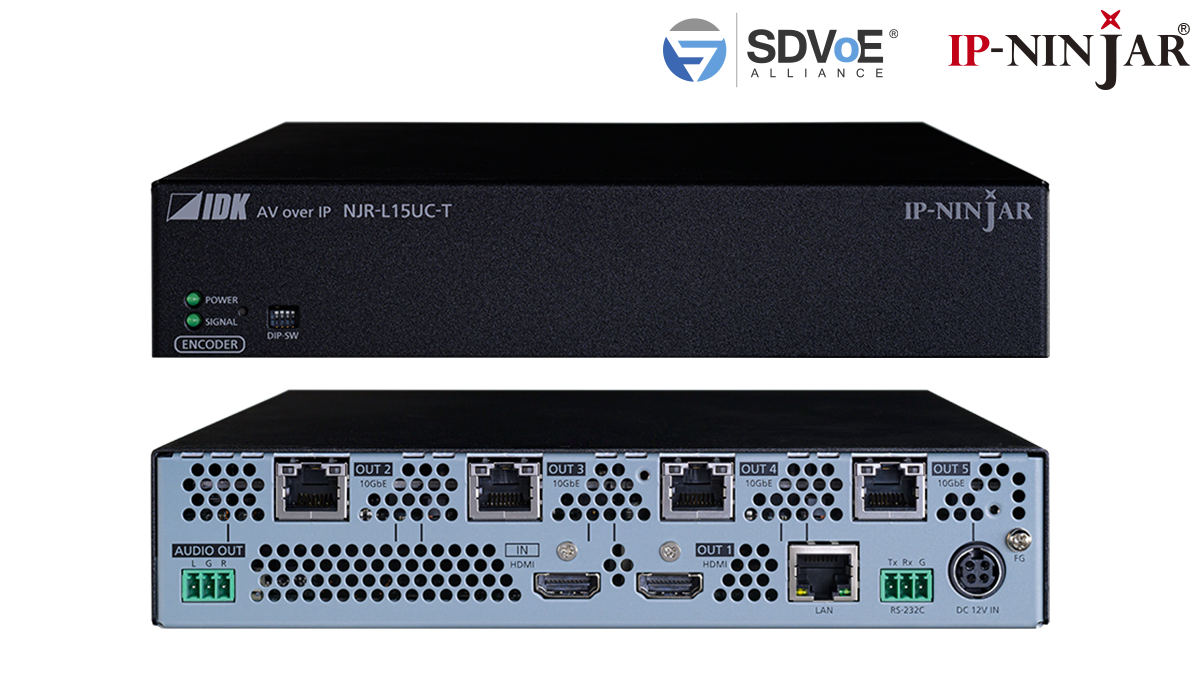

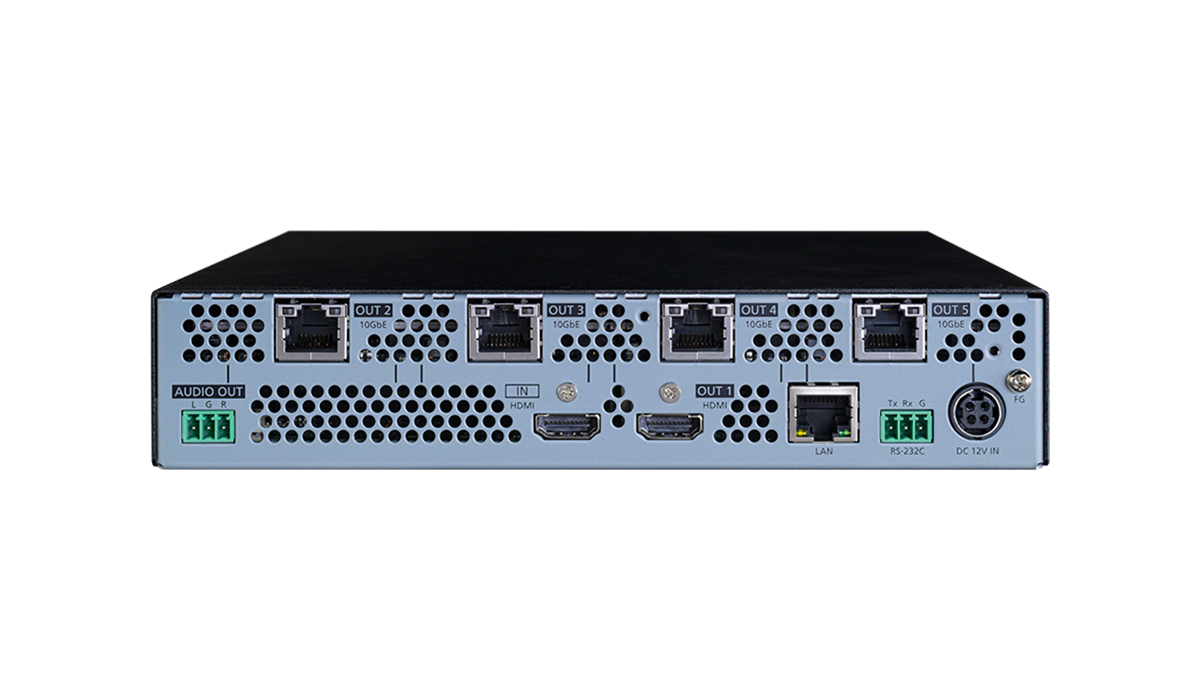

4K@60 HDMI Encoder NJR-L15UC-T

  • 1×5 DA (1×HDMI and 4×10GbE CAT)
  • Up to 4K@60 (4:4:4)
  • HDCP 1.4/2.2
  • Up to 100 m (CAT6A)
  • LAN and RS-232C transmission
Status Model number
Available NJR-L15UC-T
The NJR-L13UC-T(encoder)/NJR-L15UC-T(encoder)/NJR-L13UC-R(decoder)/NJR-L15UC-R(decoder) are AV over IP endpoints with EDID emulator for transmitting HDMI signals over a twisted pair cable. It supports 4K@60 signals and is HDCP 2.2 compliant.
The NJR-L13UC-T/NJR-L13UC-R includes three distribution outputs while the NJR-L15UC-T/NJR-L15UC-R have five distribution outputs. The distribution outputs of the encoders are HDMI output(s) and 10GbE outputs, and those on the decoders are HDMI output only.

The NJR-L also features LAN/RS-232C bidirectional communication.

This product can be used in combination with other IDK SDVoE supported products.
ItemNJR-L13UC-TNJR-L15UC-TNJR-L13UC-RNJR-L15UC-R
Video/Audio inputHDMI1 output－
HDMI/DVI 1.0 TMDS single link, HDCP 1.4/2.2
TMDS clock: Up to 300 MHz, TMDS data rate: Up to18 Gbps
Deep Color/HDR
640x480@60 to 3840x2160@60 Reduced Blanking
480i, 576i to 3840x2160@ 24/25/30/50/59.94/60 (4:4:4), 3840x2160@ 50/59.94/60 (4:2:0),
4096x2160@ 24/25/30/50/59.94/60 (4:4:4), 4096x2160@ 50/59.94/60 (4:2:0)
Color depth: 24/30/36 bits
*For all supported video signals, see the table below.
LPCM: Up to 8 channels
Sampling frequency: 32/44.1/48/88.2/96/176.4/192 kHz
Reference level: -20 dBFS, Max. input level: 0 dBFS
Connector: HDMI Type A
Maximum distances: 98 ft. (30 m) (1080p@60), 39 ft. (12 m) (4K@60)
10GbE－1 output
SDVoE, AES-128
Deep Color/HDR
*Supported video signals are the same as those of HDMI.
RS-232C/LAN
Connector: RJ-45
Maximum distances: 328 ft. (100 m)
Cable: CAT6A (STP)
Video/Audio
output		HDMI1 output3 outputs5 outputs
HDMI/DVI 1.0 TMDS single link, HDCP 1.4/2.2
TMDS clock: Up to 300 MHz, TMDS data rate: Up to 18 Gbps
Deep Color/HDR
640x480@60 to 3840x2160@60 Reduced Blanking
480i, 576i to 3840x2160@ 24/25/30/50/59.94/60 (4:4:4), 3840x2160@ 50/59.94/60 (4:2:0),
4096x2160@ 24/25/30/50/59.94/60 (4:4:4), 4096x2160@ 50/59.94/60 (4:2:0)
Color depth: 24/30/36 bits
*For all supported video signals, see the table below.
LPCM: Up to 8 channels
Sampling frequency: 32/44.1/48/88.2/96/176.4/192 kHz
Reference level: -20 dBFS, Max. output level: 0 dBFS
Connector: HDMI Type A
Maximum distances: 98 ft. (30 m) (1080p@60), 39 ft. (12 m) (4K@60)
10GbE2 outputs4 output－
SDVoE, AES-128
Deep Color/HDR
*Supported video signals are the same as those of HDMI.
RS-232C/LAN
Connector: RJ-45
Maximum distances: 328 ft. (100 m)
Cable: CAT6A (STP)
Analog audio1 output
Stereo L/R
Output impedance: 50 Ω unbalanced
Reference level: -10 dBu, Max. output level: +10 dBu
Connector: Captive screw (3-pin)
Other I/FRS-232C1 port/Connector: Captive screw (3-pin)
LAN1 port 10Base-T/100Base-TX (Auto Negotiation), Auto MDI/MDI-X, Connector: RJ-45
FunctionsAudioDe-Embedding
OthersEDID emulation, Anti-snow, Connection Reset
GeneralPowerDC 12 V 2.3 ADC 12 V 3.6 ADC 12 V 1.8 ADC 12 V 2.2 A
AC adapter:
AC 100 V - 240 V ±10%,
50 Hz/60 Hz ±3 Hz,
DC 12 V 3 A 36.0 W		AC adapter:
AC 100 V - 240 V ±10%, 50 Hz/60 Hz ±3 Hz,
DC 12 V 5 A 60.0 W		AC adapter: AC 100 V - 240 V ±10%,
50 Hz/60 Hz ±3 Hz, DC 12 V 3 A 36.0 W
Power consumption27.6 W43.2 W20.8 W25.6 W
Dimensions8.3 (W) × 1.7 (H) × 11.8 (D)” (210 (W) × 42 (H) × 300 (D) mm) (Excluding connectors and the like)
Weight5.1 lbs. (2.3 kg)5.3 lbs. (2.4 kg)4.9 lbs. (2.2 kg)
TemperatureOperating: 32°F to 104°F (0°C to +40°C), Storage: -4°F to +176°F (-20°C to +80°C)
Humidity20% to 90% (Non Condensing)
* Specifications are subject to change without notice.
  For the latest specification, please see product specification in PDF format.
NJR-L1xUC PR
1:39
Technical documents Version Size Format
Spec sheet NJR-L15UC-T Ver.1.0.0 0.5 MB PDF
User guide NJR-L15UC-T Ver.1.1.0 1.0 MB PDF
Command guide NJR-L15UC-T Ver.1.1.0 PDF
Dimensional outline drawing NJR-L15UC-T 0.7 MB PDF
Dimensional outline drawing NJR-L15UC-T 0.2 MB DXF
Frame diagram NJR-L15UC-T 0.2 MB DXF/DWG
Software Terms and Conditions of Use

In terms of software downloaded from this website and the contents such as documents and images embedded in or generated by the software (“Software”), IDK grants you a non-transferable, non-exclusive license to use the Software free of charge. IDK does not transfer any right and benefit, including but not limited to any intellectual property to you. Copyrights to the Software shall remain the property of IDK and/or the respective rights holders that have given usage permission to IDK. You are not permitted to retransmit, sell, modify, decompile, disassemble, reverse-engineer or in any way obtain the source code of the Software.
IDK does not make any warranty regarding the Software. In no event shall IDK be liable to you or any third party for any damages (general, direct, indirect, special, incidental or consequential) arising out of the use of or inability to use the Software.
IDK will not answer any inquiries regarding the Software and may suspend or stop providing the Software without notice.

Software Terms and Conditions of Use

In terms of software downloaded from this website and the contents such as documents and images embedded in or generated by the software (“Software”), IDK grants you a non-transferable, non-exclusive license to use the Software free of charge. IDK does not transfer any right and benefit, including but not limited to any intellectual property to you. Copyrights to the Software shall remain the property of IDK and/or the respective rights holders that have given usage permission to IDK. You are not permitted to retransmit, sell, modify, decompile, disassemble, reverse-engineer or in any way obtain the source code of the Software.
IDK does not make any warranty regarding the Software. In no event shall IDK be liable to you or any third party for any damages (general, direct, indirect, special, incidental or consequential) arising out of the use of or inability to use the Software.
IDK will not answer any inquiries regarding the Software and may suspend or stop providing the Software without notice.

Application software Version Size Format
IP-NINJAR Configurator None
EDID Configuration Tool Windows 11
.NET 8 or later 		Ver.1.5.0 7.6 MB ZIP
Options
Related products
Series products
Description
The NJR-L13UC-T(encoder)/NJR-L15UC-T(encoder)/NJR-L13UC-R(decoder)/NJR-L15UC-R(decoder) are AV over IP endpoints with EDID emulator for transmitting HDMI signals over a twisted pair cable. It supports 4K@60 signals and is HDCP 2.2 compliant.
The NJR-L13UC-T/NJR-L13UC-R includes three distribution outputs while the NJR-L15UC-T/NJR-L15UC-R have five distribution outputs. The distribution outputs of the encoders are HDMI output(s) and 10GbE outputs, and those on the decoders are HDMI output only.

The NJR-L also features LAN/RS-232C bidirectional communication.

This product can be used in combination with other IDK SDVoE supported products.
Close
Specifications [PDF]
Videos
NJR-L1xUC PR
1:39
Close

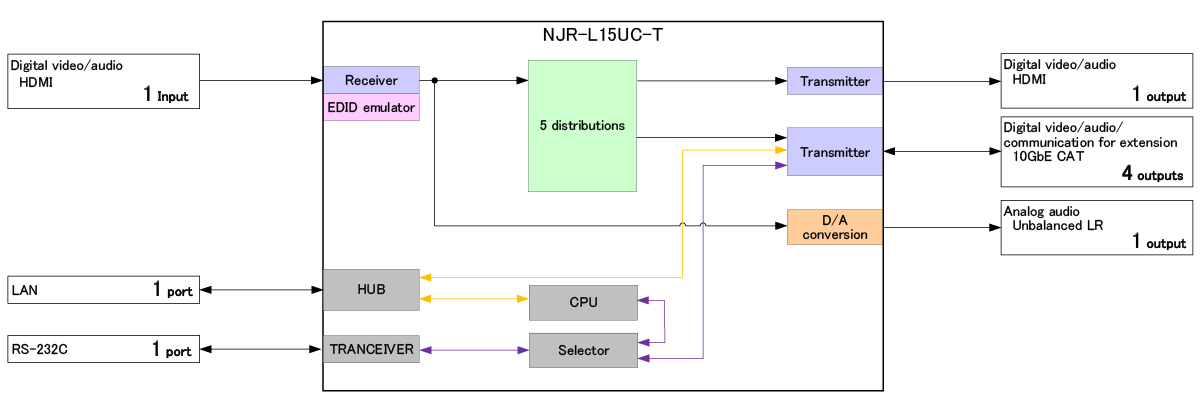

Diagrams
