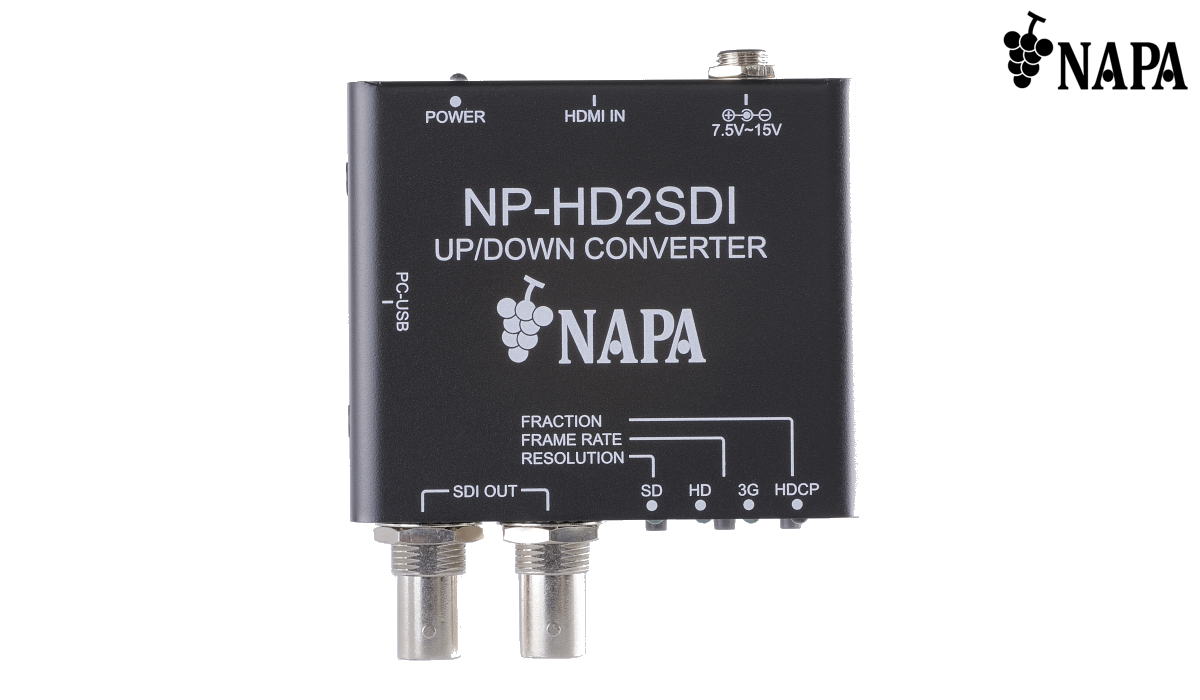

3G/HD/SD-SDI HDMI to SDI Converter NP-HD2SDI
- HDMI to SDI conversion
- 3G/HD/SD-SDI
- Up to 1080p
- 1×2 DA (SDI)
- Up/down conversion
| Status | Model number |
|---|---|
| Available | NP-HD2SDI |
NP-HD2SDI is a simple converter which can convert HDMI signal to 3G/HD/SD-SDI signal. Up/Down convert functions are installed. 1 HDMI input signal can be distributed to 2 SDI output signal.
| Item | NP-HD2SDI | |
|---|---|---|
| Video Input | HDMI | 1 input |
| HDTV:1080p@ 50 / 59.94 / 60, 1080i@ 50 / 59.94 / 60, 1080p@ 23.97 / 24 /25 /29.97 / 30, 720p@ 50 / 59.94 / 60, 525i, 625i VESA:VGA(640x480),VGA(800x600),XGA(1024x768),WXGA(1280x768),WXGA(1280x800), Quad-VGA(1280x960), SXGA(1280x1024),WXGA(1360x768), WXGA(1366x768),SXGA+(1400x1050),WXGA+(1440x900),WXGA++(1600x900),UXGA(1600x1200),WSXGA+(1680x1050),WUXGA(1920x1200) |
||
| Video Output | SDI | 1 output |
| SD / HD / 3G-SDI ・3G format 1080p50/59.94/60 ・HD format 1080p 23.97/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 ・SD format 625i (PAL) 525i (NTSC) |
||
| Audio Format | Embedded Audio (2 ch, 24 bit, 48 kHz) ※SDI Embedded Audio Channel 1-2 |
|
| Plug & Play | Yes | |
| Dimensions | 74 (W) x 63.6 (D) x 22 (H) mm (Without projections） | |
| Weight | 170 g | |
| Temperature | Operation: 0 to 50 degrees C, Storage: -20 to +60 degrees C | |
| Humidity | Operation/Storage: 20 to 90 % (Without condensing) | |
| Power Consumptions | 4.92W (12V, 410mA) | |
| Accessories | DC power adapter with locking mechanism x 1 | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet NP-HD2SDI | Ver.1.3.0 | 0.1 MB | |
| User guide NP-HD2SDI | Ver.1.0.0 | 1.2 MB |
