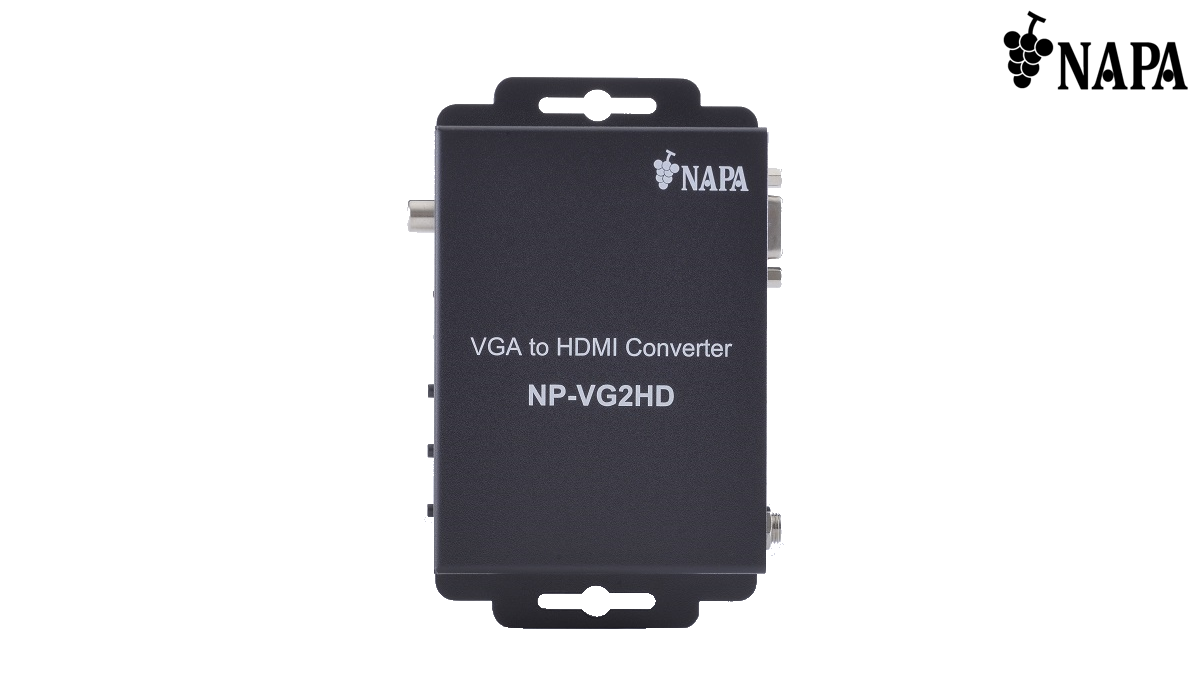

VGA to HDMI Converter NP-VG2HD
- Analog RGB to HDMI conversion
- Up to 1080p/WUXGA(RB)
- Up/down conversion
- Embedding analog audio
- 180-degree video rotation
- Test pattern output
| Status | Model number |
|---|---|
| Available | NP-VG2HD |
NP-VG2HD is VGA and Audio to HDMI Scaler Converter. For video input, VGA video is supported. Input video signal is converted to HDMI signal at resolutions at up to 1080p. For audio input, analog audio and S/PDIF are supported and those signals are converted to HDMI signal.
| Item | NP-VG2HD | |
|---|---|---|
| Input | Video | 1 input / Analog RGB - Analog RGB: 0.7 V [p-p] 1x female 15-pin HD |
| Analog SVGA / XGA / WXGA(1280x800) / SXGA / UXGA / WSXGA+ / 576p / 720p / 1080p EDID is always 1080p |
||
| Audio | Digital: 1 input S/PDIF |
|
| Analog: 1 input Stereo LR unbalanced signal 1x RCA pin jack |
||
| Output | Video | 1 output 1x female HDMI Type A (19-pin) |
| VGA / SVGA / XGA / SXGA / WXGA (1360x768) / WXGA (1366x768) / SXGA+ / WXGA+/ UXGA / WSXGA+ / 1920 x 1080* / WUXGA* / 480i / 480p / 576i / 576p / 720p / 1080i / 1080p * 1920 x 1080 / WUXGA are only output as Reduced Blanking |
||
| Audio | 1 output 1x female HDMI Type A (19-pin) |
|
| Scan Converter | Picture adjustment (brightness, contrast), Test pattern | |
| Others | H-Mirror, V-Mirror, H-Shift, V-Shift | |
| Power | DC 5V 4A | |
| Power consumption | About 5 Watts | |
| Dimensions | 117 (W) × 26 (H) × 82 (D) mm) (Excluding connectors and the like) |
|
| Weight | 0.29 kg | |
| Temperature | Operating: 0 °C to +40 °C Storage: -20 °C to +60 °C |
|
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet NP-VG2HD | Ver.1.0.0 | 0.1 MB | |
| User guide NP-VG2HD | Ver.1.3.0 | 0.5 MB |
