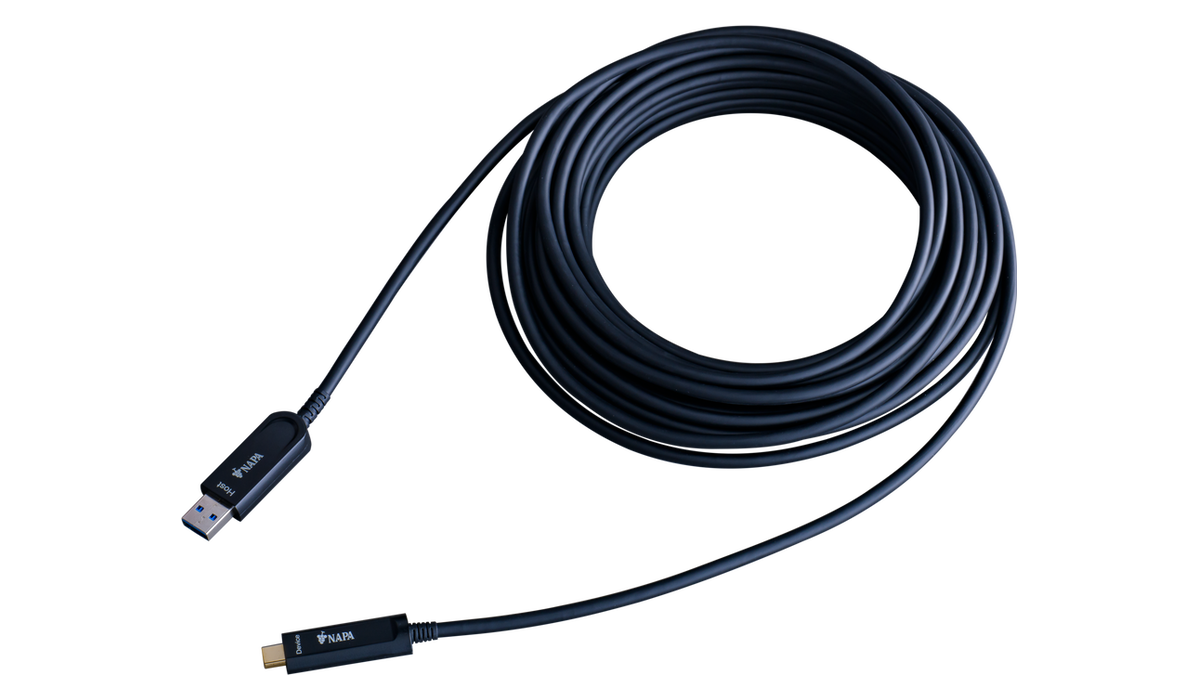

USB 3.2 / 2.0 / 1.1 USB Active Optical Cable NP-AOC-SA2C-xx
- USB 3.2/2.0/1.1
- Up to 15 m
- USB Video Class
- Bend radius: 18 mm/cable diameter: 4.5 mm
- Tensile strength: about 15 kg
- Operate only using power supply from PC
| Status | Model number | Length |
|---|---|---|
| Available | NP-AOC-SA2C-10 | 10 m |
| Status | Model number | Length |
|---|---|---|
| Available | NP-AOC-SA2C-15 | 15 m |
NP-AOC-SA2C extends USB 3.2 / 2.0 / 1.1 data up to 15 m with USB optical extension cable and USB-C / USB-A connector.
Cable weight for easy installation since power supplied from the HDMI terminal on the source, no external power supply required.
Cable weight for easy installation since power supplied from the HDMI terminal on the source, no external power supply required.
| Item | NP-AOC-SA2C | |
|---|---|---|
| Data Transfer | USB | USB 3.2 Gen2x1 / USB 2.0 / USB 1.1 USB Data speed: SuperSpeed / High-Speed / Full-Speed / Low-Speed Data rate: 10 Gbps |

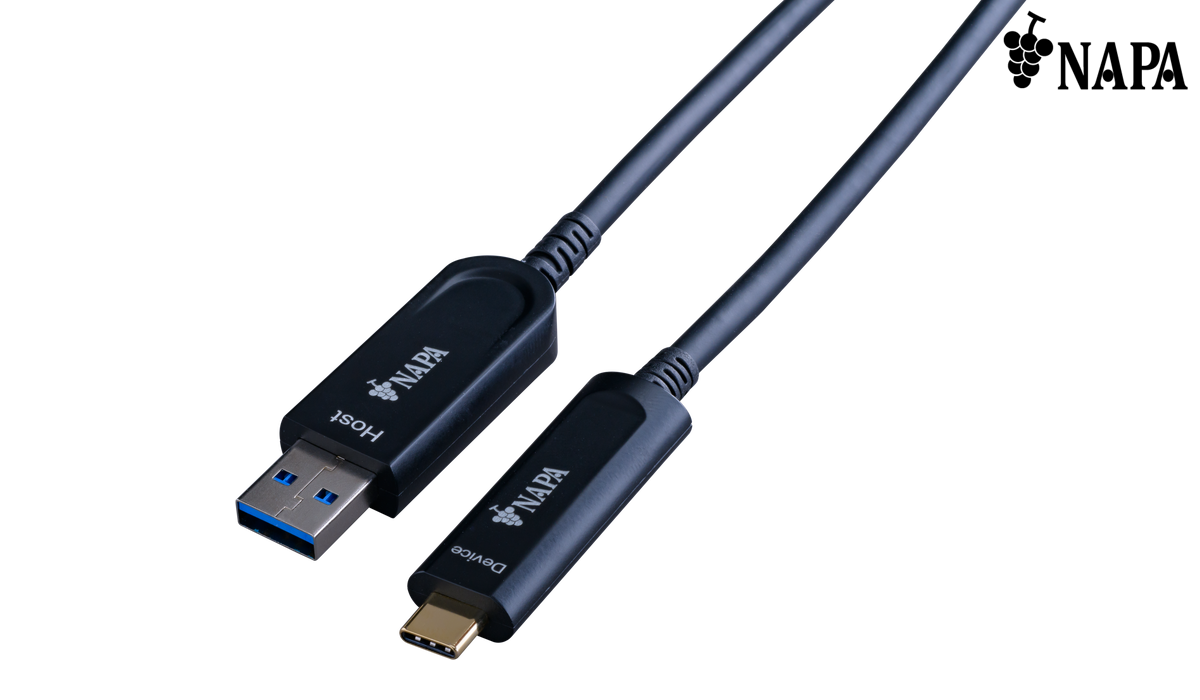

| Connector: USB Type-C(Device side) USB Type A(Host side) Length: 10 ～ 15 m (*1) |
||
| Cable | Structure | Optical Multi mode3 composite optical cable |
| Skin | PVC | |
| Diameter | 4.5 mm | |
| Bending Radius | 18 mm (permanent bending radius) | |
| Pull Length | Approx. 15 kg (Cable and connector joint) | |
| General | AC adapter | Supplied from connected host devices (Host side) (* 2) |
| Available Current | Approx. 0.5 W | |
| Dimensions | 18 (W) x 9 (H) x 40 (D) mm (Type-A connector) | |
| 15 (W) x 7.5 (H) x 41 (D) mm (Type-C connector) | ||
| Weight | 0.68 kg (15 m) | |
| Temperature | Operating: 0 °C to +40 °C Storage: -20 °C to +70 °C | |
| Humidity | 20 % to 85 % (No condensation) | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet NP-AOC-SA2C-xx | Ver.1.0.0 | 0.1 MB |
