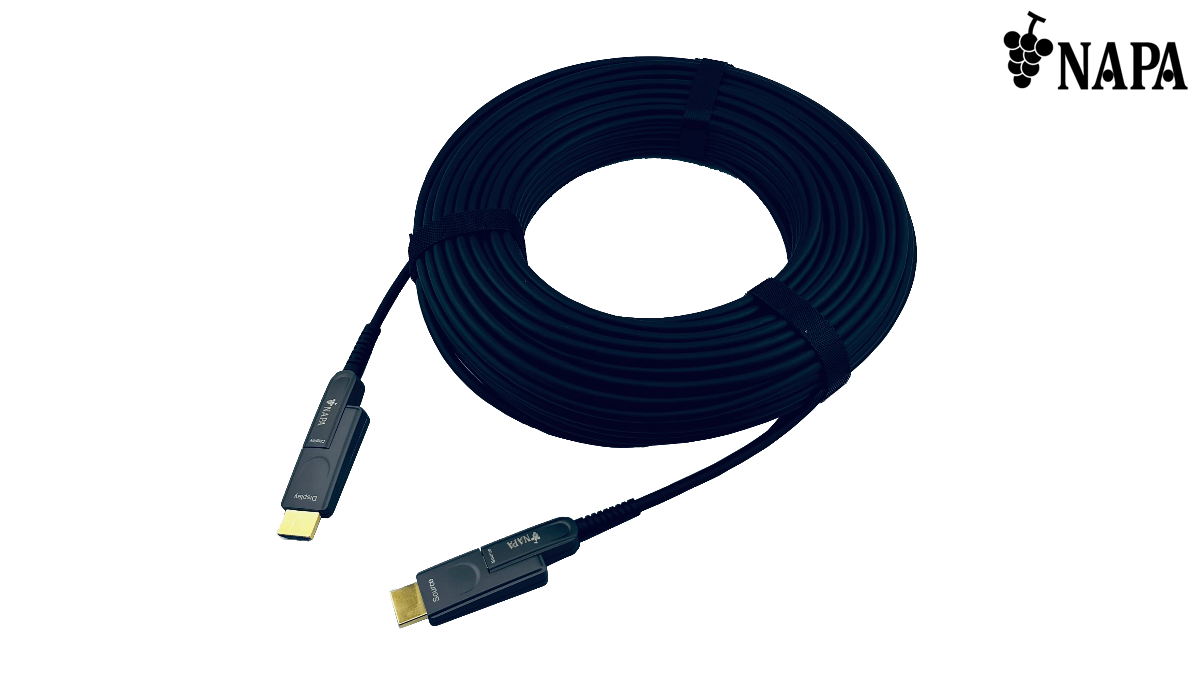

4K@60 HDMI Active Optical Cable Detachable model NP-AOC-SUHD2-xx
- Up to 4K@60 (4:4:4)
- Up to 50 m
- Detachable connector type
- Bend radius: 25.4 mm/cable diameter: 4.5 mm
- Tensile strength: about 15 kg
- Operate only using power supply from source
| Status | Model number | Length |
|---|---|---|
| Available | NP-AOC-SUHD2-10 | 10 m |
| Available | NP-AOC-SUHD2-20 | 20 m |
| Available | NP-AOC-SUHD2-30 | 30 m |
| Status | Model number | Length |
|---|---|---|
| Available | NP-AOC-SUHD2-40 | 40 m |
| Available | NP-AOC-SUHD2-50 | 50 m |
NP-AOC-SUHD2 extends UHD 4K 60Hz up to 50m with an HDMI optical extension cable and detachable connectors for both sides.
It is superior to conventional coaxial cables and optical extension cables in terms of signal degradation, loss, transmission distance limitations, and cable
weight for easy installation. Since power supplied from the HDMI terminal on the source, no external power supply is required.
It is superior to conventional coaxial cables and optical extension cables in terms of signal degradation, loss, transmission distance limitations, and cable
weight for easy installation. Since power supplied from the HDMI terminal on the source, no external power supply is required.
| Item | NP-AOC-SUHD2 | |
|---|---|---|
| Video / Audio | HDMI | HDMI / DVI 1.0 TMDS Single Link, HDCP 1.4 / 2.2 TMDS Clock: Max 300 MHz, TMDS Data Rate: Max 18 Gbps Deep Color / HDR / CEC / (* 1) |
| 640x480@60 to 2560x1600@60 Reduce Blanking、 480i, 576i to 3840x2160@24 / 25 / 30 / 50 / 59.94 / 60 (4:4:4), 3840x2160@50 / 59.94 / 60 (4:2:0)、 4096x2160@24 / 25 / 30 / 50 / 59.94 / 60 (4:4:4), 4096x2160@50 / 59.94 / 60 (4:2:0) Color Depth: 24, 30, 36 bits ※Reference Sheet below |
||
| Linear PCM, Dolby Digital True HD, DTS-HD Master Audio | ||
| Connector: HDMI Type A (19 pin) Length: 5 to 50 m (* 2) |
||
| Cable | Structure | Optical Multi mode3 composite optical cable |
| Skin | PVC | |
| Diameter | 4.5 mm | |
| Bending Radius | 25.4 mm (permanent bending radius) | |
| Pull Length | Approx. 15 kg (Cable and connector joint) | |
| General | AC adapter | Supplied from HDMI pin 18 (source side) (* 3) |
| Available Current | Approx. 0.5 W | |
| Dimensions | 89.5 (W) x 10 (H) x 20 (D) mm (excluding protrusions) | |
| Weight | 1.65 kg (50 m) | |
| Temperature | Operating: 0 °C to +40 °C Storage: -20 °C to +70 °C | |
| Humidity | 20 % to 85 % (No condensation) | |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet NP-AOC-SUHD2-xx | Ver.1.0.0 | 0.2 MB | |
| Easy installation guide NP-AOC-SUHD2-xx | Ver.1.0.0 |
