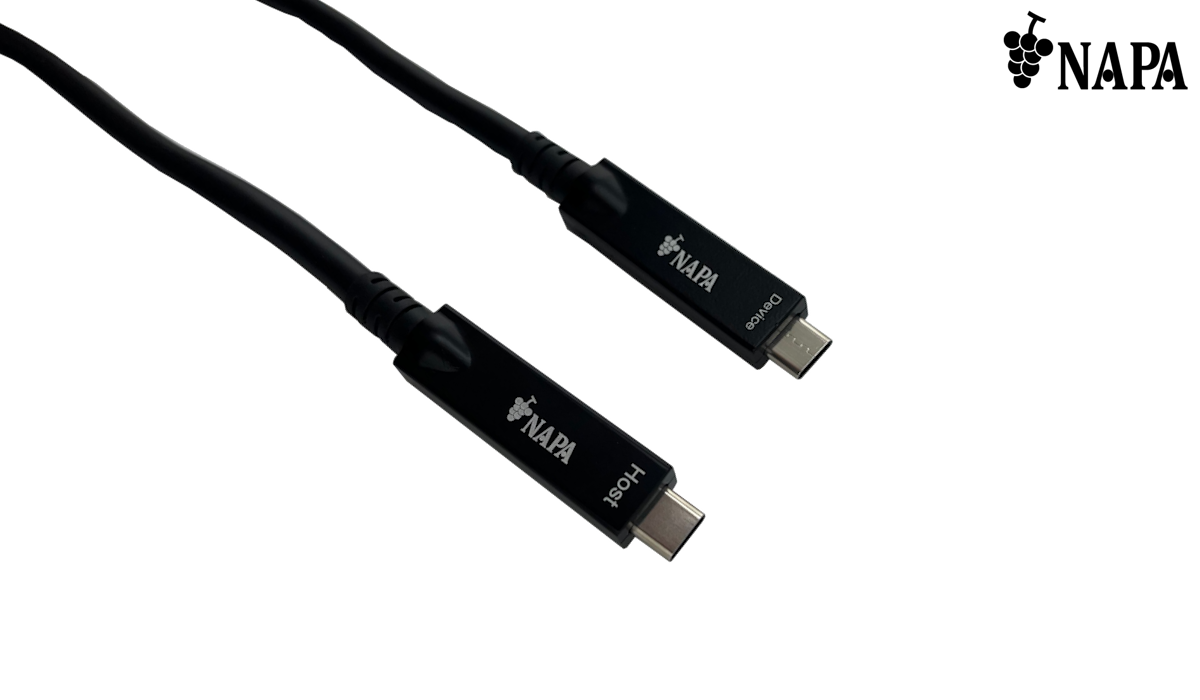

4K@60 USB Active Optical Cable DP Alt Mode/Power Delivery/Data Supported model NP-AOC-SUSC-xx
- Up to 4K@60 (4:4:4)
- Up to 15 m
- USB Type-C Alternate Mode
- USB 3.2/2.0/1.1
- USB Power Delivery (60W)
- USB Video Class
- Operate only using power supply from source
| Status | Model number | Length |
|---|---|---|
| Available | NP-AOC-SUSC-05 | 5 m |
| Available | NP-AOC-SUSC-10 | 10 m |
| Status | Model number | Length |
|---|---|---|
| Available | NP-AOC-SUSC-15 | 15 m |
NP-AOC-SUSC is a full-featured Active Optical Cable as it extends 4K@60 video signals and USB 3.2 / 2.0 / 1.1 data up to 15 m with USB optical extension cable and USB-C connectors.
Cable weight for easy installation since power supplied from the connected host devices such as PC, no external power supply required.
Cable weight for easy installation since power supplied from the connected host devices such as PC, no external power supply required.
| Item | NP-AOC-SUSC |
|---|---|
| USB | USB 3.2 Gen2x1 / USB 2.0 / USB 1.1 USB Data speed: SuperSpeed / High-Speed / Full-Speed / Low-Speed Data rate: 10 Gbps |
| Alternate Mode | DisplayPort Alternate Mode on USB Type-C、DisplayPort 1.4 Transmission Bandwidth: 8.1 Gbps / 1 Lane (DisplayPort 1.4) |
| Resolution | 640x480@60 to 2560x1600@60 Reduce Blanking、 480i, 576i to 3840x2160@24 / 25 / 30 / 50 / 59.94 / 60 (4:4:4), 3840x2160@50 / 59.94 / 60 (4:2:0)、 4096x2160@24 / 25 / 30 / 50 / 59.94 / 60 (4:4:4), 4096x2160@50 / 59.94 / 60 (4:2:0) Color Depth: 24, 30, 36 bits ※Reference Sheet below |
| USB Power Delivery | ～10 m: Max 60 W (20 V / 3 A) 15 m: Max 40 W |
| Connector | USB Type-C |
| Length | 5 ～ 15 m (*1) |
| Structure | Optical Multi mode3 composite optical cable |
| Skin | PVC |
| Diameter | 6.5 mm |
| Bending Radius | 20 mm (permanent bending radius) |
| Pull Length | Approx. 10.2 kg (Cable and connector joint) |
| AC adapter | Supplied from connected host devices (Host side) (* 2) |
| Available Current | Approx. 1.1 W |
| Dimensions | 12.5 (W) x 7.8 (H) x 66.3 (D) mm (connector) |
| Weight | 0.96 kg (15 m) |
| Temperature | Operating: 0 °C to +40 °C Storage: -20 °C to +70 °C |
| Humidity | 20 % to 85 % (No condensation) |
* Specifications are subject to change without notice.
For the latest specification, please see product specification in PDF format.
For the latest specification, please see product specification in PDF format.
| Technical documents | Version | Size | Format |
|---|---|---|---|
| Spec sheet NP-AOC-SUSC-xx | Ver.1.0.0 | 0.2 MB |
