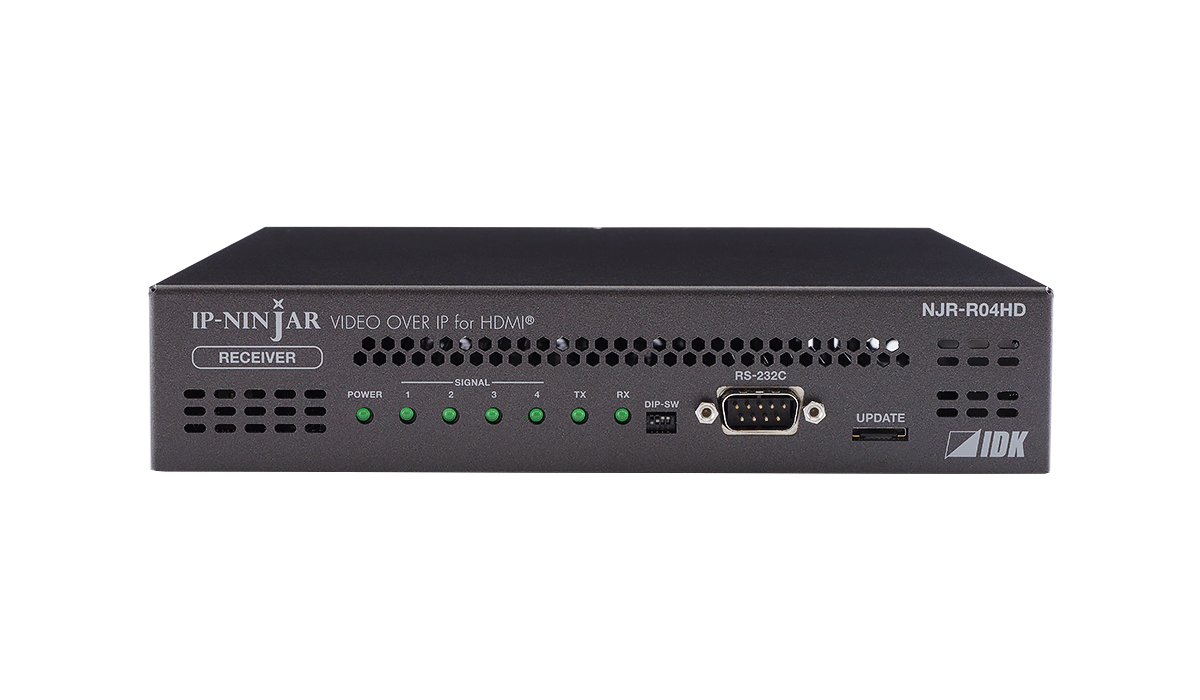

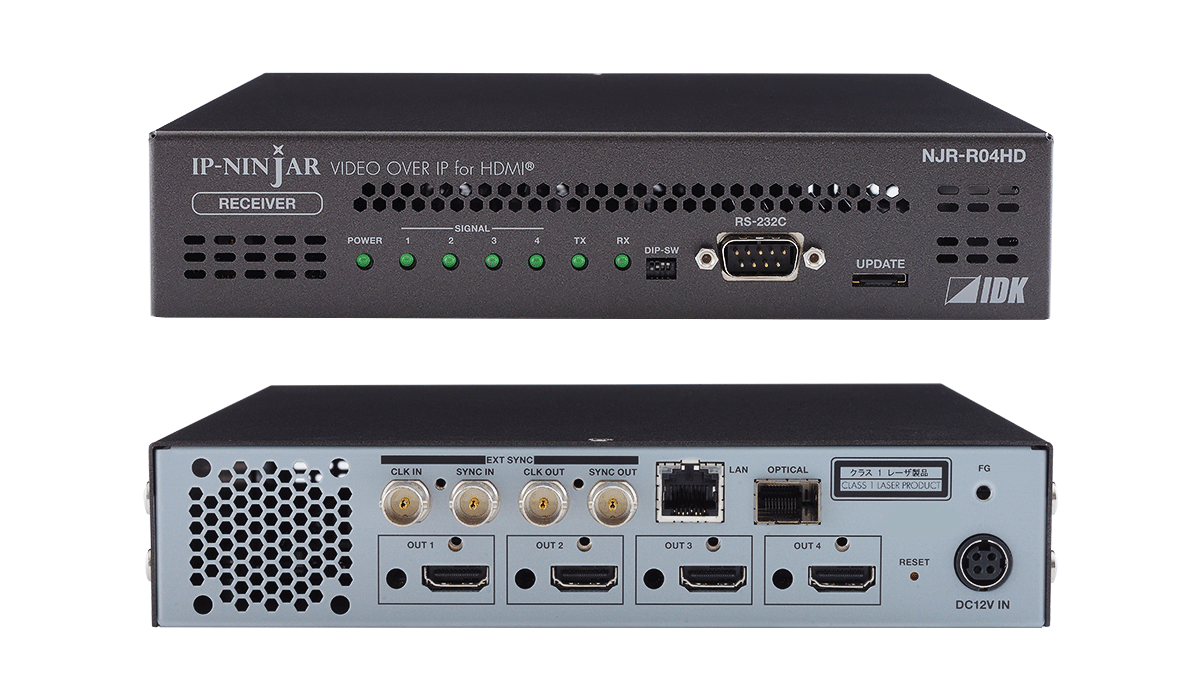

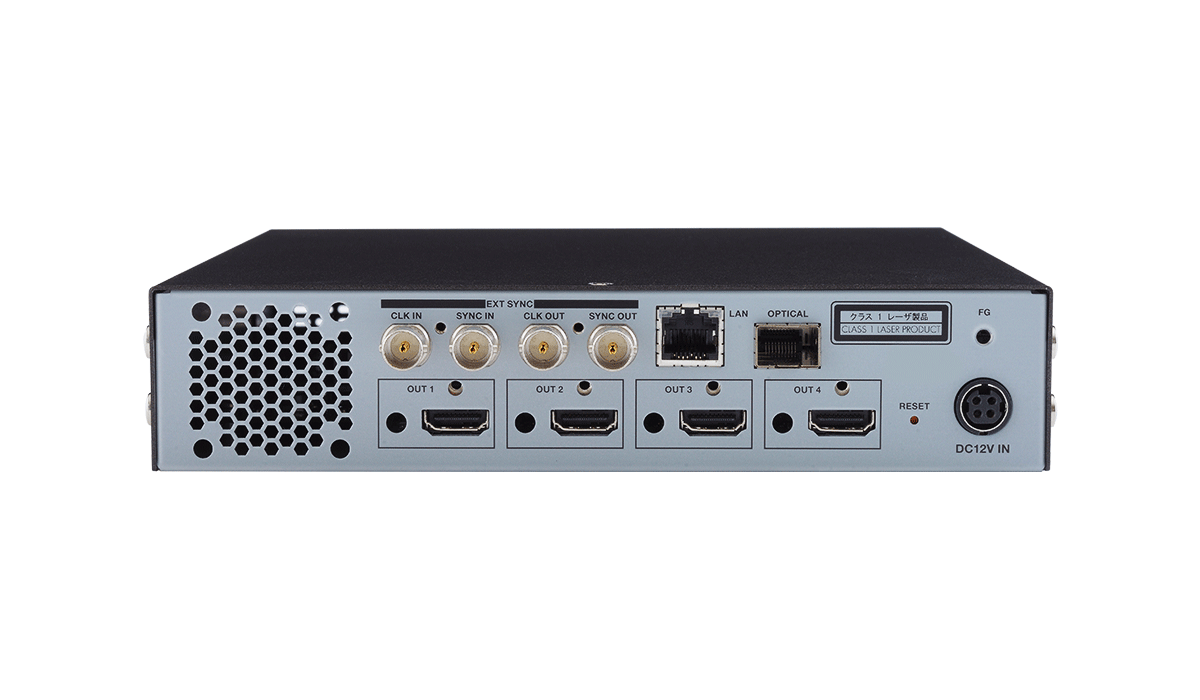

4-channel HDMI Decoder Fiber model NJR-R04HD

  • 4-channel HDMI outputs
  • Up to 1080p
  • HDCP 1.4
  • Up to 300 m (Multimode fiber)
  • Up to 10 km (Singlemode fiber)
  • Seamless switching (freeze/black frame)
  • Videowall and Multiview
Status Model number
Available NJR-R04HD
SFP+ optical transceiver
Available 10G-MM-SFP SFP+ transceiver: Multimode fiber
Available SFP-L10GSR SFP+ transceiver: Multimode fiber
Available SFP-L10GLR SFP+ transceiver: Singlemode fiber
The NJR-T04HD (encoder)/NJR-R04HD (decoder) is a 4-port HDMI AV over IP device with built-in scan converter.
This extender transmits 4-channel HDMI signal over one duplex fiber cable, and it supports RS-232C bidirectional communication and LAN transmission.
The NJR-T04HD/NJR-R04HD can be used as a 4-input and 4-output matrix switcher or splitter. One NJR-R04HD can configure videowall with 4 or fewer displays and multiple NJR-R04HDs enable videowall with larger number of displays using the sync function.

The NJR-T04HD/NJR-R04HD can be used with other IP-NINJAR products. For example, if the NJR-R01UHD is connected to the NJR-T04HD, 4 full HD video signals that are input to the NJR-T04HD can be displayed as a 4K@60 video signal in a sink device.
If the NJR-T01UHD is connected to the NJR-R04HD, a 4K@60 video signal that is input to the NJR-T01UHD can be divided and displayed in four sink devices. (In case the 4K video is protected by HDCP 2.2, the NJR-R04HD cannot display video signals.)
ItemDescription
Input1 input
Digital optical signal for extension
Format: IP-NINJAR protocol
RS-232C/LAN
Connector: 2 LCs
Output4 outputs HDMI /DVI 1.0
TMDS single link
HDCP 1.4
Automatic input signal equalization
Connector: Female, HDMI Type A (19-pin)
FormatVGA / SVGA / XGA / WXGA (1280x768) /
WXGA (1280x800) / Quad-VGA / SXGA /
WXGA (1360x768) / WXGA (1366x768) / SXGA+ / WXGA+ / WXGA++ / UXGA / WSXGA+ / VESAHD / WUXGA / QWXGA
For WUXGA / QWXGA, only Reduced Blanking is supported.
480i / 480p / 576i / 576p / 720p / 1080i / 1080p /
4K (3840 x 2160) / 4K (4096 x 2160)
Color depth24 bit, 30 bit Deep Color
Dot clock25 MHz to 165 MHz
TMDS clock25 MHz to 225 MHz
TMDS data rate0.75 Gbps to 6.75 Gbps
Digital audio input/outputMulti-channel LPCM up to 8 channels
Sampling frequency: 32 kHz to 192 kHz, Sample size:16 bit to 24 bit
Lip Sync delayMax. 160 ms.
External sync. I/O1 input and output (SYNC, CLK)
Level: TTL
Connector: BNC
For sync between IDK’s NJR-R04HD only.
HDMI cable for transmission distancesUp to 164 ft. (50 m)
Cable for extensionCableDuplex fiber cable
SFP+ optical transceiver
Transmission distances Up to 984 ft. (300 m) (OM3 Multimode fiber), Up to 6.21 mi. (10 km) (OS1 Singlemode fiber)
ControlRS-232C1 port/male D-sub (9-pin), full duplex, up to 115.2 kbps
LAN1 port/RJ-45 10Base-T/100Base-TX/1000Base-T (Auto Negotiation), Auto MDI/MDI-X
FunctionsScan conversionMotion adaptive interlaced/progressive conversion, Aspect Ratio Control
OthersMatrix switching, Lip Sync, DDC buffer,
Connection Reset
GeneralAC adapterInput: 100 - 240 VAC ± 10%, 50 Hz/60 Hz ± 3 Hz
Output: DC 12 V 5 A 60.0 W (A dedicated AC adapter is provided)
Power consumptionAbout 39 Watts
Dimensions8.3 (W) × 1.7 (H) × 9.8 (D)" (210 (W) × 44 (H) × 250 (D) mm)
(Half rack wide, 1U high) (Excluding connectors and the like)
Weight4.2lbs. (1.9 kg)
TemperatureOperating: 32°F to 104°F (0°C to +40°C)
Storage: -4°F to +176°F (-20°C to +80°C)
HumidityOperating/Storage: 20% to 90% (Non Condensing)
* Specifications are subject to change without notice.
  For the latest specification, please see product specification in PDF format.
IP-NINJAR: 160x160 AV over IP Connection Test
1:40
Technical documents Version Size Format
Spec sheet NJR-R04HD Ver.1.8.0 1.3 MB PDF
User guide NJR-R04HD Ver.1.7.0 1.7 MB PDF
Command guide NJR-R04HD Ver.1.3.0 1.6 MB PDF
Dimensional outline drawing NJR-R04HD 0.6 MB PDF
Dimensional outline drawing NJR-R04HD 0.2 MB DXF
Frame diagram NJR-R04HD 0.2 MB DXF/DWG
PDN NJR-R04HD 0.1 MB PDF
Software Terms and Conditions of Use

In terms of software downloaded from this website and the contents such as documents and images embedded in or generated by the software (“Software”), IDK grants you a non-transferable, non-exclusive license to use the Software free of charge. IDK does not transfer any right and benefit, including but not limited to any intellectual property to you. Copyrights to the Software shall remain the property of IDK and/or the respective rights holders that have given usage permission to IDK. You are not permitted to retransmit, sell, modify, decompile, disassemble, reverse-engineer or in any way obtain the source code of the Software.
IDK does not make any warranty regarding the Software. In no event shall IDK be liable to you or any third party for any damages (general, direct, indirect, special, incidental or consequential) arising out of the use of or inability to use the Software.
IDK will not answer any inquiries regarding the Software and may suspend or stop providing the Software without notice.

Application software Version Size Format
IP-NINJAR Configurator None

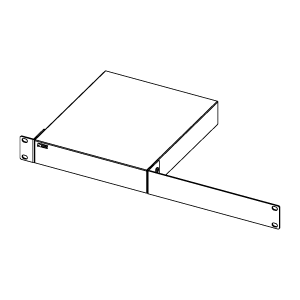

Options
Related products
Series products
Description
The NJR-T04HD (encoder)/NJR-R04HD (decoder) is a 4-port HDMI AV over IP device with built-in scan converter.
This extender transmits 4-channel HDMI signal over one duplex fiber cable, and it supports RS-232C bidirectional communication and LAN transmission.
The NJR-T04HD/NJR-R04HD can be used as a 4-input and 4-output matrix switcher or splitter. One NJR-R04HD can configure videowall with 4 or fewer displays and multiple NJR-R04HDs enable videowall with larger number of displays using the sync function.

The NJR-T04HD/NJR-R04HD can be used with other IP-NINJAR products. For example, if the NJR-R01UHD is connected to the NJR-T04HD, 4 full HD video signals that are input to the NJR-T04HD can be displayed as a 4K@60 video signal in a sink device.
If the NJR-T01UHD is connected to the NJR-R04HD, a 4K@60 video signal that is input to the NJR-T01UHD can be divided and displayed in four sink devices. (In case the 4K video is protected by HDCP 2.2, the NJR-R04HD cannot display video signals.)
Close
Specifications [PDF]
Videos
IP-NINJAR: 160x160 AV over IP Connection Test
1:40
Close

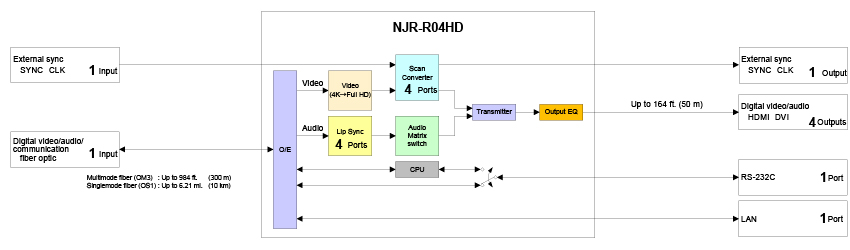

Diagrams
