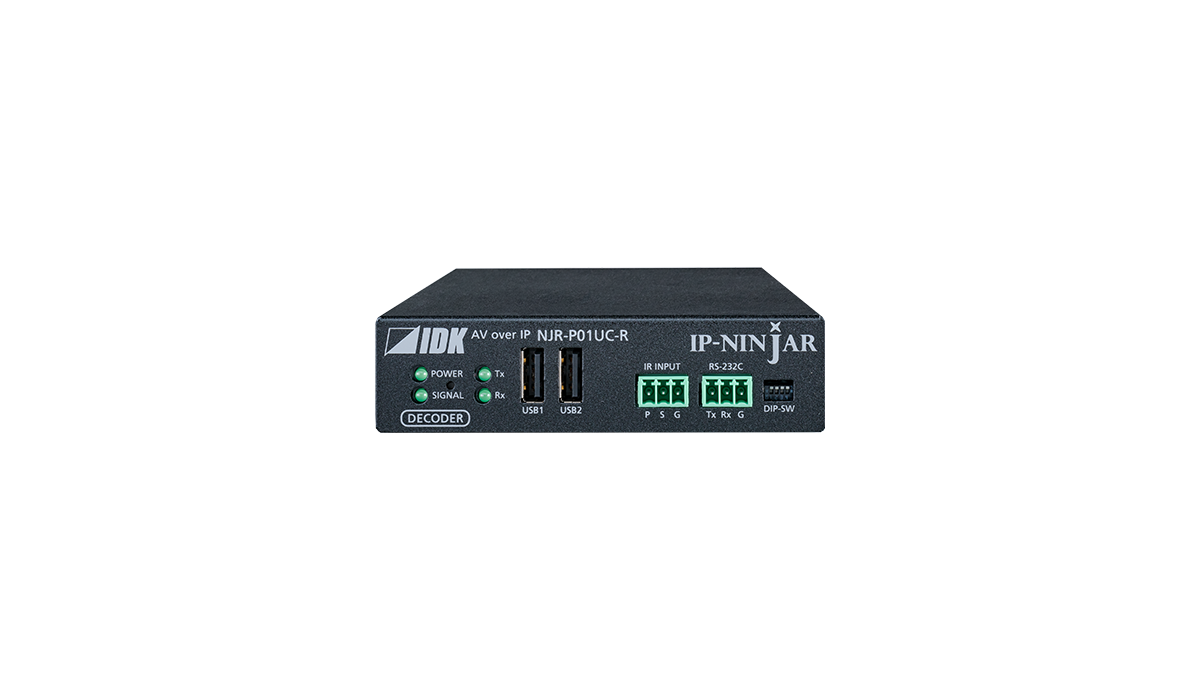

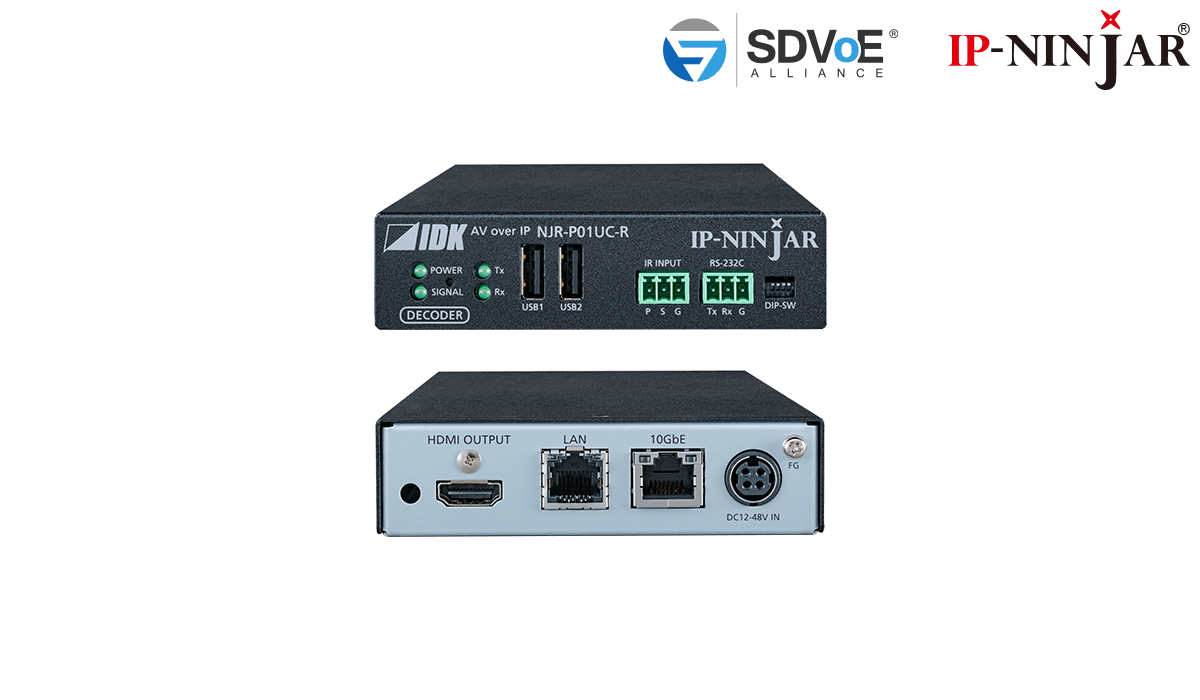

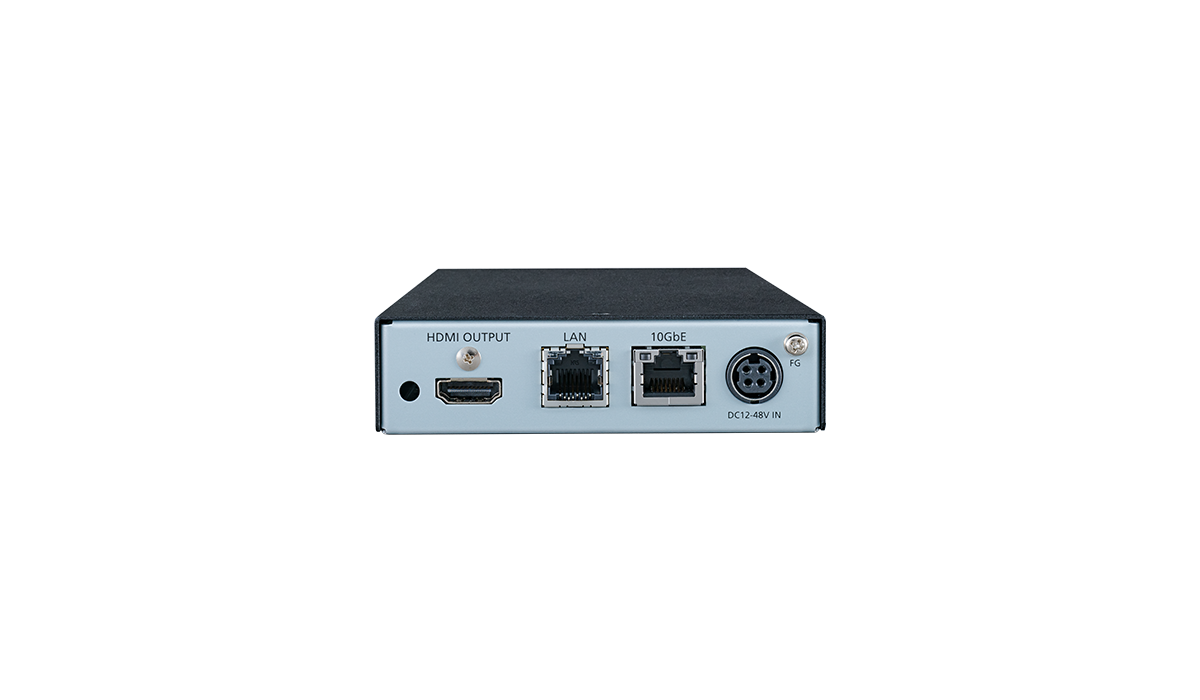

4K@60 HDMI Decoder CAT model NJR-P01UC-R

  • Up to 4K@60 (4:4:4)
  • HDCP 1.4/2.2
  • Up to 100 m (CAT6A)
  • Seamless (freeze)/KVM switching
  • Videowall and Multiview
  • Control from IR controller
  • PoE+ (IEEE 802.3at)
Status Model number
Available NJR-P01UC-R
The NJR-P01UC is an AV over IP solution for high definition signal transmission via category cables.
This 4K solution leverages 10 Gb Ethernet switches and enables signal management of 4K@60 (4:4:4) signals with zero frame latency. USB HID class is also supported for KVM extension application. Additionally, via the NJR-P01UC, the NJR-CTB can be controlled using an IR cable (IR-P01-R) and recommended remote controller. The NJR-P01UC features LAN/RS-232C bidirectional communication.
The NJR-P01UC can be powered from PoE-supported 10 GbE switch over a Category cable; this feature eliminates the need for AC adapter.
ItemDescription
Video/Audio input10GbE1 input
SDVoE, AES-128
Deep Color/HDR
*Supported video signals are the same as those of HDMI.
RS-232C/LAN/USB
Connector: RJ-45
Maximum distances: 328 ft. (100 m)
Cable: CAT6A (STP)
　　　*For PoE, 24 AWG or thicker cable is recommended.
Video/Audio outputHDMI1 output
HDMI/DVI 1.0 TMDS single link, HDCP 1.4/2.2
TMDS clock: Up to 300 MHz, TMDS data rate: Up to 18 Gbps
Deep Color/HDR
640x480@60 to 3840x2160@60 Reduced Blanking
480i, 576i to 3840x2160@ 24/25/30/50/59.94/60 (4:4:4), 3840x2160@ 50/59.94/60 (4:2:0),
　　　　　　 4096x2160@ 24/25/30/50/59.94/60 (4:4:4), 4096x2160@ 50/59.94/60 (4:2:0)
Color depth: 24/30/36 bits
*For all supported video signals, see the table below.
LPCM: Up to 8 channels
Sampling frequency: 32/44.1/48/88.2/96/176.4/192 kHz
Reference level: -20 dBFS, Max. output level: 0 dBFS
Connector: HDMI Type A (19-pin)
Maximum distances: 98 ft. (30 m) (1080p@60), 39 ft. (12 m) (4K@60)
Control I/FRS-232C1 port/Connector: Captive screw (3-pin)
LAN1 port/10Base-T/100Base-TX/1000Base-T (Auto Negotiation), Auto MDI/MDI-X, Connector: RJ-45
USB2 ports/HID class, Connector: Female Type-A
IR input1 port/Connector: Captive screw (3-pin)
FunctionsEDID emulation, Connection Reset
GeneralPowerPoE, Connector: RJ-45 (10GbE input)
DC 12 V 1.1 A
AC adapter: AC 100 V - 240 V ±10%, 50 Hz/60 Hz ±3 Hz, DC 12 V 3 A 36.0 W
Power consumptionPoE: 13 W
DC 12 V: 13 W
Dimensions4.2 (W) × 1.1 (H) ×7.9 (D)” (106 (W) × 28 (H) × 200 (D) mm) (Excluding connectors and the like)
Weight1.8 lbs. (0.8 kg)
TemperatureOperating: 32°F to 104°F (0°C to +40°C), Storage: -4°F to +176°F (-20°C to +80°C)
Humidity20% to 90% (Non Condensing)
* Specifications are subject to change without notice.
  For the latest specification, please see product specification in PDF format.
NJR-P01U Series
1:47
IP-NINJAR: 160x160 AV over IP Connection Test
1:40
Technical documents Version Size Format
Spec sheet NJR-P01UC-R Ver.2.0.0 0.2 MB PDF
User guide NJR-P01UC-R Ver.2.3.0 6.4 MB PDF
Command guide NJR-P01UC-R Ver.1.0.0 0.6 MB PDF
Dimensional outline drawing NJR-P01UC-R 0.9 MB PDF
Dimensional outline drawing NJR-P01UC-R 0.2 MB DXF
Frame diagram NJR-P01UC-R 0.2 MB DXF/DWG
Software Terms and Conditions of Use

In terms of software downloaded from this website and the contents such as documents and images embedded in or generated by the software (“Software”), IDK grants you a non-transferable, non-exclusive license to use the Software free of charge. IDK does not transfer any right and benefit, including but not limited to any intellectual property to you. Copyrights to the Software shall remain the property of IDK and/or the respective rights holders that have given usage permission to IDK. You are not permitted to retransmit, sell, modify, decompile, disassemble, reverse-engineer or in any way obtain the source code of the Software.
IDK does not make any warranty regarding the Software. In no event shall IDK be liable to you or any third party for any damages (general, direct, indirect, special, incidental or consequential) arising out of the use of or inability to use the Software.
IDK will not answer any inquiries regarding the Software and may suspend or stop providing the Software without notice.

Application software Version Size Format
IP-NINJAR Configurator None
Options
Related products
Series products
Description
The NJR-P01UC is an AV over IP solution for high definition signal transmission via category cables.
This 4K solution leverages 10 Gb Ethernet switches and enables signal management of 4K@60 (4:4:4) signals with zero frame latency. USB HID class is also supported for KVM extension application. Additionally, via the NJR-P01UC, the NJR-CTB can be controlled using an IR cable (IR-P01-R) and recommended remote controller. The NJR-P01UC features LAN/RS-232C bidirectional communication.
The NJR-P01UC can be powered from PoE-supported 10 GbE switch over a Category cable; this feature eliminates the need for AC adapter.
Close
Specifications [PDF]
Videos
NJR-P01U Series
1:47
IP-NINJAR: 160x160 AV over IP Connection Test
1:40
Close

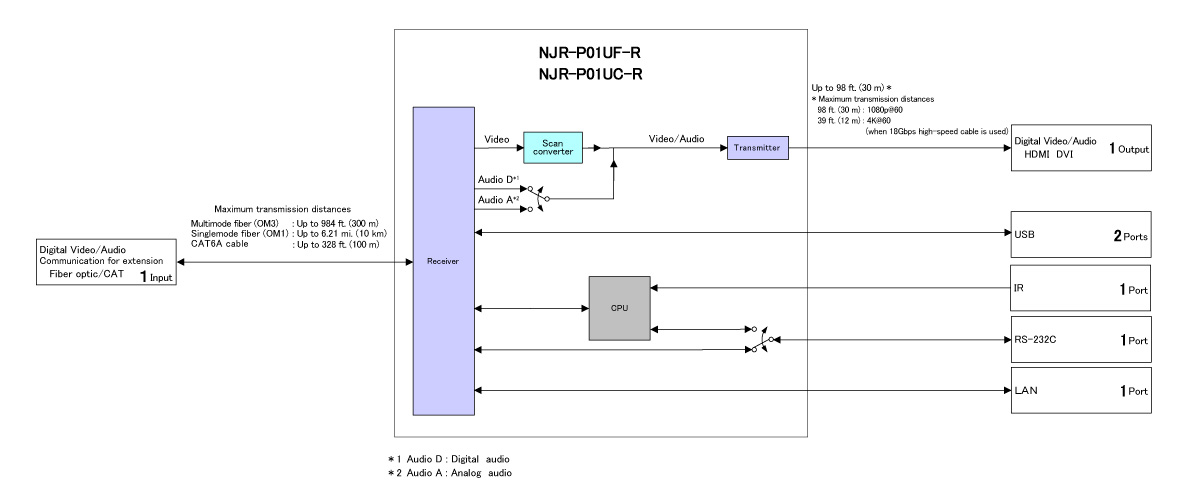

Diagrams
